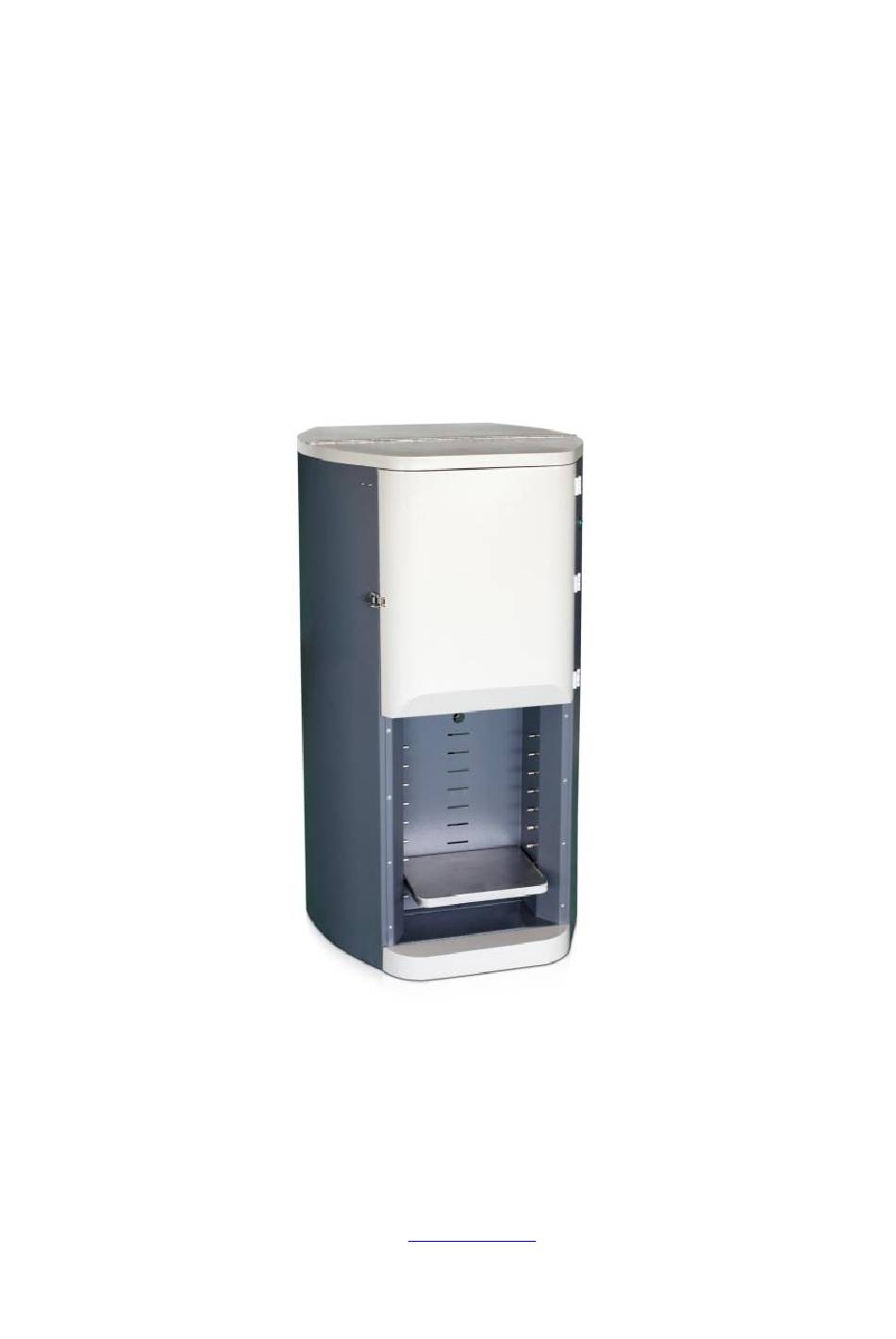

AUTOMATIC PAINT DISPENSER
USER MANUAL
Foshan YiJiu Paint Tinting Equipment Co., Ltd
Add：B2,Shizhou Section, Baichen Rd.,Guangbei Industrial Park,Chencun Town,Shunde Dist.,Foshan
City, Guangdong Prov.,China. Zip528313
Tel
: +86-757-22173297
Email:sales@fsyijiu.com
Web:
www.fsyijiu.com
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the YJ-1A-16D and is the answer not in the manual?

Questions and answers

Summary of Contents for Foshan YiJiu Paint Tinting Equipment YJ-1A-16D

  • Page 1 AUTOMATIC PAINT DISPENSER USER MANUAL Foshan YiJiu Paint Tinting Equipment Co., Ltd Add：B2,Shizhou Section, Baichen Rd.,Guangbei Industrial Park,Chencun Town,Shunde Dist.,Foshan City, Guangdong Prov.,China. Zip528313 : +86-757-22173297 Email:sales@fsyijiu.com Web: www.fsyijiu.com...

  • Page 2: Table Of Contents

    CONTENTS Page No. 1. USER MANUAL INTRODUCTION...............3 2. TECHNICAL SPECIFICATIONS .................3 3. TERMS OF WARRANTY ..................3 4. SAFETY INSTRUCTIONS ..................4 5. DISPENSER MACHINE INSTALLATION.............5 6. DRIVER 50 SOFTWARE INSTALLATION............7 7. USB DRIVER INSTALLATION................9 8. GUIDE TO USE DRIVER 50 SOFTWARE............11 (1)Function Introduction..................11 (2)Software Operation Instruction................12 ①Dispensing....................12...

  • Page 3: User Manual Introduction

    1. USER MANUAL INTRODUCTION Purpose and use of this manual Automatic paint dispenser, Model: YJ-1A-16D The manual provides instructions on the routine maintenance needed to uphold the machines performance over time. It is aimed at the machine operators and installers, who must have the necessary training and professional skill to use similar automatic machines.

  • Page 4: Safety Instructions

    4. SAFETY INSTRUCTIONS Please read the instructions carefully before installing and operating the machine, as a personal safety measure as well as to avoid needless damage to the machine. We declines any responsibility should be following instructions not be followed: Place the machine on a steady, horizontal surface by using a level.

  • Page 5: Dispenser Machine Installation

    5. DISPENSER MACHINE INSTALLATION Please read the instructions carefully before installing the machine Only qualified or appropriately trained personnel are authorized to install the machine. Conditions for proper installation Install an electrical power line in accordance with the voltage and frequency required ...
  • Page 6 Monitor power plug: connect it to the monitor PC power plug: connect it to the PC Power plug USB cable: Connect it to one of the USB sockets on the PC. Starting the dispenser 1).Connect the power cables of the dispenser machine to a wall socket then trun on the dispenser machine and the PC.

  • Page 7: Driver 50 Software Installation

    Cautions: Pull the stainless steel to support the top cover as this photo show when you need to open the top cover. 6. DRIVER 50 SOFTWARE INSTALLATION Note: Please exit the anti-virus software,because some anti-virus recognize it as virus. 1). Decompress"Driver 50 setup.rar", you can see “setup.exe”,double click to install. Click “next”...
  • Page 8 3).Enter the name and company name, click “next” button. 4).Input the install path, click “next” button. 5).Select and click “next” button.

  • Page 9: Usb Driver Installation

    6) Click “next” button. 7). Click “finish” button. Now you will see a shortcut icon on your desktop .It means that the driver software is successfully installed in your computer. You can run the driver software by double clicking on the desktop icon.
  • Page 10 2). Double click , you will enter below interface: Click “INSTALL” botton. 3).Click “OK”.

  • Page 11: Guide To Use Driver 50 Software

    8. GUIDE TO USE DRIVER 50 SOFTWARE (1) Function Introduction Driver 50 is a user Software Package developed for our range of Automatic Paint Dispenesr machines. The package will assist the user in carrying out the following operations: Dispensing: Read the data from formula software and start dispensing; ...

  • Page 12: Software Operation Instruction

    show below interface, please check the electrical power and the USB COM accordingly. Press "Confirm"or"Run offline",you will see the main menu as below picture. The driver software will enter the dispensing interface automatically if you don't click on any button for 10 seconds. (2)Software Operation Instruction.
  • Page 13 "Product code":Click the dropdown arrow to choose product code. "Packaging spec.":Click the dropdown arrow to choose specification of package. "Choose achromatic rate":Click the dropdown arrow to choose achromatic rate. "Color card color code":Click the dropdown arrow to choose color code of color card. "Canister quantity":input or choose the canister quantity you want to dispend for one color.
  • Page 14 Click "Formula management",you will see below interface. In this interface you can create formula or delete formula. NOTICE: Base paint name can't be the same as colorant name,otherwise you created formula can't be saved. "Add formula":You can create formulas by yourself in this area. "Product code":Please input the product code of your formula into the corresponding box.
  • Page 15 In this interface you can choose you wanted color. Click “Setting packaging specification”you will see below interface. You can create or delete packaging specification here. "Existing packaging specification":Existing packaging specification at present. "Spec":Packaging specification of base paint. "Coefficient":Multiple of the color formula data. "Cost":Cost of base paint.
  • Page 16 "Coefficient":Input coefficient into the corresponding box. "Cost":Input cost of base paint into the corresponding box. "Save":Save you created packaging specification. "Return":Return to dispensing interface. "Margin on the base":input the margin on base paint. "Margin on colorant":input the margin on colorant. "VAT":input the vat Colorant quantity is bound up with the package setting.
  • Page 17 "Title":Base paint name. "Coefficient": Multiple of the color formula data "Select delete record,then press delete":Choose the record what you want to delete from the list first,then press "Delete"key on the keyboard. "Achromatic rate":Input the base paint name into the corresponding box. "Coefficient":Input the coefficient into the corresponding box.

  • Page 18: ②Manual Dispensing

    NOTICE: 1.Except choosing "Dispenser"in "Debug"interface, other protocols need to cooperate with color software to implement the automatic dispenser. 2..Except choosing "Dispenser"in "Debug"interface, all the information of this interface is automatically collected from the data you choose from color software. If driver program can't find relevant colorant name from "Colorant Management" as per the formula,note message will be as below.

  • Page 19: ③Colorant Management

    You can choose from the dropdown list which colorant you want to dispense. "Discharge amount(ml)": You can input the amount for each colorant you choose here. "Discharge colorant": After the above rows are filled, press on "Discharge colorant" button, and then the machine will start to dispense and discharge following your formula. ③Colorant management The user specifies the colors which will be filled in each canister.
  • Page 20 "Colorant name":It shows the name of colorant. "Colorant density":It shows the density of colorant. "Colorant cost":It shows the cost of colorant. "Canister volume":It shows the volume of canister in ML. "Remain":It shows the remain amount in ML. "Minimum remaining amount":It shows must remained amount of colorant. "Colorant color":It shows the color of colorant.
  • Page 21 You can choose color from"Basic colors" color shade list. If you wanted color isn't in basic colors interface,you can click on "Define Custom Colors" to search the color which is close to the objection color,then click "add to custom color" and "OK" Now the objection color will be Changed.

  • Page 22: ④Debug

    ④Debug Click "Debug"on main menu to enter below interface. "Mixing time setting":To set automatic stirring colorant time. "Segments":Press drop-down arrow to choose segment of stirring time.we arranged 16 segments to choose. "Hours":To setup stirring hours,and input into the blank. "Minutes":To setup stirring minutes,and input into the blank. "Save":Press this button setting data will be saved to database.
  • Page 23 "To write machine":Press this button,the machine will record your setting nozzle automatic cleaning interval,and clean the nozzle automatically according to it. NOTICE: "Nozzle cleaning time restoration": If press this button,the program will take record that all canisters never worked, the machine will not automatic cleaning nozzle unless canisters begin to work again.

  • Page 24: ⑤Pump Calibration

    ⑤Pump calibration Please learn below to see how to calibrate the pumps. Step 1: Press pump calibration. Step 2: Choose Pump No. Step 3: Choose calibrate data, for example, you choose “0.08ml”.
  • Page 25 Step 4: Input colorant density Step 5: -press “discharge colorant” button. Use a electronic scale to weigh the discharged colorant and input the weight into the blank of “The first weight” with two decimal (the unit is “g”, ) . -Press press “discharge colorant”...
  • Page 26 Step 6:Choose another calibrate data, for example “0.15ml”, then do as step 5. Step 7: Repeat step 6 by choosing 0.5ml/2ml/25ml/50ml. Then this pump you choose was finished calibrating. Step 8: If you want to calibrate another pump, choose the pump No. and then do as step 2 to 7. NOTES: Please kindly note that the machine is already calibrated before shipment.

  • Page 27: ⑥Presentation Management

    H=4MM pump body calculated the volume is 1.2936ml Our calculated coefficient (take 4 ml for example): 4(ml)/1.2936(ml)*400r=1236.86 But this coefficient is not so precise. Our calibrated theory(take 4 ml for example): new coefficient =4ml/actual weight of liquid* old coefficient So our calibrated coefficient(take 4 ml for example) = 4ml/actual weight of water * 1236.86(We calibrate the machine with water) Actually, the coefficient is pulse count.

  • Page 28: Update Data In Specified Files

    Steps for presentation management The default display language is English,but you can translate the English sentences in the first box into your local language,and input it into the second box,then press "Save",then press "Next",to translate next words. After translating all sentences,please exit the program,and restart the program,you will see the interface display your local language 9.

  • Page 29: ①Update Formula Data

     Update formula data Double click , you will enter below interface: Double click ,you will enter below interface: You can update the color formula in this form. Update the colorant data Double click , you will enter below interface:...
  • Page 30 Double click ,you will enter below interface: You can update the colorant data in this form Noted: “remain” means the remain amount (ml) of colorants in the canisters “no” means the colorant in the corresponding canister number “minimum” means minimum remain amount (ml) of colorants in the canisters you want.

  • Page 31: ③Translate The Software Display In Local Language

    Translate the software display in local language Double click , you will enter below interface: Double click ,you will enter below interface, write the languge which you want the software display in the “local” column corresponding to the English, then the software will display as per the “local”...

  • Page 32: Trouble Shooting

    10. TOUBLE SHOOTING Contact authorized service personal if the following measures do not remedy the problem. 1. Dispense inaccurate colorants Problem cause Solution 1. Didn’t evacuate before using Evacuate 2. Nozzle blocked Clean the nozzle or replace the nozzle 3. Calibration coefficient incorrect Recalibrate 4.
  • Page 33 5. The specified canister can not rotate to the discharge place. Problem cause Solution 1. Canister counting sensor problem Replace the canister counting sensor Replace the electromagnetic brake Electromagnetic brake problem 6. Stirring function can’t work Problem cause Solution 1. The stirring motor not work Check if there’s electricity of stirring motr 1).If yes, replace the motor.

  • Page 34: Component Details

    2. Main board broken Replace the main board 11. Pump rod go up automatically Problem cause Solution 2. Didn’t evacuate before using Evacuate 3. Nozzle blocked Clean or replace the nozzle 4. Valve blocked Clean or replace the valve 6. Piston pump leakage Replace the piston pump 11.Component details Remark: computer, keyboard, mouse are not in scope of supply.
  • Page 35 Elevator Elevator motor Origin of canister detector Canister counting sensor Valve motor Canister counting sensor Upper limit detector of elevator Left limit detector of valve Elevator Pump rod detector Pump rod detector Open and close valve paddle Lower limit detector of elevator Right limit detector of valve...
  • Page 36 Nozzles Rolling brush Valve handle Pump rod detector Piston pumps Main switch and Nozzles Power supplier plug USB cable plug Stirring motor Rotating motor...
