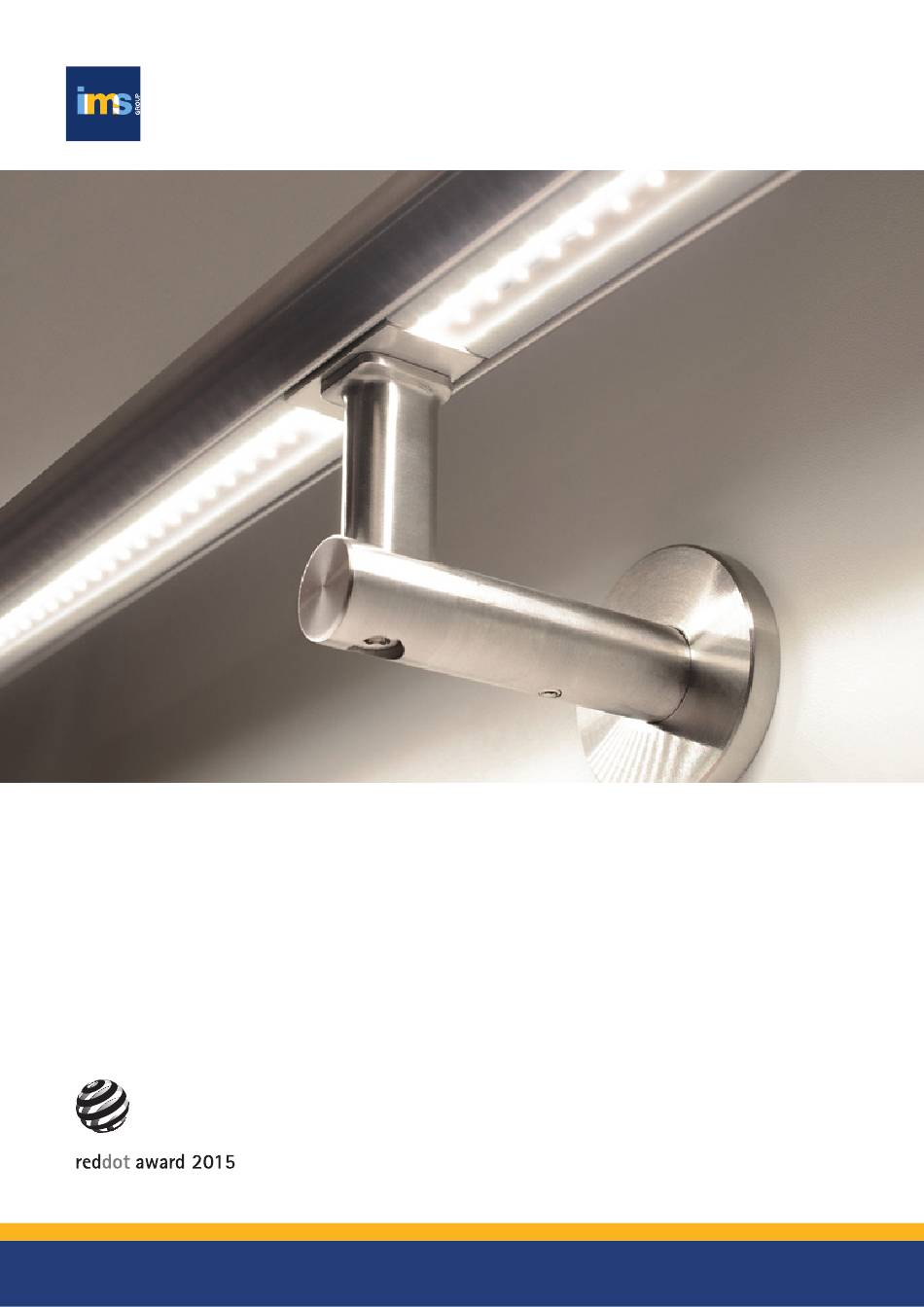

- Page 1 Nederland INSTALLATION GUIDE SB-LED Indoor winner WWW.SB-RAILING.COM...
- Page 2 V1.0-2015...
-
Page 3: Table Of Contents
Fitting handrail brackets or banister adapters 4.4.1 Fitting handrail brackets 4.4.2 Fitting banister adapters Finishing 4.5.1 Fitting an end cap 4.5.2 Fitting a plastic transition profile 4.5.3 Fitting the cover cap Maintenance The environment and disposal Warranty and disclaimer SB-LED | Indoor WWW.SB-RAILING.COM... -
Page 4: Introduction
SB-LED handrails are intended to be used as illuminated stair handrails and banisters for indoor areas. They have built- in LED lighting to illuminate the floor or ground for the user. Any use other than the use described above is regarded as improper use. -
Page 5: Symbols Used In This Guide
Risk of damage to the product. “Caution” means that the product may be damaged if the user does not carefully follow the procedures. Note NOTE This is a comment with supplementary information for the user. A comment draws the user’s attention to potential problems. SB-LED | Indoor WWW.SB-RAILING.COM... -
Page 6: Precautions And Safety Instructions
2 PRECAUTIONS AND SAFETY INSTRUCTIONS General The manufacturer considers it extremely important that the product is used and maintained in a NOTE manner that puts the safety of users first. To ensure safety and reliable use, proceed as follows. ƒ... -
Page 7: Technical Specifications
ƒ Torx 20 screwdriver ƒ No. 2 and no. 3 screwdrivers ƒ Wire cutter/stripper ƒ Anaerobic adhesive suitable for stainless steel ƒ Degreaser ƒ Brazing equipment (for brazing work on site) ƒ SB-LED LED roller ƒ LED strip nipper SB-LED | Indoor WWW.SB-RAILING.COM... -
Page 8: Main Components
Name: Plastic transition profile Name: Plastic cover cap 42 Material: PC Material: PC-ABS - liniLED® Top Deco for SB-LED to round tube 42.4mm Item no. 7642.900.424 transp. Item no. 7611.503.000 Material: ABS - liniLED® Top Power Item no. 7642.920.424 matte Item no. -
Page 9: Installation
Determine whether any expansion joints are present in the wall or the underlying surface. To avoid stress on the liniLED® LED strip and possible damage, the handrail must end where an expansion joint is present. SB-LED | Indoor WWW.SB-RAILING.COM... - Page 10 Cut the stainless steel handrail to the right length. If you are joining three or more handrail sections, Intermediate handrail section you have intermediate handrail sections. Go to step 4. If you do not have any intermediate handrail sections, skip step 4 and go to section 4.2. To allow handrail brackets to be fitted in the profile later on, you have to make room for them in the intermediate handrail section.
- Page 11 It is not possible to clip a handrail bracket here later on, since the aluminum profile NOTE is missing at this point. C. Put the aluminum mounting profile back in place and screw it tight. SB-LED | Indoor WWW.SB-RAILING.COM...
-
Page 12: Joining Handrail Sections
JOINING HANDRAIL SECTIONS There are two ways to join handrail sections: with glue or by brazing them together. 4.2.1 Gluing Apply the glue to the contact surfaces of the coupling. Insert the handrail coupling into the handrail you want to extend. Then slide the other handrail section over the coupling. -
Page 13: Brazing
Then slide the other handrail section over the coupling. Braze the parts together. If expansion joints are present, ƒ go to section 4.2.3. If no expansion joints are present, ƒ go to section 4.3.1. SB-LED | Indoor WWW.SB-RAILING.COM... -
Page 14: Expansion Joint
4.2.3 Expansion joint Always take the following precaution with an expansion joint to avoid damage to the liniLED® LED strip. This applies to both glued and brazed handrails. The handrail can be joined using a coupling with one loose joint (steps 1 and 2), or it can be terminated with an end cap (step 3). -
Page 15: Installing The Liniled® Led Strip
Carefully press the liniLED® LED strip into the aluminum profile. Start at the point where you placed the connector. Tip: Use the SB-LED LED roller. NOTE There is a limit to the length of the liniLED® LED strip that can fitted in one piece. - Page 16 Cut the liniLED® LED strip. Insert an end plug in the cavity of the liniLED® LED strip and press the end of the LED strip into the aluminum mounting profile. Do you have other handrails where you want to install liniLED® LED strip? Repeat steps 1 to 5.
-
Page 17: Fitting Handrail Brackets Or Banister Adapters
Remove the clip from the handrail bracket. Slide the clip of the handrail bracket over the aluminum profile. You can do this at the end of the handrail or at the previously made cutout. Slide the clip to the desired position. SB-LED | Indoor WWW.SB-RAILING.COM... - Page 18 Are you fitting a handrail bracket for wire feedthrough? If yes, go to step 4. If no, skip step 4. First pull the wires through the clip, and then pull them through the hollow sections of the handrail bracket. 24V DC 24V DC Using a 5mm allen wrench, turn the socket-head screw of the handrail bracket clockwise to secure the bracket on the aluminum profile.
-
Page 19: Fitting Banister Adapters
You can do this at the end of the handrail or at the previously made cutout. Slide the clip to the desired position. Is the banister adapter for feedthrough to your power point? If yes, go to step 3. If no, go to step 4. SB-LED | Indoor WWW.SB-RAILING.COM... - Page 20 Before tightening the banister adapter, make sure that it can be positioned at the correct angle. If the SB-LED handrail is mounted at a angle, rotate the handrail bracket. To do this, loosen the socket-head screw (1) by turning it counterclockwise. Rotate the clip (2) and then retighten the socket-head screw (clockwise).
-
Page 21: Finishing
4.5.1 Fitting an end cap NOTE First degrease the contact surface of the end cap. Coat the contact surface (A) of the end cap with glue. Fit the end cap in the end of the handrail. SB-LED | Indoor WWW.SB-RAILING.COM... -
Page 22: Fitting A Plastic Transition Profile
4.5.2 Fitting a plastic transition profile You can use a plastic transition profile to finish the joint between the SB-LED handrail and a round tube. Press the transition profile onto the aluminum profile. It clicks in place. 4.5.3 Fitting the cover cap The cover cap finishes and secures the liniLED®... -
Page 23: Maintenance
ƒ SB-Railing cannot be held responsible for any loss or damage caused by improper use or misuse. ƒ Subject to change without prior notice. Visit www.illunox.com for the latest version of the guide. ƒ No rights can be derived from this guide. SB-LED | Indoor WWW.SB-RAILING.COM... - Page 24 For more information please check our website: WWW.SB-RAILING.NL Nederland Gildenweg 21, NL-3334 KC ZWIJNDRECHT T: +31 78 6230600 F: +31 78 6101030 info@sb-railing.nl WWW.SB-RAILING.COM...
