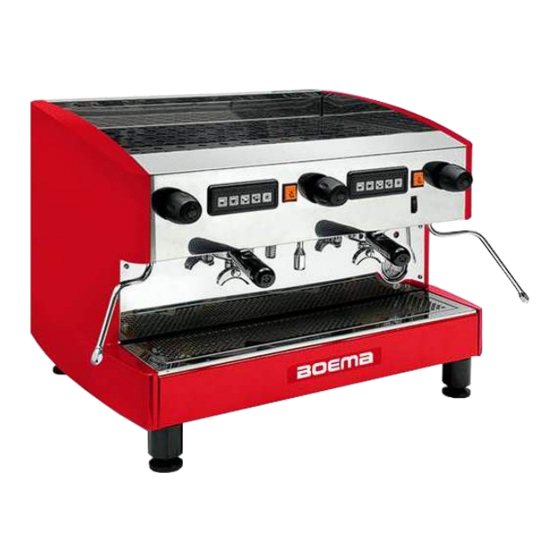

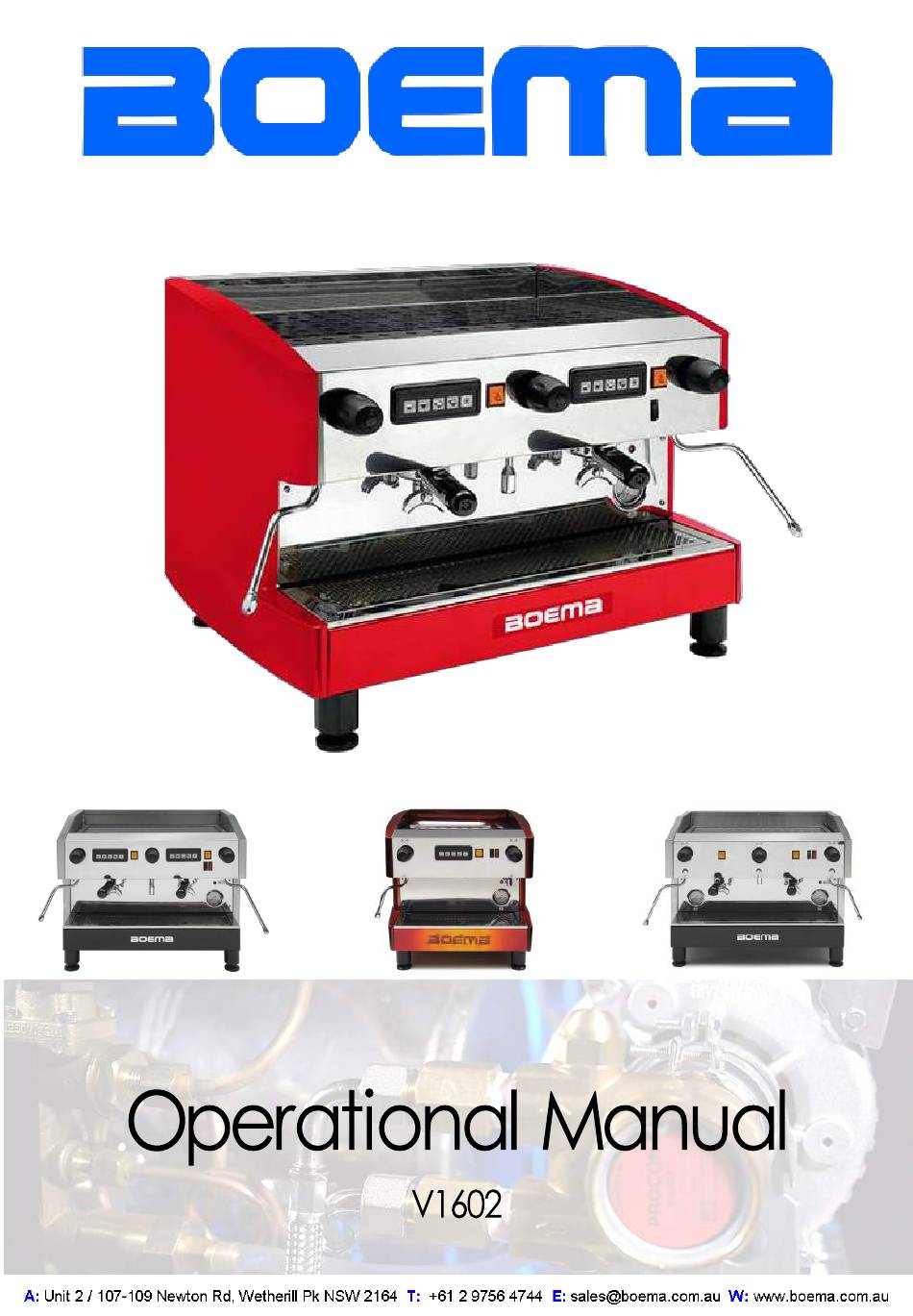

Summary of Contents for Boema Caffe Series
-
Page 3: Table Of Contents
Contents Diagram ..............................2 Installation .............................. 3 Checklist – prior to installation of espresso machine ................3 Installation Instructions ........................4 Volumetric Touch Pad ........................... 5 Pre-Infusion Set-up ..........................5 Pre-Infusion removal ........................... 5 Touch Pad Operation .......................... 6 Daily care of espresso coffee machines ..................... 7 Start of the day ............................ -
Page 4: Diagram
Diagram Page 2... -
Page 5: Installation
350 KPA Pressure Limiting valve be fitted in line by your plumber with a half inch male fitting. Your warranty requires you to fit the appropriate water filter to suit your local conditions. Boema has a complete range of water filters to suit all conditions. The supplied filter may not be suitable in regional areas. -
Page 6: Installation Instructions
Installation Instructions 1. Check that the mains water pressure does not exceed 450Kpa. (65psi). If the pressure is too high, fit a pressure reducing valve to the water inlet before the water filter (a 350kpa Pressure Limiting Valve is recommended). 2. -
Page 7: Volumetric Touch Pad
Volumetric Touch Pad Please ensure you have read the General Care Instructions first Pre-infusion is when a jet of water is first sprayed onto your ground coffee prior to commencement of the main brewing cycle. The objective is to enhance the flavour of the brew. As the experts advise, there is also a minimum and maximum brewing time to optimise your flavour. -
Page 8: Touch Pad Operation
Touch Pad Operation Boema machines are delivered with programmed deliveries for Short Black, Long Black, Two Short Blacks and Two Long Blacks. Delivery commences once you press the desired button for your selection and will automatically stop once the programmed level has been achieved. Should you wish to halt delivery prior to full delivery from the programmed cycle, simply press the same selection button again. -
Page 9: Daily Care Of Espresso Coffee Machines
2. The group seals should be clean at all times. If necessary clean with soft brush or cloth to ensure proper sealing 3. Cleaning internals of Group Head should be done with Mr. Boema – Refer to Group Maintenance. -
Page 10: Cleaning & Maintenance Procedure
Back-washing and Cleaning Using the Blind Filter (EK642.1B) Remove existing filter and replace it with the blind filter, then add ½ teaspoon of Mr. Boema. Proceed to activate the cleaning cycle as follows: Boema Deluxe/Caffe - Volumetric (black/silver touch pads) 1. -
Page 11: Shower Removal
3. Thoroughly clean the shower using steel wool. All holes in the shower should be clean for best results 4. For stubborn stains, soak the shower in Mr. Boema for 15 minutes then scour to remove the stains. Alternatively, you may need to purchase new showers and replace. -
Page 12: General Servicing - Recommended Every 6 Months
Cleaning Procedure 7. Flush the hot water out of the boiler through the hot water spout 8. Replace the vacuum valve 9. Check all pipe connections for leaks Boema highly recommends having your machine serviced every 6 months. Page 10... -
Page 13: Service Kits
Cup washer for group head EG600-1N1 O-ring 3-way Solenoid Code: BOE.101.1 BOE.101.2 BOE.101.3 We recommend the following optional extras Mr Boema Espresso Cleaner 1kg EK650-2A Mr Boema Espresso Cleaner 500g EK650-1A AX5 Cartridge - Triple Action System F-AX5-TSR Page 11... -
Page 14: Machine Warranty
………………………………………. MODEL: Espresso Machines Australia Pty Limited, ABN 98 169 764 952, T/as Boema, warrants this product to be free from defects in materials and workmanship under normal use and condition. If within 12 months of purchase date, any part which our examination shows to be defective, will be... - Page 15 Parts warranty: Parts are covered by Boema for 12 months limited warranty from date of purchase, and exclude the following:- Seals and O rings Showers and filter baskets Water filter cartridges Parts damaged or failing as a result of inadequate or lack of water filtration, and / or operator...
-
Page 16: Contents Checklist
Please ensure the below items have been delivered with your machine prior to installation Quantity Description Code 1 Group 2 Group 3 Group Mr. Boema EK650-1A Group Handle (single) EK630-3A Group Handle (double) EK630-4A Blind Filter EK642-1B AX5 Water Filter... -
Page 17: Technical Specifications
Technical Specifications Basic Configuration 1 Group 2 Group 3 Group Group Head Hot Water Spout Steam Wand Group Handles Boiler tank 9.5L Connections 10 Amp Power Point, 240 Volt, 50/60 HZ 1 Group 2400 Watts, Cold water 3/8 female fitting 15 Amp Power Point, 240 Volt, 50/60 HZ 2 Group 3600 Watts, Cold water 3/8 female fitting... - Page 19 Notes: Boema Coffee Machines A: 107 - 109 Newton Rd, Wetherill Park | T: 02 9756 4744 | F: 02 9756 3989 | E: sales@boema.com.au...
- Page 20 Espresso Machines Automatic Machines Vending Machines Grinders Service & Support Coffee, tea, chai etc. Barista Training Accessories Water filters...
Need help?
Do you have a question about the Caffe Series and is the answer not in the manual?
Questions and answers
Machine running coffee through really slow
The Boema Caffe Series coffee machine may be running coffee through slowly due to oil build-up in the machine, particularly in the group heads. Coffee contains oils that remain in the machine after heating, and if not cleaned regularly through backwashing, these oils can clog components and affect flow. Regular cleaning is required to maintain proper operation.
