Varga Model VA 10
3.
2.

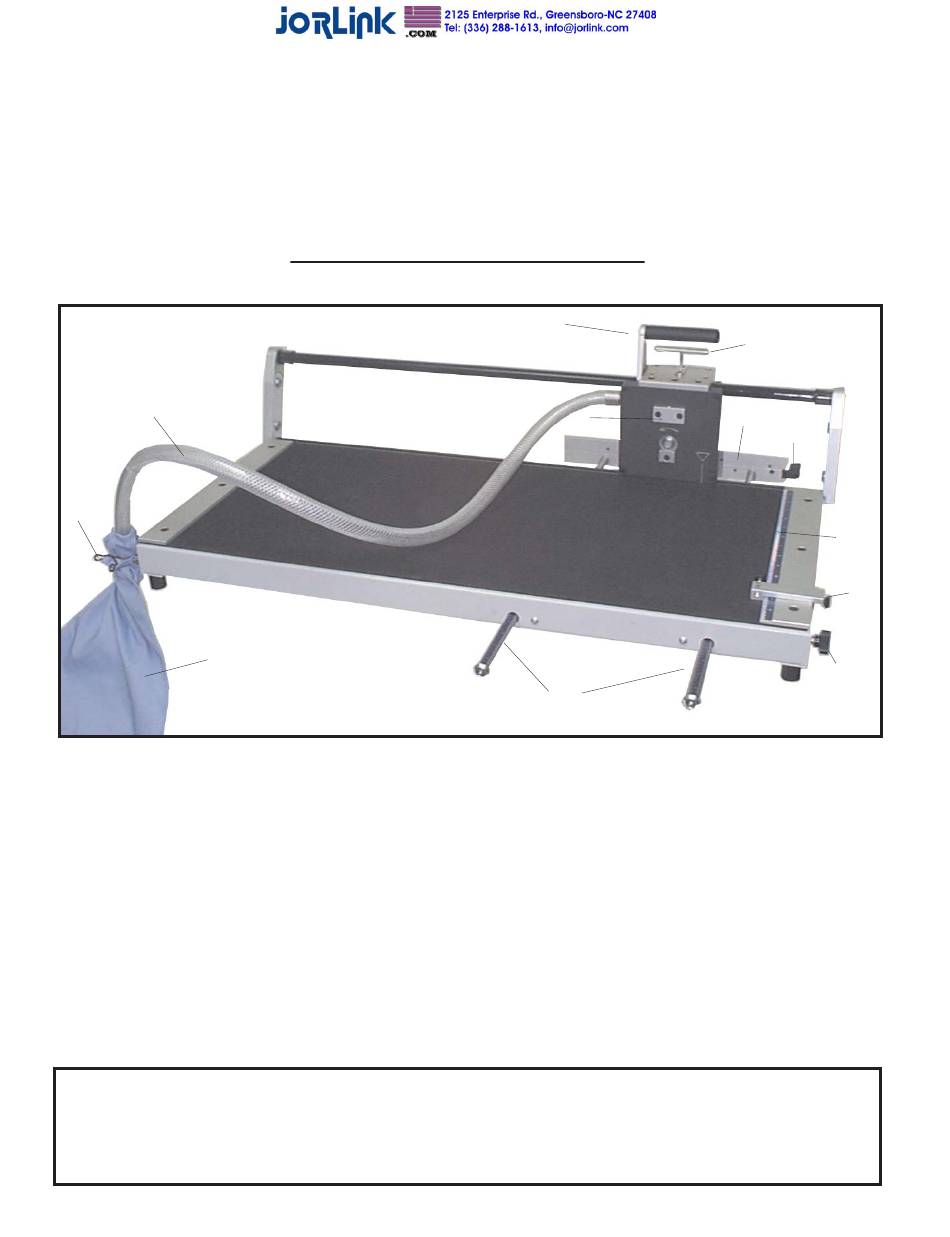

1. Chip collection bag with velcro at the bottom for emptying chips.
2. Spring clip for holding the chip collection bag in place.
3. Chip collection delivery hose.
4. Main saw handle.
5. "T" handle for lifting saw casing.
6. Back stop guide for repetitive cuts of the same size (as measured from the back of the blade).
7. Back stop guide actuating lever.
8. Table top measuring scale (as measured from the front of the blade).
9. Optional stop guide for the table top measuring scale (Part number VA 5).
10. Locking knob for back stop guide.
11. Measuring scale for back stop guide.
12. Holding bracket for optional drip lubricating bottle

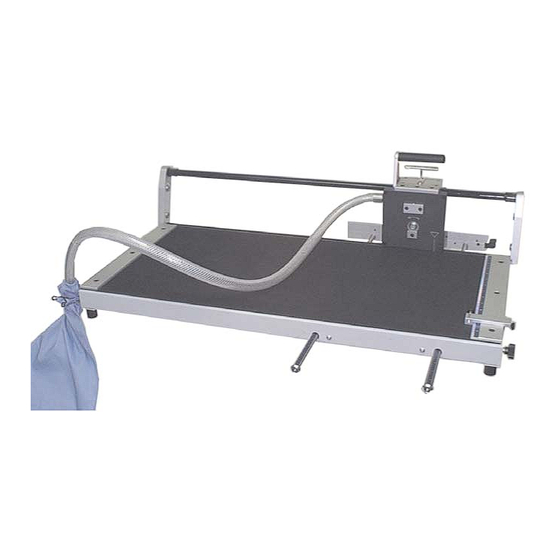

The Varga VA 10 is perfect for cutting standard plastic engraving stock, laser
engraving material, all types of plastics, non-ferrous metals (aluminum &
brass), wood, rubber, felt, cardboard and more. Not for use on steel, materials
containing steel, or magnetic materials.
Distributed & Supported by:
Circular Saw
"With Safety in Mind!"
Operating Instructions
1.
TM
Jorlink USA, Inc. | Tel: (336) 288-1613
4.
12.
11.
support@jorlink.com | www.JORLINK.com
5.
6.
7.
8.
9.
10.
Advertisement
Table of Contents
Summary of Contents for Jorlink Varga VA 10
- Page 1 11. Measuring scale for back stop guide. 12. Holding bracket for optional drip lubricating bottle The Varga VA 10 is perfect for cutting standard plastic engraving stock, laser engraving material, all types of plastics, non-ferrous metals (aluminum & brass), wood, rubber, felt, cardboard and more. Not for use on steel, materials containing steel, or magnetic materials.
- Page 2 (not for use on steel, or magnetic material). The Varga VA 10 requires very little assembly, is pre-aligned, and is extremely easy to use. The safety features incorporated in this equipment make it one of the most “worry free” machines on the market, and while it is very important to follow all standard safety procedures during operation, it was truly designed with safety in mind.
- Page 3 Prior to attempting to make a cut, turn on the motor to make sure that it is receiving power and running smoothly. Distributed & Supported by: Jorlink USA, Inc. | Tel: (336) 288-1613 support@jorlink.com | www.JORLINK.com...
- Page 4 Operating Procedures: Basic Operation: Operation of the Varga VA 10 is very straight forward, as follows: Face the right side of the saw (the side where the 13 ½ inch measuring scale is found). The palm of the operator’s right hand will rest on the main handle on the saw motor block, and the fingers of the right hand will grasp the “T-handle”...
- Page 5 Measuring Procedures: The Varga VA 10 has two different methods available for measuring the material to be cut in order to obtain the desired size, the primary measuring scale, located on the top of the right side rail, and the back material stop guide, which has measuring scales located on each of the two rods which extend out of the front of the saw table.
- Page 6 Have dull blades resharpened by an expert. Your dealer can advise you on blade resharpening. A reserve saw blade is recommended so that Distributed & Supported by: Jorlink USA, Inc. | Tel: (336) 288-1613 support@jorlink.com | www.JORLINK.com...
- Page 7 VARGOL special lubricant – ½ Liter Bottle Warranty: The Varga Model VA 10 is warranted for one year from date of purchase against Manufacturer’s defects in material or workmanship. Distributed & Supported by: Jorlink USA, Inc. | Tel: (336) 288-1613 support@jorlink.com | www.JORLINK.com...
