Yaesu LDX-60 Instruction Manual

Auto label dispenser
Hide thumbs

Advertisement

Table of Contents

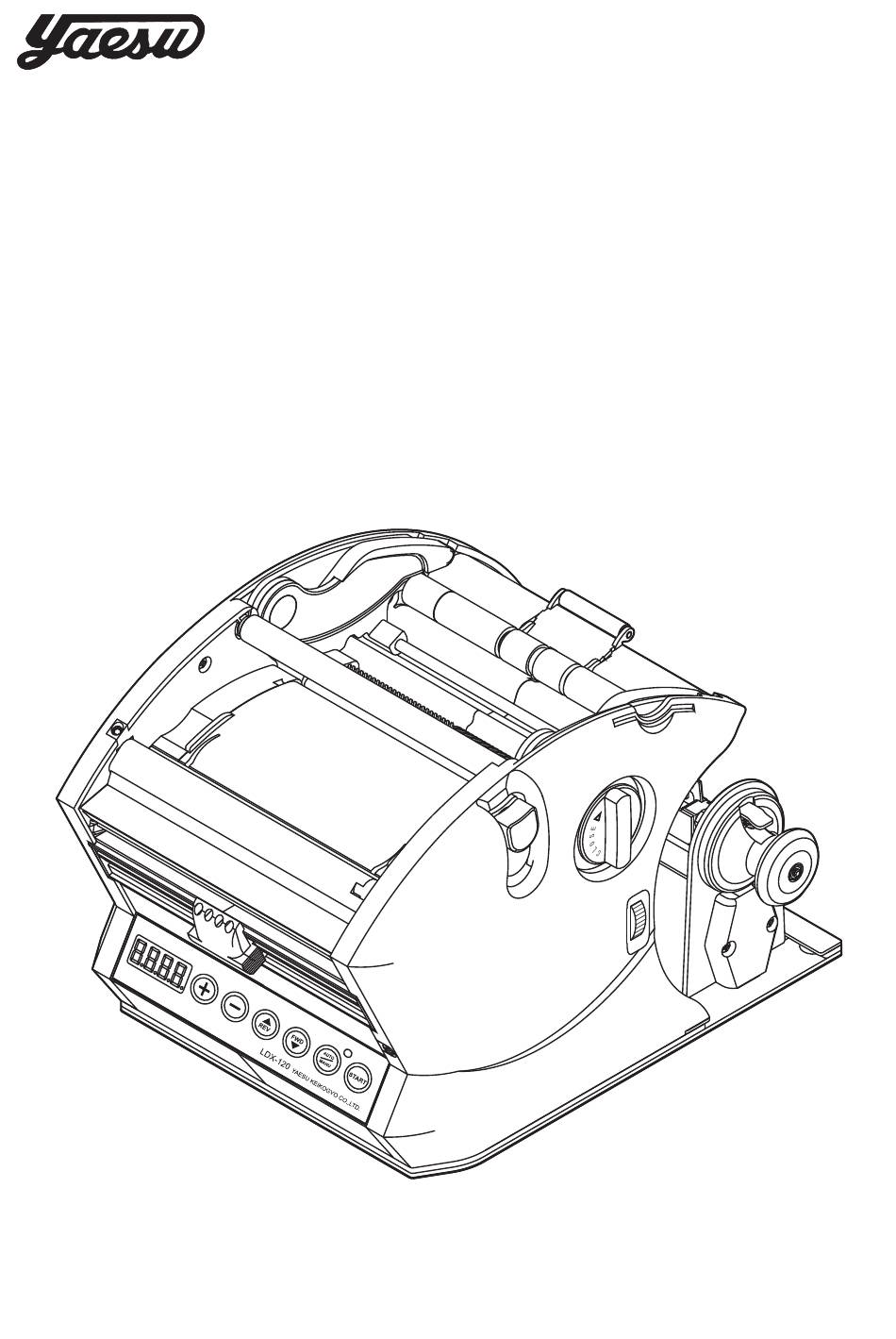

AUTO LABEL DISPENSER
LDX-60,120,180
INSTRUCTION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LDX-60 and is the answer not in the manual?

Questions and answers

Summary of Contents for Yaesu LDX-60

  • Page 1 AUTO LABEL DISPENSER LDX-60,120,180 INSTRUCTION MANUAL...

  • Page 2: Table Of Contents

    This LDX series are designed for more compact and effective in all labels installed easily. Please make your choice from 3 types of Label dispensers. Those 3 types with LDX-60, LDX-120, LDX-180 are the common of operating procedure. Please read this instruction very carefully in order to use this machine properly.

  • Page 3: Safety Instructions

    Safety Instructions The safety guidelines in this Instruction Manual must be observed in order to prevent damage to the machine or injury to the operator or other persons. The safety guidelines presciribed "Warning " and "Caution" describe possible injury or damage that may be suffered from operating or maintaining the machine in a manner other than as described in this Instruction Manual.
  • Page 4 Warning Do not plug in, unplug the cord, or operate the machine with wet hands. Failure to observe this may result in injury due to electric shock. Never insert your finger, or any other body part, or any foreign object into the machine. Failure to observe this may result in injury.

  • Page 5: Identification Of Parts

    Identification of Parts Slit Power Switch Backing Paper Release Bar Tension Adjust Button Power Switch AC Cord Power Plug Label Holder Tension Hexagonal Adjust Dial Spanner Ground Cord Label Holder Front Support Roller Label Hold Internal Wing Rear Support Roller Label Hold External Wing Label Holder Support Lock Release Lever...
  • Page 6 Label Set (Procedure for each function/Lmode) Please refer to the illusutration on the page 7 when label setting. ■Prepare the label roll that is no labels on the fiast portion of 30cm. ■Make sure whether switch is off. (illustration 1) ■Plug in and connect cord.

  • Page 7: P6-7 Label Set

    Label Set Take the position of Label Hold ① Feed the label Wing properly ⑤ AC100V Make sure that Backing Paper Release Bar rotates and works Earth Terminal properly ② Make sure that label has been remove ⑨ Repeat pressing longer time Insert the point of label into ③...

  • Page 8: P8-9 Mode Setting

    Mode Setting Display for 4 different kinds of the following modes will be changed Set L-mode automatically when pressing START BUTTON until it sounds peep Press Start Button longer L Mode (Label setting Mode) Indicate L Display L on the left side and 3 digits will be displayed Feed label and set ■Make sure that there is no label on the sensor.
  • Page 9 Mode Setting F Mode F Mode (Motor Speed setting Mode) Set F-mode In order to improve the accuracy of label dispensing position, feeding speed Press Start Button longer adjusting automatically is programmed. When F mode is setting lower than 29, feeding speed will be automatically set between 50 and 90.

  • Page 10: How To Remove Backing Paper Completed

    Mode Setting Auto/Manual Mode The light of LED will turn on and off repeatedly every time pressing Auto/Manual button. Auto Mode (LED Lighting) Auto Mode ■Press Auto/Manual BUTTON and keep LED lighting. ・When it remains a label on the sensor, another label will come LED lighting automatically on the sensor after taking the label.

  • Page 11: How To Replace New Label Roll

    How to Replace New Label Roll Please replace new label roll as follows. Feed the backing When you take the last label on the sensor with setting Auto Mode, Feed paper Roller will stop and LED will be flashing. Wind backing paper Feed Roller will stop after few second when it is no label on the sensor.

  • Page 12: Other Functions

    Other functions As depends on the terms of use condition and what kind of label you use, additional adjustments will be necessary as follows. In the case that label (backing paper) setting slants (illustration 1) ■Make some adjustments with Label Holder. ・If label slants in left side, tighten the screw.

  • Page 13: Maintenance

    Maintenance ■Cleaning for the machime Wipe the machine with some kind of the cloth permeates some natural detergent drop in the water. ■In the area of the sensor ・Sensor will not detect the label if obstructs the orifice of the sensor. ・Wipe the lens of the sensor with some kind of cotton stick if dirties in the orifice of the sensor.
  • Page 14 Motor Speed Setting, and sensor angle. If you still have any problems even though you check the detail as mentioned above, please contact your distributer or our company. Specification LDX-60 LDX-120 LDX-180 Model No. 100VAC, 120VAC, 220-240VAC　　50/60Hｚ...

  • Page 15: Warranty

    Warranty We warrant to the original purchaser of the product that will be free form defects in material or workmanship for as long as the original purchaser owns the product, when given normal wear and proper usage. The limited warranty for the machine shall be for a period of 180 days form the date of purchase.
  • Page 16 YAESU KEIKOGYO CO., LTD. 39-8, Senju Motomachi, Adachi-Ku, Tokyo, 120-0041, Japan Phone 81-3-3888-8751 81-3-3888-1592 http://www.yaesu1965.com 12F05...

This manual is also suitable for:

Ldx-120Ldx-180
