TOOLS NEEDED
Tape measure
Level
Large hammer drill with 1.00" masonry bit, 14" min. length
Socket wrench with 9/16", 1 1/8" sockets.
Box wrenches 9/16", 1 1/8"
Hex wrench 7/32"
Torque wrench with 5/8" hex wrench, 128 ft.-lbs. ( 174 Nm )
capacity
Inclinometer
Fork lift
Simpson AT-XP high-strength acrylic adhesive
Silicone caulk
Stratus Shelter - Bike Shelter
SKU:554br
51
5
RECOMMENDED BASE MATERIAL
See footing diagram on following page.
The install surface needs
to be level or near level.
Advertisement
Summary of Contents for DERO Stratus Shelter

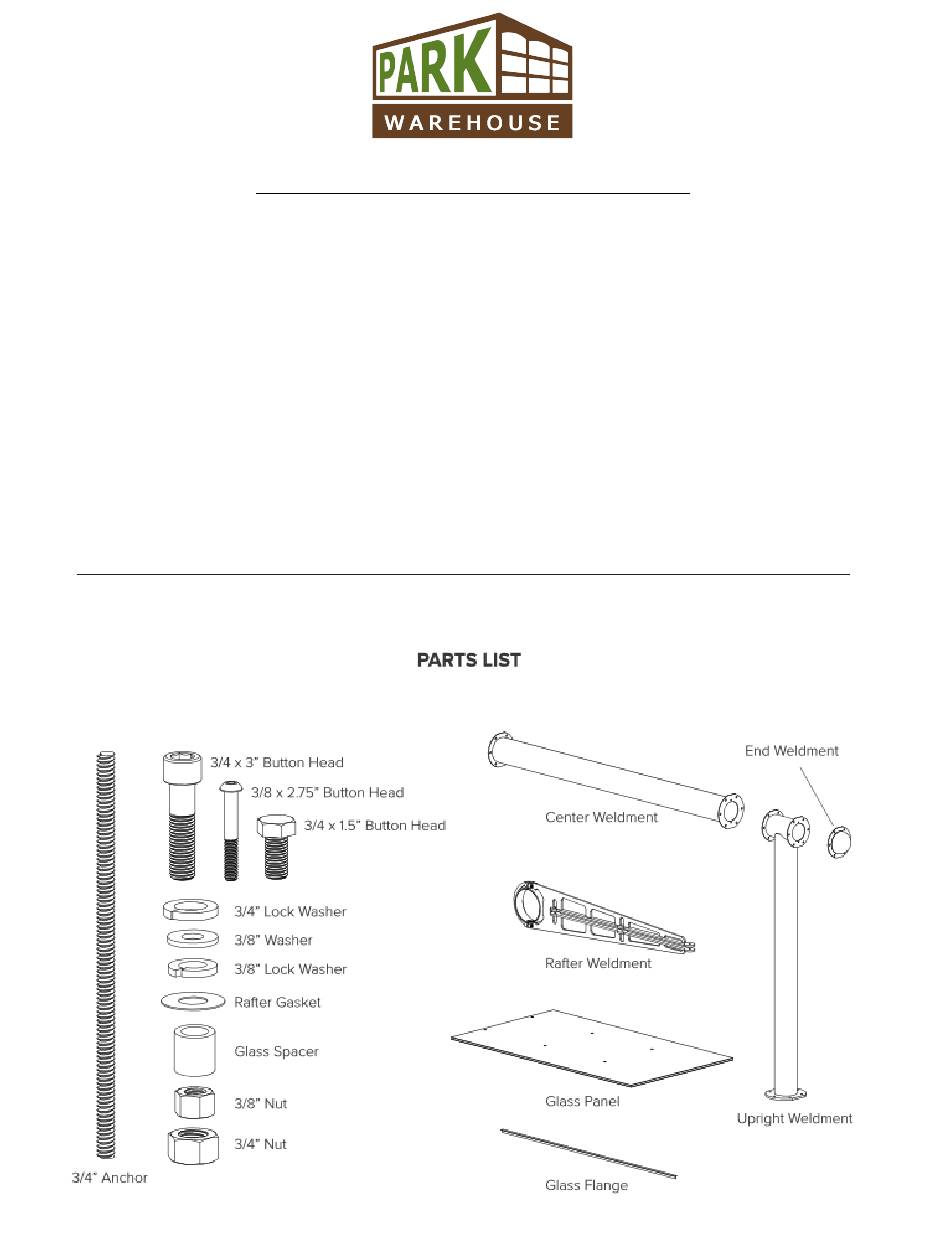

- Page 1 Stratus Shelter - Bike Shelter SKU:554br TOOLS NEEDED Tape measure Level Large hammer drill with 1.00” masonry bit, 14” min. length Socket wrench with 9/16”, 1 1/8” sockets. RECOMMENDED BASE MATERIAL Box wrenches 9/16”, 1 1/8” Hex wrench 7/32” See footing diagram on following page.
- Page 2 Footing Diagram...
- Page 3 Installation Instructions Place uprights based on footing diagram and use the base plates as a guide to drill (6) 1” diameter holes in the concrete 14” deep for each upright. Remove the uprights and thoroughly clean out drilled holes. Use Simpson AT-XP High-Strength Acrylic Adhesive to set ¾” threaded rod anchors. Let the adhesive cure for 24 hours.
- Page 4 Installation Instructions If installing a series of modular Stratus shelters, Lift the center section into place and attach the remaining center sections. attach with (6) ¾” x 1.50” hex head bolts, lock washers, and nuts. The bolt head should be nearest to the upright. Head Washer Tighten all anchor and structure bolts.
- Page 5 Installation Instructions Assemble the glass panels: Match the 2 rafter parts by the identifying Insert the rafter assembly tool into the rafter marks on the inside of the clamp. clamp and tighten all (4) ¾” x 3.00” cap head bolts. This will help open the section the glass is inserted to.
- Page 6 Installation Instructions Carefully maneuver the rafter onto the glass Insert a plastic spacer into the glass mounting panel so that it’s adjacent to the mounting holes. hole and then slide the rafter over the hole. Repeat for all 3 holes. Secure the rafter with (3) 3/8”...
- Page 7 Installation Instructions Lift the initial glass panel assembly into place with a forklift. Attach the glass panel assembly with (2) clamp sections of the rafter and (8) ¾” x 3.00” cap head bolts and lock washers. Leave all bolts loose and lower or lift the forklift until the glass panel assembly is at the desired angle (10º...
- Page 8 Installation Instructions Attach the remaining glass panel assemblies on the same side of the shelter. An approximate ¼” gap should remain between glass panels. 19” 23” 1/4” gap Attach the remaining glass panel assemblies on the other side of the shelter if specified. Shorter Longer Approx.
- Page 9 Installation Instructions Attach the ridge cap if specified. Remove the ¾” x 1.50” hex head bolts, lock washers, and nuts that attach the center section to the uprights positioned at 3 and 9 o’clock. Place the ridge cap over the center section so that its flanges are inside the center section flange. Re-install the ¾” x 1.50”...
