Summary of Contents for Dtrovision Pure Link DVI-DOC-F

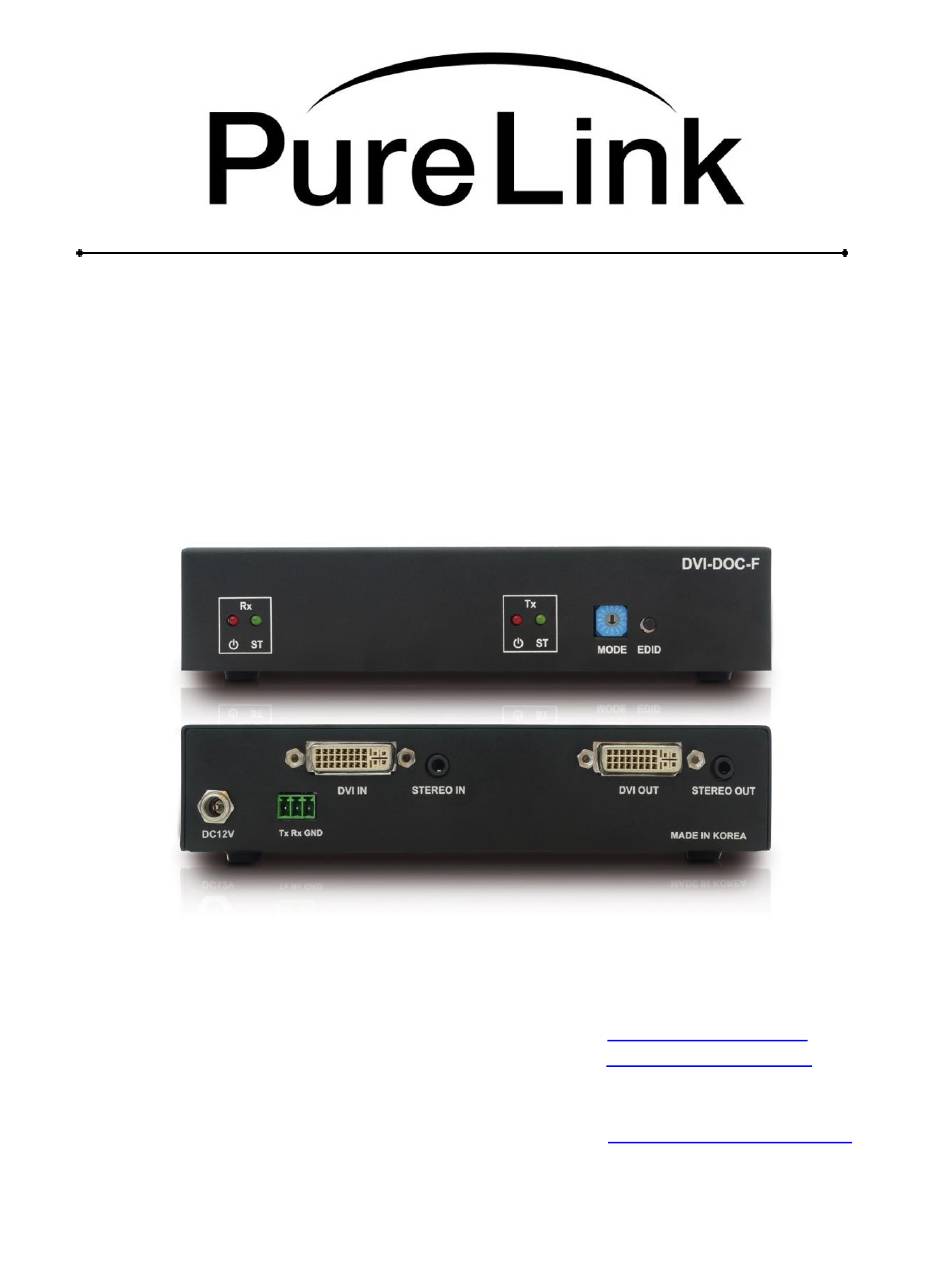

- Page 1 DVI-DOC-F Digital Signal Isolator Owner’s Manual Website : www.purelinkav.com PureLink E-mail : info@purelinkav.com 22-10 State Route 208 Fair Lawn, NJ 07410 Tel: 201.488.3232 For Technical Support, contact us at Fax: 201.621.6118 support@purelinkav.com...
- Page 2 PureLink by Dtrovision Chapter 1. Package Contents Please make sure all of the following items are included in the package: 1) DVI-DOC-F Module 2) DC 12V Power Supply 3) User Manual Chapter 2. General Specification The DVI-DOC-F was created as a customized isolation solution for fiber-optical signal transmission. Simply send a serial command or disconnect the power adapter from the DVI-DOC-F to isolate a signal transmission from source to display.
- Page 3 PureLink by Dtrovision Chapter 3. Operation and Reliability Specification 1. Operating Environment Temperature: 50F ~ 104F (10℃~ 40℃), Humidity: 10% ~ 80%, Altitude: 3,000m Max. 2. Transit Environment Temperature: -13F ~ 140F (-25℃~ 60℃), Humidity: 5% ~ 95%, Altitude: 15,000m Max. 3.
- Page 4 PureLink by Dtrovision What's EDID? Extended Display Identification Data (EDID) is an information set that digital display provides to describe its capabilities to a Video source. Video source will know what kinds of displays are connected and it will determine which resolution to Output according to the EDID information received from the display. The EDID normally includes manufacturer name and serial number, sets of capable resolution including native resolution, supported timing, pixel mapping data (for digital displays only) and etc.
- Page 5 PureLink by Dtrovision Emulation The user can easily save an EDID data from any display devices directly onto DVI-DOC-F. By saving display device's EDID information on DVI-DOC-F, it will act as a display to the Video source. * Connect display device to DVI-DOC-F’s DVI IN port and then press EDID button for 3 seconds. It will copy and save display’s EDID information to Transmitter’s EEPROM.
- Page 6 PureLink by Dtrovision Chapter 8. Warranty 2 (Two) Years Warranty PureLink warrants this DVI-DOC-F to be free from defects in workmanship and materials, under normal use and service, for a period of two (2) years from the date of purchase from PureLink or its authorized resellers.
