INSTALLATION INSTRUCTIONS
FOR BOATS WITH CROSSMEMBERS
THAT ARE 9 ½ - 24" APART
1. Mark the location of all crossmembers with masking tape.
2. Using the specifications below, determine the appropriate mount
location for your ladder and handles and mark the positions.

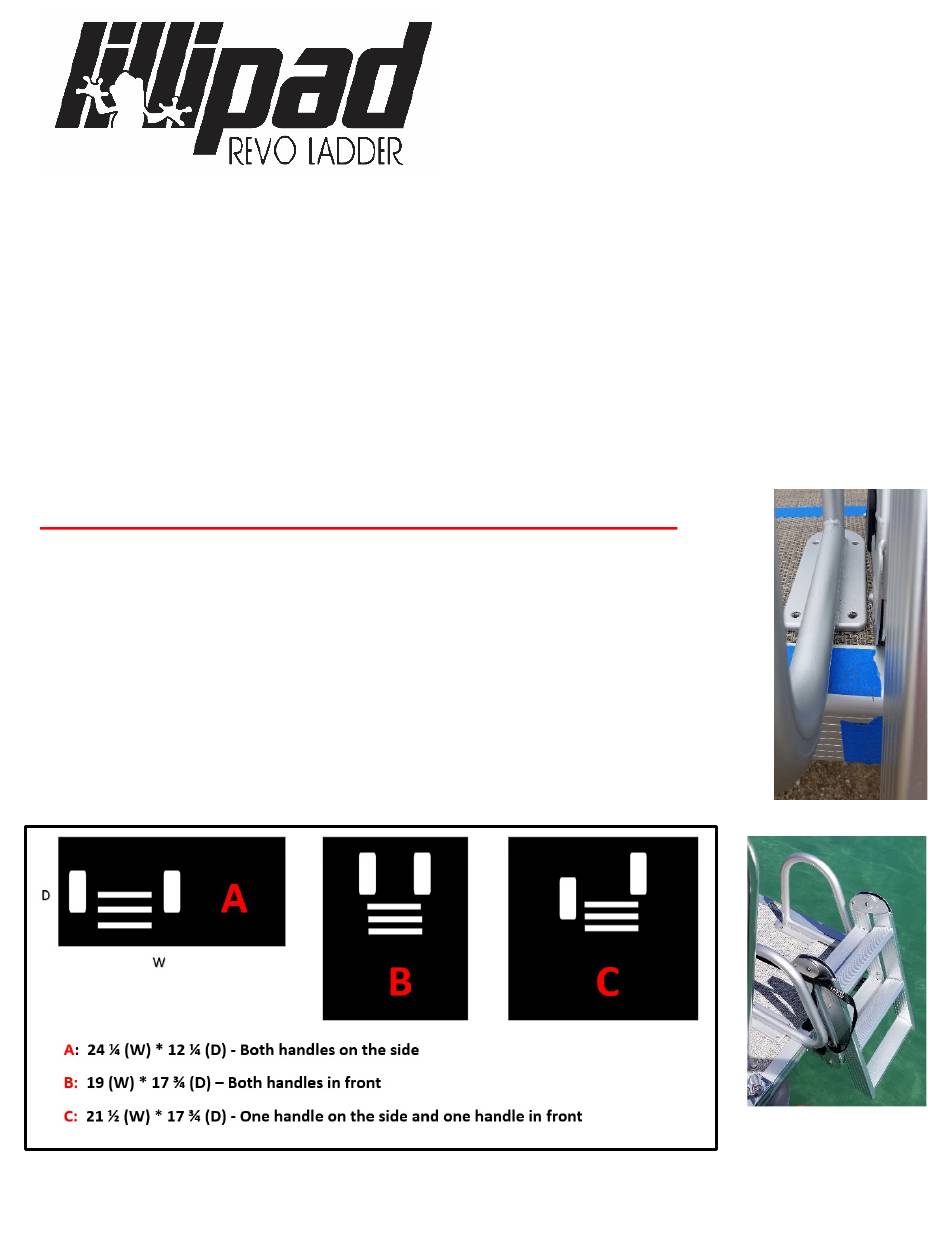

MOUNTING OPTIONS & SPECIFICATIONS
a. Determine the best mounting position for your ladder
and handles. When space allows, LilliPad's preference is
position "C" (pictured below). Position "C" provides
added stability making the ladder easier to climb and
opens the deck for entry onto the boat.
POSITION "C"
Advertisement
Summary of Contents for Lillipad Revo
- Page 1 MOUNTING OPTIONS & SPECIFICATIONS a. Determine the best mounting position for your ladder and handles. When space allows, LilliPad’s preference is position “C” (pictured below). Position “C” provides added stability making the ladder easier to climb and opens the deck for entry onto the boat.
- Page 2 b. Mount brackets must be secured directly to the chassis by using the supplied extension brackets to bridge the boats crossmembers. The brackets must be properly spaced to allow the ladder to slide smoothly in and out of the mount brackets. c.
- Page 3 IMPORTANT: Now that you have determined the mounting position of your ladder and handles you are ready to begin installation. If your boat has an underfloor skin AND you are unable to secure the handles to a crossmember as outlined in spcificiaiton “d”...
- Page 4 4. Remove one bracket assembly from the ladder. 5. Hold the loose bracket assembly in the mounting location and mark the pre- drilled hole location on the crossmember closest to the rub rail. 6. Drill a 3/16” hole, in the crossmember, in the noted location.
- Page 5 9. Drill a 3/16” hole in the second slot line as close to the center of the crossmember as possible. 10. Install a #14 1 ¼” self-drilling screw. Leave slightly loose for adjustment in future step. 11. Slide the ladder into the installed mount bracket and confirm the mount location marks of the second bracket.
- Page 6 HANDLE INSTALLATION PROCEDURE REVO Ladder’s handles are designed to mount independently from the ladder. Install handles to the following specifications: Handles mounted to the side of the ladder must have a minimum of 1 ½” clearance and a maximum of 2”...
- Page 7 1. Position handles in predetermined mount locations. 2. Mark all five screw locations for each handle using a black marker. 3. Confirm that a minimum of one screw will be secured through a cross member on each side of the handle. If this minimum requirement is not met, the backer plates in your mount kit must be used for installation.
- Page 8 With the ladder and handles fully installed you must now install the J-Snap Post which will secure the retracting/retaining strap to the handle. Proper placement of the J-Snap Post is critical to ensuring the ladder is secured to the boat when in the stowed position.
- Page 9 REVO Ladder Bow Mounts (sold separately) allow the ladder to be moved from stern to bow. Install bow mount kits to the following specifications: 1. Install bow mounts on the starboard side only. 2. The same installation procedure should be...
