ILP SWP Series Installation Instructions

PLEASE READ INSTRUCTIONS BEFORE COMMENCING INSTALLATION AND RETAIN FOR FUTURE REFERENCE.
Electrical products can cause death or injury, or damage to property. If in any doubt about the installation or use of this product, consult a competent electrician.
To avoid the risk of fire, explosion, or electric shock, this product shall be installed, inspected, and maintained by a qualified electrician, in accordance with all
applicable electrical codes.
To avoid electric shock:
•Be certain electrical power is OFF before and during installation or maintenance.
•Luminaire must be connected to a wiring system with equipment-grounding conductor
To avoid explosion:
•Make sure the supply voltage is the same as the rated luminaire voltage.
•Do not install where marked operating temperatures exceed the ignition temperature of the hazardous atmosphere.
•Do not operate in ambient temperatures above those indicated on the luminaire.

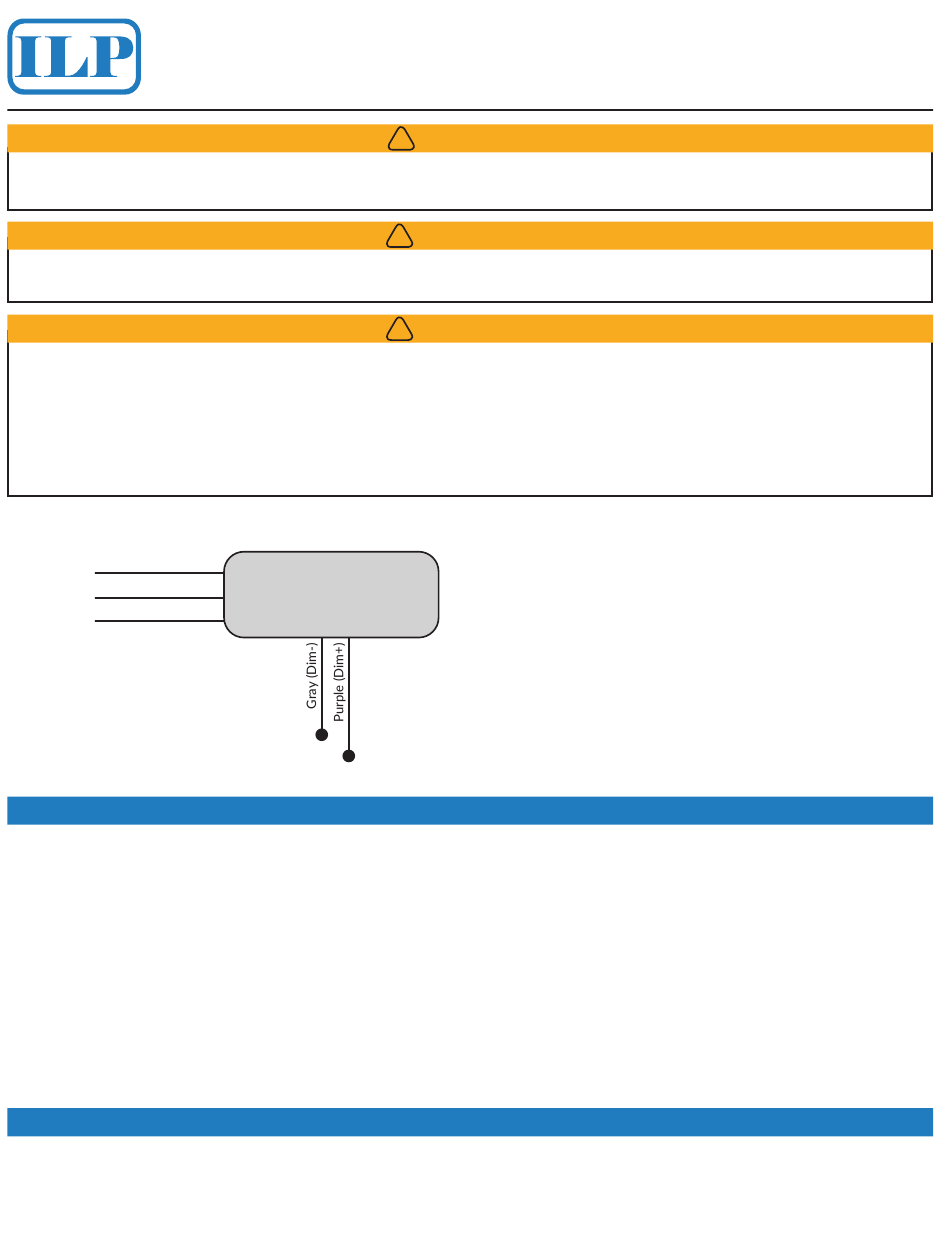

General Wiring Diagram

Black (Line)
120-277V
White (Neutral)
or
Green (Ground)
347V-480V
Introduction:
This LED Wall-Pack uses the latest in solid-state lighting technology for long life, low maintenance, and high efficiency.
• This luminaire color temperature
has a fixed
• This luminaire can field adjust the brightness through the FAO option.
• The optical part
(LED Head)
This luminaire can be installed with a pencil type photocell threaded through a conduit entry opening.
The solid-state driver allows operation on nominal 120-277V / 347-480V*, 50-60Hz AC supply without any variation in light output.
Suitable for use in the following locations:
• Min. Ambient Temp: -40°F (-40°C)
• Max Ambient Temp: 104°F (40°C) Consult Factory For Higher Ambient
• Suitable for Wet Locations
Installation Instructions:
1. Read all Warnings and Installer Notes before proceeding with this installation.
2. Check to ensure all parts listed are included in your installation
* For 5L, 8L, 10L only, alternative driver to be ordered separately
SWP LED SLIM WALL
LED DRIVER
Figure 1
3000K
of to meet International Dark Sky Association requirements.
is 0°
fixed to (facing down) to meet International Dark Sky Association
PACK
CAUTION
!
WARNING
!
WARNING
!
Universal voltage driver permits operation at 120-277V / 347-480V*, 50-60Hz.
0-10V control wires must be rated for 300V minimum.
For 0-10V Dimming, follow the wiring direction as in Figure 1.
1. Connect the black fixture lead to the (+) LINE supply lead.
2. Connect the white fixture lead to the (-) COMMON supply lead.
3. Connect the GROUND wire from fixture to supply ground. Do NOT connect the
GROUND of the dimming fixture to the output.
4. Connect the violet fixture lead to the (V+) Dim lead.
5. Connect the gray fixture lead to the (V-) Dim lead.
- Dark Sky Models
INSTALLATION INSTRUCTIONS
requirements.
