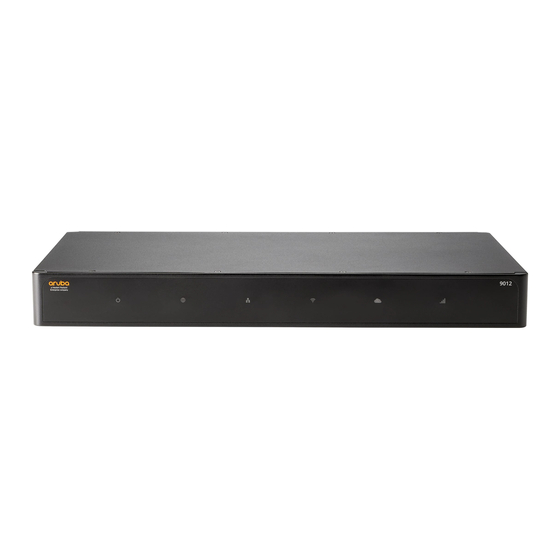

Aruba 9012 Gateway

Table of Contents

Need help?

Do you have a question about the Aruba 9012 and is the answer not in the manual?

Questions and answers

Summary of Contents for Hewlett Packard Enterprise Aruba 9012

Page 1 Aruba 9012 Gateway...
Page 2 This offer is valid to anyone in receipt of this information and shall expire three years following the date of the final distribution of this product version by Hewlett Packard Enterprise Company. To obtain such source code, send a check or money order in the amount of US $10.00 to:...
Page 3: Table Of Contents
Contents Guide Overview......................5 Related Documentation................... 5 Contacting Support ....................5 Package Checklist ..................... 7 Aruba 9012 Gateway Components ................ 8 Front Panel LEDs....................8 Kensington Lock Slot ..................9 Power Supply...................... 9 Reset Switch ..................... 10 Ethernet Ports ....................10 Micro-USB Console Port..................
Page 4 | Installation Guide Aruba 9012 Gateway...
Page 5: Guide Overview
Preface This document describes the hardware features of the Aruba 9012 gateway. It provides a detailed overview of the physical and performance characteristics of the gateway and explains how to install the gateway and its accessories. Guide Overview Chapter 1, “9012 Gateway” on page 7 provides a detailed hardware overview of the Aruba 9012 ...
Page 6 | Preface | Installation Guide Aruba 9012 Gateway...
Page 7: Package Checklist
Chapter 1 9012 Gateway The Aruba 9012 gateway is a dual purpose gateway that supports both SD-WAN and wireless LAN capabilities. The wireless LAN connects, controls, and intelligently integrates wireless Access Points (APs), Managed Devices, and Air Monitors (AMs). The gateway has the ability to directly connect a branch to cloud, provide resilient connectivity from the cloud, and centralized control for policy management across all branches.
Page 8: Aruba 9012 Gateway Components
The rack mounting kit is available for use with the Aruba 9012 gateway and is sold separately. Contact your Aruba sales representative for details and assistance. Aruba 9012 Gateway Components This section introduces the different component and its location in the Aruba 9012 gateway.
Page 9: Kensington Lock Slot
The Aruba 9012 gateway is equipped with a Kensington security slot for additional security. Power Supply The Aruba 9012 Gateway is equipped with an integrated AC power supply of 185 W. The integrated power supply supports an input voltage of 100 V AC to 240 V AC.
Page 10: Reset Switch
PoE+ (802.3at) and PoE (802.3af). The Aruba 9012 gateway supports up to four PoE+ Class 4 ports simultaneously, with a power supply of up to 30 W only. All the 6 PoE ports can support power up to 15.4 W simultaneously.
Page 11: Micro-Usb Console Port
Link at 10/100 Mbps Micro-USB Console Port The Aruba 9012 gateway is equipped with a Micro-USB (type B) connector that provides direct local console access. If both Micro-USB and RJ-45 console ports are connected, the Micro-USB connection takes precedence over the RJ-45 console connection.
Page 12: Usb Port
Ground USB Port The Aruba 9012 gateway is equipped with two USB 3.0 interfaces. A USB storage device can be used to save and upload configurations to the gateway. The Aruba 9012 gateway also provides support for USB LTE Modems. These modems can be connected to either USB Port 0 and Port 1.
Page 13 The 9012 gateway provides support for two USB LTE Modems. You can use only one USB LTE Modem at a time. To use both modems simultaneously, it is recommended to use a USB extension cable. | Installation Guide 9012 Gateway | Aruba 9012 Gateway...
Page 14 | 9012 Gateway | Installation Guide Aruba 9012 Gateway...
Page 15: Installation Recommendations
Installation of the device should be performed by a trained installation professional. This chapter describes how to install an Aruba 9012 Gateway using the many mounting options available. The 9012 gateway ships with an accessory kit that includes the equipment needed to install the gateway in a standard, 19-inch telco rack or on a wall.
Page 16: Rack Mounting- Front And Rear
2. Secure the bracket to the gateway using the eight screws for the mount bracket (four per bracket) and a suitable screwdriver. 3. Mount the gateway within your organization’s rack system using the four screws for the system rack mount (two per bracket) and a suitable screwdriver. See Figure | Installation | Installation Guide Aruba 9012 Gateway...
Page 17: Required Tools And Equipment
Rubber feet (included in the kit)  Installation Steps 1. Attach the rubber feet to the bottom of the gateway. See Figure Figure 8 Attaching Rubber Feet 2. Place the gateway in the location you have chosen. | Installation Guide Installation | Aruba 9012 Gateway...
Page 18: Wall Mounting
4. Align the mounting bracket holes with the holes you created on the wall. See Figure 5. Use appropriate screws to secure the 9012 gateway. | Installation | Installation Guide Aruba 9012 Gateway...
Page 19 Figure 10 Wall Mounting | Installation Guide Installation | Aruba 9012 Gateway...
Page 20 | Installation | Installation Guide Aruba 9012 Gateway...
Page 21: Aruba 9012 Gateway Specifications
For additional specifications on this product, please refer to the data sheet. The data sheet can be found at www.arubanetworks.com Safety and Regulatory Compliance Aruba, a Hewlett Packard Enterprise company provides a multi-language document that contains country-specific restrictions and additional safety and regulatory information for all Aruba products. | Installation Guide Specifications, Safety, and Compliance |...
Page 22: Fcc
Use of controls or adjustments of performance or procedures other than those specified in this manual may result in hazardous radiation exposure. | Specifications, Safety, and Compliance | Installation Guide Aruba 9012 Gateway...
Page 23: Wireless Channel Restrictions
California and certain other states. See www.dtsc.ca.gov/hazardouswaste/perchlorate for more information. There is a risk of explosion if battery is replaced by an incorrect type, so dispose used batteries according to the instructions. | Installation Guide Specifications, Safety, and Compliance | Aruba 9012 Gateway...
Page 24: Japan Vcci
Proper Disposal of Aruba Equipment Waste of Electrical and Electronic Equipment Aruba, a Hewlett Packard Enterprise company products at end of life are subject to separate collection and treatment in the EU Member States, Norway, and Switzerland and therefore are marked with the symbol shown at the left (crossed-out wheelie bin).
Page 25: China Rohs
China RoHS Aruba, a Hewlett Packard Enterprise company products also comply with China environmental declaration requirements and are labeled with the “EFUP 50” label shown at the left. Hazardous Materials Declaration Hazardous Substances) Chromium VI Polybrominated Polybrominated (Parts) Lead Mercury...
Page 26: Нормативные Требования Евразийского Экономического Союза
La operación de este equipo está sujeta a las siguientes dos condiciones: (1) es posible que este equipo o dispositivo no cause interferencia perjudicial y (2) este equipo o dispositivo debeaceptar cualquier interferencia, incluyendo la que pueda causar su operación no deseada. | Specifications, Safety, and Compliance | Installation Guide Aruba 9012 Gateway...
