EDM Avistar PhaseTrakker AP30 Operation Manual

Operation Guide

Specifications

•
Universal hotstick attachment
•
¼ x 20 threaded hole for tip attachments (hook or 12" extension)
•
Test lead attachment on sensor
•
Voltage Range: 120 V to 500 kV, 60 Hz and 50 Hz
•
Transmitter: 433 MHz FM, Range 100'
•
Battery: 9 V
•
Average Battery Life
o Active: 18 hours or about 500 readings at 2 minutes each
o Shelf: 1 year
•
Size: 11.3" L x 3" W x 3" H (sensor: 4.9" L x 2.7" W x 1.3" H)
•
Weight: 1.4 lb (sensor: 0.3 lb)

Limited Warranty

EDM International, Inc. (EDM) products are warranted against defects in materials
and manufacturing for one (1) year from date of shipment. In the event of prod-
uct failure due to materials or workmanship, EDM will repair or replace the
product.
EDM and its suppliers, and its licensors shall in no event be liable for any dam-
ages arising from the use or inability to use this product. This includes business
interruption or any other loss which may arise from the use of this product.

Service and Support

For service and technical support, visit
support@edmlink.com or 800-687-4196. Products returned for service require
prior authorization.

PhaseTrakker AP30 Phase Identification System

For information on the AP30 Phase Identification System, visit
contact EDM at info@edmlink.com or 970-204-4001.
EDM International, Inc.
4001 Automation Way
Fort Collins, CO 80525 USA
Tel: (970) 204-4001
Fax: (970) 204-4007
www.edmlink.com
4

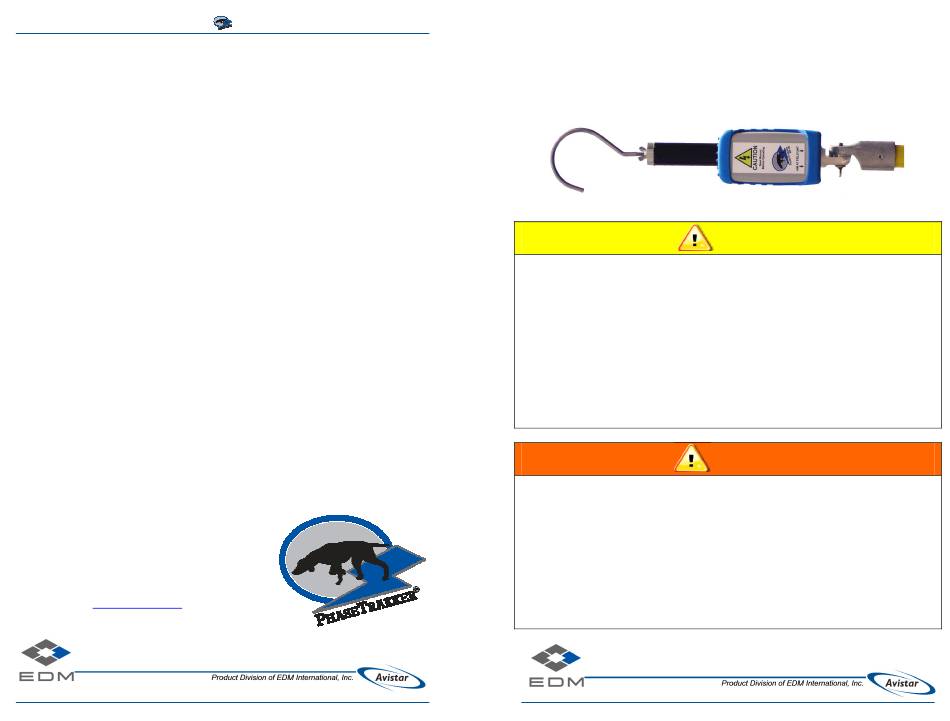

AP30 Hotstick Unit
www.edmlink.com or contact EDM at
www.edmlink.com
PhaseTrakker
The equipment covered in this manual should be used and serviced only by com-
petent personnel familiar with and following good work and safety practices.
This equipment is for use by such personnel, and the manual is not intended as a
substitute for adequate training and experience in safe procedures for this type
of equipment.
These instructions neither cover all the details or situations in equipment use, nor
do they provide for every possible contingency to be encountered in relation to
installation, operation, or maintenance. Should additional information and de-
tails be desired, or if situations arise that are not covered adequately for the
user's purpose, the specifics should be referred to EDM International, Inc.
or
On voltages above 300 V, the AP30 Hotstick Unit must be used in conjunction
with an approved insulated stick. Failure to do so could result in injury or death.
During use at voltages above 300 V, the entire Hotstick Unit should be consid-
ered energized. Do not let the Hotstick Unit or universal fitting touch any
grounded contact point. For 15 kV and below, maintain minimum 3" clearance
between the Hotstick Unit and ground. Above 15 kV maintain a minimum of 5"
clearance. A ground contact will damage the Hotstick Unit and could cause in-
jury.
AP30 Hotstick Unit
®
Operation Guide
CAUTION
WARNING
1
