Propane Fume Detection System
With Solenoid Valve Control
Single Channel Systems
P-1BS-R (Black, Round, Solenoid Control, 12V Solenoid)
P-1BS-24-R (Black, Round, Solenoid Control, 24V Solenoid)
P-1CS-R (Chrome, Round, Solenoid Control, 12V Solenoid)
P-1CS-24-R (Chrome, Round, Solenoid Control, 24V Solenoid)
Dual Channel System
P-2BS-R (Black, Square, Solenoid Control, 12V Solenoid)
P-2BS-24-R (Black, Square, Solenoid Control, 24V Solenoid)
Owner's Manual
&
Installation Instructions
Read and comply with all instructions, warnings and limitations before
installing, servicing or removing this device.
1
Part Number 18143, E, 01/28/2020
Advertisement
Table of Contents
Related Manuals for Xintex P-1BS-R
Summary of Contents for Xintex P-1BS-R
- Page 1 Propane Fume Detection System With Solenoid Valve Control Single Channel Systems P-1BS-R (Black, Round, Solenoid Control, 12V Solenoid) P-1BS-24-R (Black, Round, Solenoid Control, 24V Solenoid) P-1CS-R (Chrome, Round, Solenoid Control, 12V Solenoid) P-1CS-24-R (Chrome, Round, Solenoid Control, 24V Solenoid) Dual Channel System...
-
Page 2: Table Of Contents
Additional copies of this manual are available on the Fireboy-Xintex website. Fireboy-Xintex reserves the right to change features without notice. General Information Specifications Operation of Xintex Propane Fume Detector(s) Installation Installing the Display Unit (P1BR-S01-D/P1CR-S01-D & P2BS-S01D) Installing the Solenoid Valve for LPG Applications Routing Sensor Cable(s) (FS-X01 CABLE XX’) -
Page 3: General Information
NOT MEANT TO REPLACE STANDARD SAFETY PRACTICES WHICH SHOULD BE CARRIED OUT AROUND EXPLOSIVE GASES. The P-1BS-R, P-1CS-R, and P-2BS-R Propane Fume Detectors are an effective means to monitor propane fumes in a compartment or leaking fuel systems. In addition, these units have the ability to control the flow of CNG/LPG to your appliances. -
Page 4: Operation Of Xintex Propane Fume Detector(S)

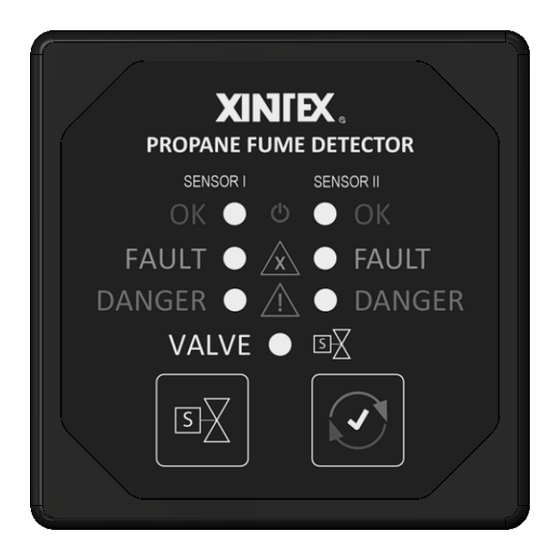

Operation of Xintex Propane Fume Detector(s) There are 3 LEDs located on the Display Unit for each channel on the system, as well as an LED for the Solenoid Valve status. The Green LED, located at the top, indicates that the system is operational. - Page 5 Part Number 18143, E, 01/28/2020...
-
Page 6: Installation
Installation Installing the Display Unit (P1BR-S01-D/P1CR-S01-D & P2BS-S01D) The Display Unit should be located at the instrument panel, so that the visible and audible indicators may be easily observed. Drill a 2-1/16” hole to accommodate the P1BR-S01-D/P1CR-S01-D Display Unit. Drill a 2-1/8” hole to accommodate the P2BS-S01-D Display Unit. Insert Display Unit into hole and secure with the provided threaded mounting nut. -
Page 7: Installing Propane Fume Sensor(S) (Fs-T01)
Installation Continued Installing Propane Fume Sensor(s) (FS-T01) The Propane Fume Sensor should be located by the propane powered appliance, near the floor. Avoid areas where damage may take place due to cleaning, mopping, kicking, or other physical damage. Harsh chemicals should not be used to clean sensors. Use the appropriate #8 mounting hardware to mount the Propane Fume Sensor in the desired location. -
Page 8: Testing The Propane Fume Sensors
No product may be returned for credit or repair without a written “Returned Material Authorization” (RMA) form. Purchaser must call or email Fireboy-Xintex 616-735-9380 or fireboy@fireboy-xintex.com for a RMA. If due to extenuating circumstances a product is to be returned, after approval it must be received in 100% new/resalable condition. Products stored by the buyer for more than 26 weeks may not be returned for any reason. -
Page 9: Year Limited Warranty
Fireboy-Xintex LLC any other liability in connection with the sale of its products; Fireboy-Xintex LLC shall not be liable for the loss of use, revenue, or profit or for any injury, or for any other consequential or incidental damages, buyer is not relying on seller’s judgment regarding his or her particular requirements, and has had an opportunity to inspect the product to his or her satisfaction.
