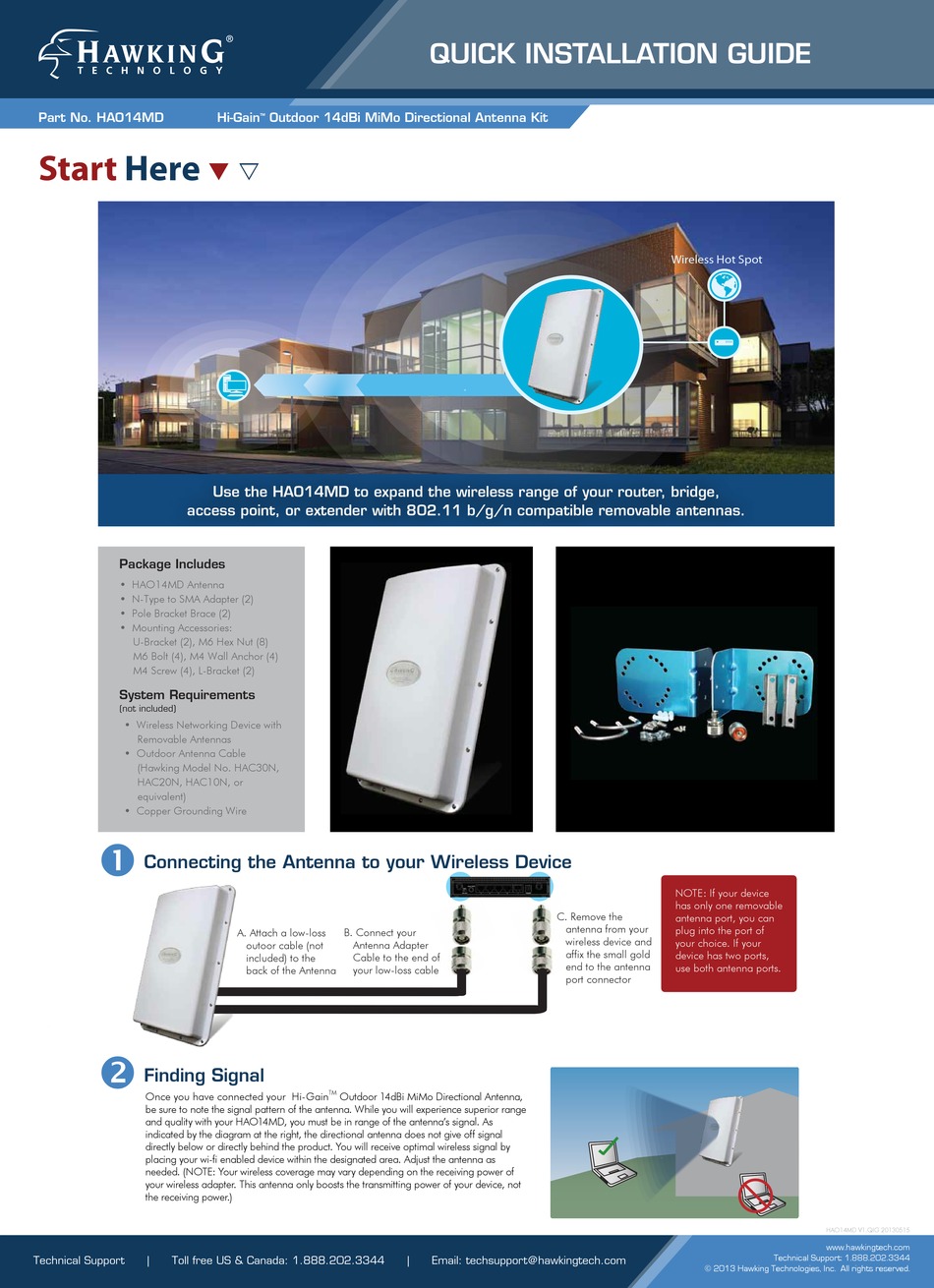

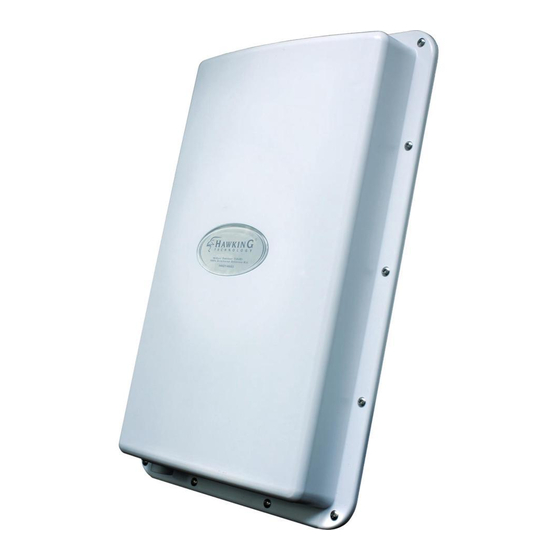

Hawking Hi-Gain HAO14MD Quick Installation Manual

Hawking Hi-Gain HAO14MD Quick Installation Manual

Outdoor 14dbi mimo directional antenna kit

Advertisement

Part No. HAO14MD
Start
Here
access point, or extender with 802.11 b/g/n compatible removable antennas.

Package Includes

• HAO14MD Antenna
• N-Type to SMA Adapter (2)
• Pole Bracket Brace (2)
• Mounting Accessories:
U-Bracket (2), M6 Hex Nut (8)
M6 Bolt (4), M4 Wall Anchor (4)
M4 Screw (4), L-Bracket (2)

System Requirements

(not included)
• Wireless Networking Device with
Removable Antennas
• Outdoor Antenna Cable
(Hawking Model No. HAC30N,
HAC20N, HAC10N, or
equivalent)
• Copper Grounding Wire

Connecting the Antenna to your Wireless Device

Finding Signal

Once you have connected your Hi-Gain
be sure to note the signal pattern of the antenna. While you will experience superior range
and quality with your HAO14MD, you must be in range of the antenna's signal. As
indicated by the diagram at the right, the directional antenna does not give off signal
directly below or directly behind the product. You will receive optimal wireless signal by
placing your wi-fi enabled device within the designated area. Adjust the antenna as
needed. (NOTE: Your wireless coverage may vary depending on the receiving power of
your wireless adapter. This antenna only boosts the transmitting power of your device, not
the receiving power.)
Technical Support
|
Toll free US & Canada: 1.888.202.3344
HW2R1 rev 1 I QIG v.20101118
Hi-Gain
Outdoor 14dBi MiMo Directional Antenna Kit
TM
Use the HAO14MD to expand the wireless range of your router, bridge,
A. Attach a low-loss
B. Connect your
Antenna Adapter
outoor cable (not
included) to the
Cable to the end of
back of the Antenna
your low-loss cable
TM
Outdoor 14dBi MiMo Directional Antenna,
QUICK INSTALLATION GUIDE
C. Remove the
antenna from your
wireless device and
affix the small gold
end to the antenna
port connector
|
Email: techsupport@hawkingtech.com
Wireless Hot Spot
NOTE: If your device
has only one removable
antenna port, you can
plug into the port of
your choice. If your
device has two ports,
use both antenna ports.
HAO14MD V1.QIG 20130515
www.hawkingtech.com
Technical Support: 1.888.202.3344
© 2013 Hawking Technologies, Inc. All rights reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Hi-Gain HAO14MD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Hawking Hi-Gain HAO14MD

  • Page 1 This antenna only boosts the transmitting power of your device, not the receiving power.) HAO14MD V1.QIG 20130515 www.hawkingtech.com Technical Support: 1.888.202.3344 Technical Support Toll free US & Canada: 1.888.202.3344 Email: techsupport@hawkingtech.com © 2013 Hawking Technologies, Inc. All rights reserved. HW2R1 rev 1 I QIG v.20101118...
  • Page 2 HPBW (3dB Beam Width) 25° @E-plane 40° @H-plane Operating Temp -40°F to 149°F Connector Brass Pole Diameter 0.9 to 1.8 inches www.hawkingtech.com Technical Support: 1.888.202.3344 Technical Support Toll free US & Canada: 1.888.202.3344 Email: techsupport@hawkingtech.com © 2013 Hawking Technologies, Inc. All rights reserved.
