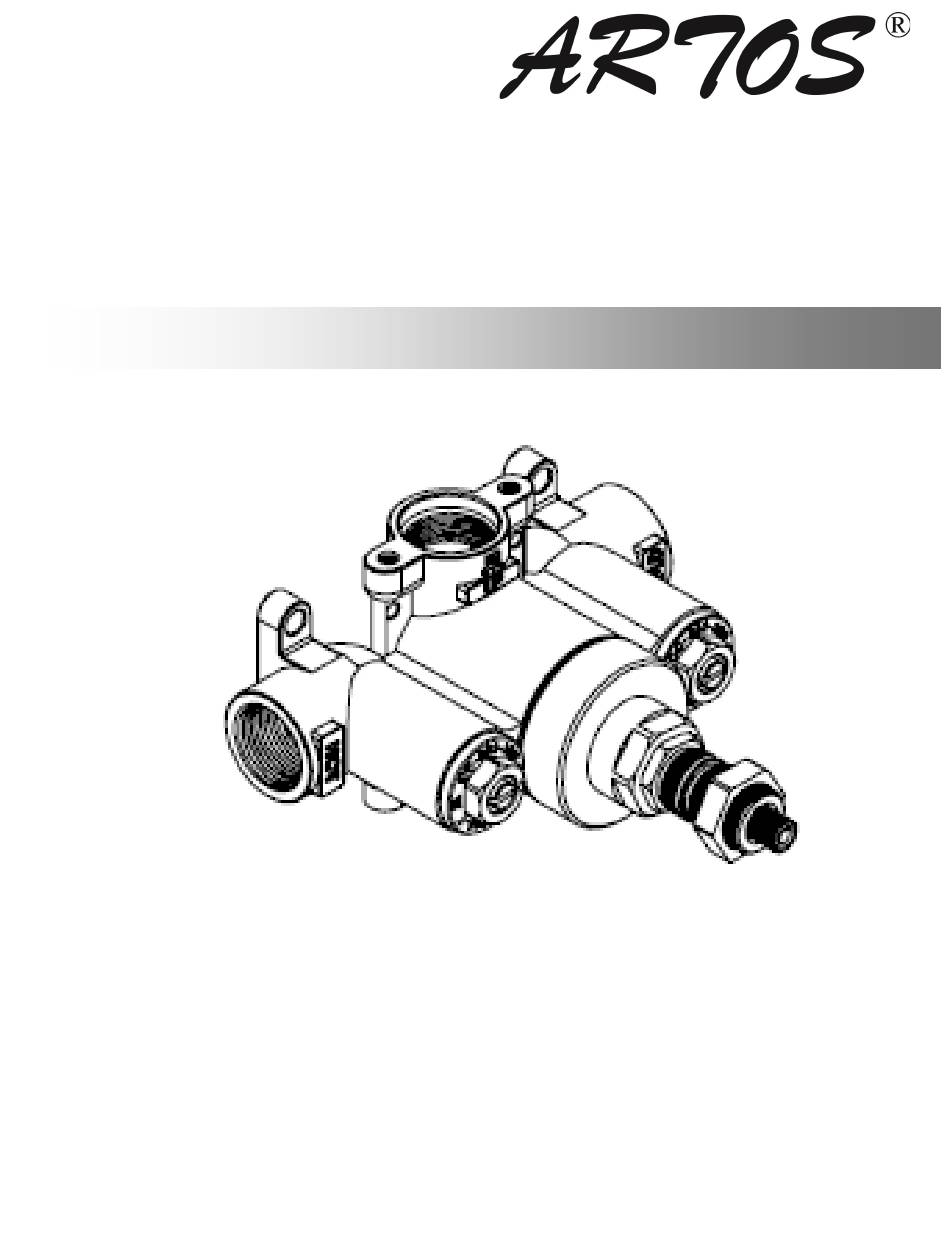

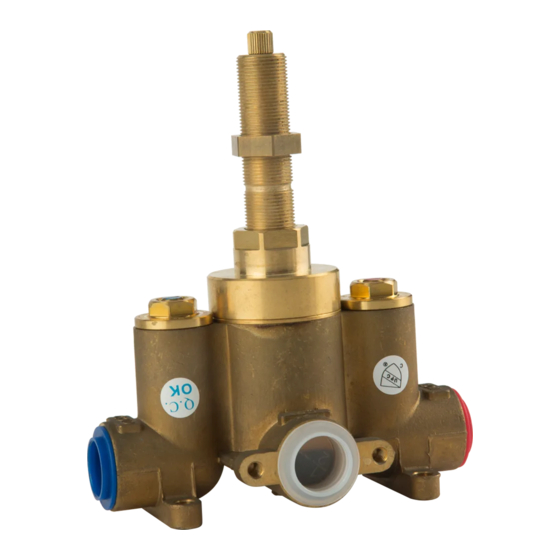

- Page 1 Installation Guide 3/4 ” THERMOSTATIC VALVE F904A-VO 904A30513 This publication is for illustrative purposes only and we reserve the right to change details at anytime as deemed necessary.
-
Page 2: Operating Specifications
Operating Specifications Mixed water temperature ⃞ Maximum: 120°F Hot Water Supply Temperature ⃞ Maximum: 185°F ⃞ Minimum: 50°F higher than mixed ⃞ Advisable: 150°F - 160°F ⃞ Minimum difference between hot and mixed temperature 50°F Operating Pressure ⃞ Maximum: 125psi ⃞... - Page 3 Measurements Install the Thermostatic Valve ⃞ Connect the hot 3/4” supply to the left side of the valve (viewed from the front) and the cold supply to the right ⃞ Ensure that the valve is upright and level and secure it to a ply wood backer if there is room or secure pipes firmly to framework ⃞...
-
Page 4: Installation Depth
Installation Depth MAX 5-1/2” MIN 3.25” 0.75” 2 x 3/4” NPT Outlets (1 each side) 2 x 3/4” NPT Inlets (1 each side) DIAGRAM A Complete the installation ⃞ Remove filters/stops and flush the supply lines to remove any de- bris. - Page 5 904A30513...
- Page 6 904A30513...
-
Page 8: Care And Maintenance
Westover, Inc is not responsible for labor charges, installation or oth- er incidental or consequential costs. Proof of purchase must be provided with all claims. PLEASE REGISTER THIS PRODUCT ONLINE AT WWW.ARTOS-WESTOVER.COM Item № Serial № 904A30513...
