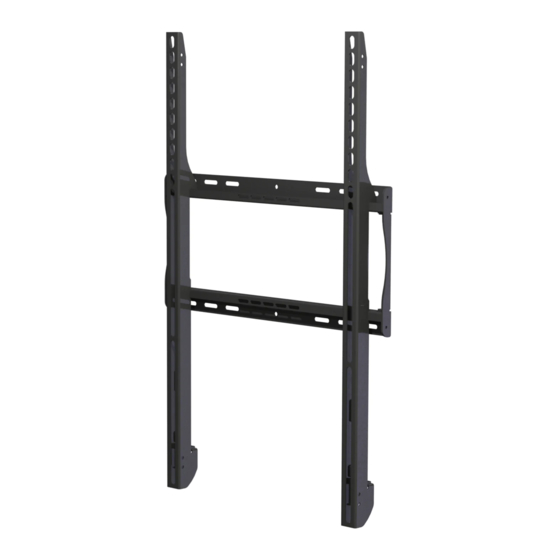

ESF655P
42" - 80"
150 lb
MAX
(107 - 203 cm)
(68 kg)
ENG
Not wind rated
ESF655P
1
2014-09-24
#:203-9450-2
(2017-04-04)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ESF655P and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for peerless-AV ESF655P

Summary of Contents for peerless-AV ESF655P

  • Page 1 ESF655P 42" - 80" 150 lb (107 - 203 cm) (68 kg) Not wind rated ESF655P 2014-09-24 #:203-9450-2 (2017-04-04)
  • Page 2 WARNING ENG - This product is designed to be installed on wood stud, solid concrete or cinder block walls. Hardware is included for wood stud, solid concrete and cinder block installation. Before installing make sure the supporting surface will support the combined load of the equipment and hardware. Screws must be tightly secured. Do not overtighten screws or damage can occur and product may fail.

  • Page 3: Table Of Contents

    Parts (Before beginning, make sure you have all parts shown below). Parts List ESF655P G ( 4 ) H ( 4 ) Description Part # A wall plate 201-T5946 washer spacer B adapter bracket 200-T5946 C 4mm allen wrench 560-1727...

  • Page 4: A ( 1 )

    1a-1 Use stud finder to locate and mark stud center lines. 1a-2 " Level wallplate. Mark mounting holes on stud center lines. 5 . 3 5 " 8" 8" (20cm) (20cm) 2014-09-24 #:203-9450-2 (2017-04-04)
  • Page 5 1a-3 5/32" (4mm) Drill mounting holes into supporting surface (2.5" (64mm) minimum depth required). 2.5" (64mm) 5/32" (4mm) Mounting hole must center on stud. 1a-4 3/8" (10mm) Level wallplate. Install using wood screws provided. Maximum 80 in. • lb (9 N.M.). E (4) 2014-09-24 #:203-9450-2...
  • Page 6 WARNING ENG - When installing Peerless wall mounts on a concrete wall, the wall must be at least 8" thick with a minimum compressive strength of 2000 psi. When installing Peerless wall mounts on a cinder block wall, the cinder blocks must meet ASTM C-90 specifications and have a minimum nominal width of 8".
  • Page 7 1b-3 Insert anchor flush to concrete. D (4) 1b-4 3/8" (10mm) Level wallplate. Install using concrete anchors and wood screws provided. Maximum 80 in. • lb (9 N.M.). E (4) 2014-09-24 #:203-9450-2 (2017-04-04)

  • Page 8: F ( 4 )

    Center adaptor brackets vertically on back of screen. ENG Use of spacers is optional. 2014-09-24 #:203-9450-2 (2017-04-04)

  • Page 9: C ( 1 )

    Tighten. 2014-09-24 #:203-9450-2 (2017-04-04)

  • Page 10: D ( 4 )

    This page intentionally left blank. Página en blanco. Cette page a été laissée en blanc intentionnellement. Diese Seite wurde absichtlich freigelassen. Deze pagina is met opzet blanco gelaten. Pagina lasciata intenzionalmente vuota. Tato strana je záměrně prázdná. ČEŠ Táto strana je zámerne prázdna. Esta página foi intencionalmente deixada em branco.

  • Page 11: E ( 4 )

    LIMITED FIVE-YEAR WARRANTY Peerless Industries, Inc. (“Peerless”) warrants to original end-users of Peerless products will be free from defects in material and ® workmanship, under normal use, for a period of five years from the date of purchase by the original end-user (but in no case longer than six years after the date of the product's manufacture).
  • Page 12 Peerless-AV Peerless-AV Europe Peerless-AV de Mexico 2300 White Oak Circle Unit 3 Watford Interchange, Ave de las Industrias 413 Aurora, IL 60502 Colonial Way, Watford, Herts, Parque Industrial Escobedo Email: tech@peerlessmounts.com WD24 4WP, United Kingdom Escobedo N.L Mexico 66050 Ph: (800) 865-2112...
