Summary of Contents for Sirona SA7009

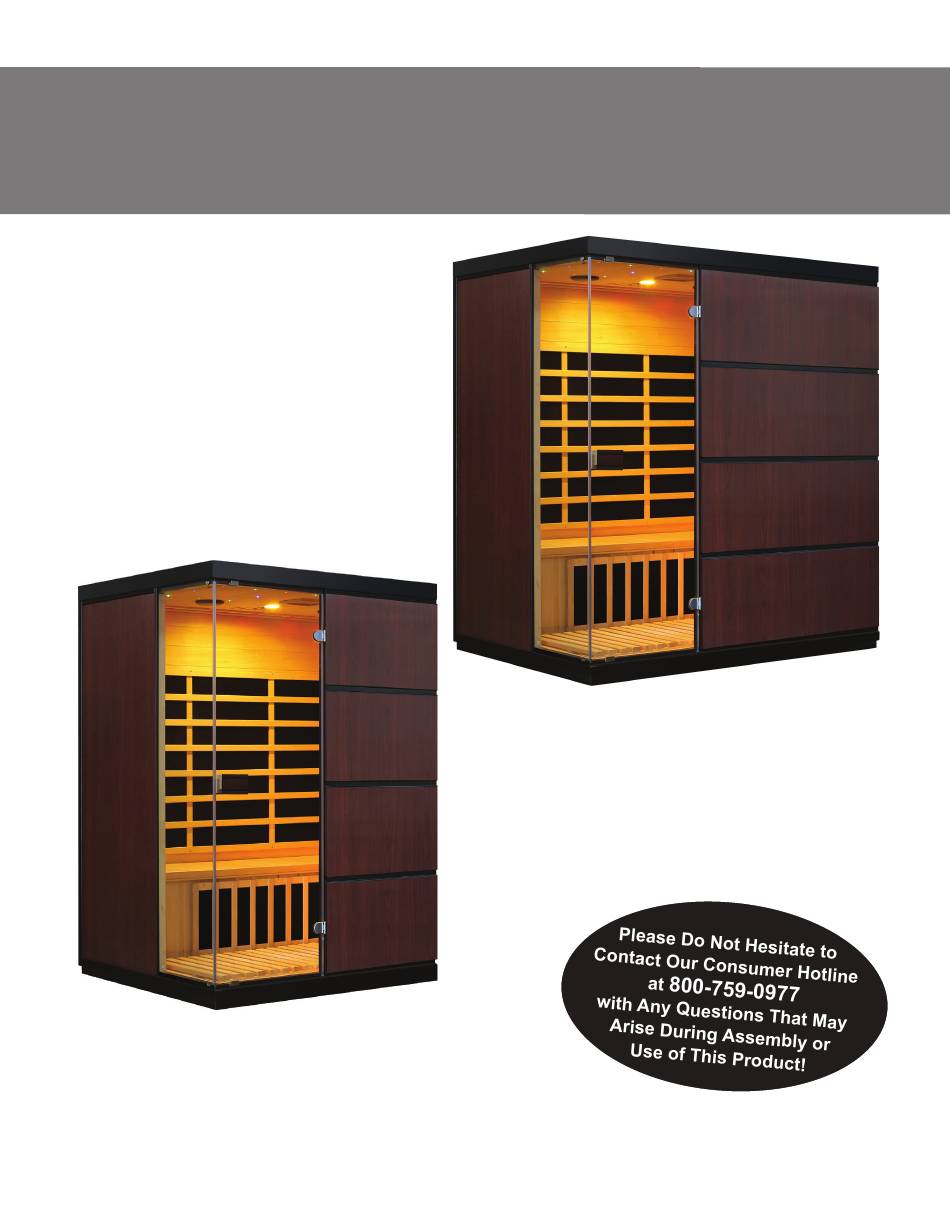

- Page 1 SIRONA HEMLOCK INFRARED SAUNA OWNER’S MANUAL SA7009 4-Person with 9 Carbon Heaters SA7008 3-Person with 8 Carbon Heaters SA7008/SA7009 Ver. 9/19...
-
Page 2: Table Of Contents
TABLE OF CONTENTS ASSEMBLY TIPS & WARNINGS PARTS IDENTIFIER ASSEMBLY INSTRUCTIONS OPERATION INSTRUCTIONS ENJOYING YOUR SAUNA HEALTH & SAFETY WARNINGS CLEANING & MAINTANENCE TROUBLESHOOTING GUIDE 13-14 SAUNA USE DISCLAIMER REPLACEMENT PARTS 15-16 WARRANTY INFORMATION If you would like a French version of this manual, please contact our Customer Service Department at 800-759-0977 or custserv@splashnetxpress.com Si vous voulez une version française d’un manuel, s'il vous plaît contacter notre service à... -
Page 3: Assembly Tips & Warnings
ASSEMBLY TIPS & WARNINGS • Before you begin, read all assembly instructions and safety warnings carefully. • This sauna requires at least 2 adults to complete assembly. • Remove all of the contents from boxes and verify that you have all of the parts shown on the Parts Note: Some parts may be pre-installed or pre-assembled. -
Page 4: Parts Identifier
PARTS IDENTIFIER (NOT TO SCALE) Illustrations Not to Scale FRONT GLASS DOOR RIGHT SIDE PANEL FRONT RIGHT PANEL BACK PANEL LEFT SIDE PANEL 1/16” wood veneer FLOOR ROOF ROOF COVER FLOOR BENCH SEAT HEATER COVER BENCH SUPPORT Pre-installed DOOR HANDLE TOWEL HOOK BACKREST CONTROL PANEL... -
Page 5: Assembly Instructions
ASSEMBLY INSTRUCTIONS 1. Begin assembly by determining an appropriate location for your sauna – see ASSEMBLY TIPS & WARNINGS for details. Place the FLOOR PANEL on the oor in this location. 2. Place the RIGHT SIDE WALL PANEL on the FLOOR PANEL, lining up the SIDE PANEL against the oor trim piece on the backside of the FLOOR. - Page 6 ASSEMBLY INSTRUCTIONS (CONT.) 4. Place the BACK WALL PANEL on the FLOOR as shown and make sure it ts snugly against the RIGHT SIDE WALL PANEL with wall titng into groove and trim overlapping wall, then engage buckles. Place ring over knob and snap buckle closed 5.
- Page 7 ASSEMBLY INSTRUCTIONS (CONT.) 7. Install the BENCH SUPPORT HEATER PANEL between side walls by sliding into two trim pieces on each wall. NOTE: there will be a notch in bottom of BENCH SUPPORT to run black plug from FLOOR HEATER through (see below), so it’s not pinched.
- Page 8 ASSEMBLY INSTRUCTIONS (CONT.) 10A. Lift the ROOF above the sauna and place on top of walls, feeding the control panel and heater cables through the corresponding holes. Secure the ROOF and FLOOR, from interior, with four 1-1/2” (40mm) SCREWS, using pre-drilled holes, two at top of wall panels and two at bottom (location is indicated by arrows below).
- Page 9 ASSEMBLY INSTRUCTIONS (CONT.) 13. Attach the DOOR HANDLE to the GLASS DOOR by assembling together using two 1-1/2” (40mm) SCREWS as shown. 14. Remove the back cover of the OXYGEN IONIZER by turning it as indicated. Unwrap and install the fragrance patch, then reattach the back cover.
-
Page 10: Operation Instructions
OPERATION INSTRUCTIONS SAUNA CONTROL PANEL - 3. Set °C or °F 7. Lights (Inside & Outside) MAIN SCREEN 6. Power Home Screen 5. Temperature & Return to Last Screen Time Readings Volume 2. Heater Switch Reset 1. Power 9. USB 4. -
Page 11: Enjoying Your Sauna
ENJOYING YOUR SAUNA 1. Prior to initial use, wipe down all interior surfaces of the sauna with a damp cloth. 3. Always drink plenty of water before, during and after your sauna session to stay properly hydrated. 4. A normal sauna session should last 30 minutes or less. 5. -
Page 12: Health & Safety Warnings
HEALTH & SAFETY WARNINGS 1. Review all instructions and warnings before operating your sauna. A sauna is not a toy. Serious injury may result from negligence, intentional misuse and failure to follow safety instructions. 2. Hyperthermia Danger: Hyperthermia occurs when the body absorbs more heat than it can emergency and requires immediate treatment to prevent disability or death. -
Page 13: Cleaning & Maintanence
CLEANING & MAINTENANCE 1. Always unplug the sauna and allow it to cool down before performing any cleaning or maintenance. 2. Use furniture polish or furniture oil when cleaning the sauna exterior. 3. The sauna interior surfaces should only be wiped down with a damp cloth. Do NOT use 4. -
Page 14: Sauna Use Disclaimer
TROUBLESHOOTING GUIDE (CONT.) Problem THE CONTROL PANEL DOES NOT WORK 1. Check that all the connections are tight. 2. If the numbers are scrambled or the buttons are unresponsive, Solution replace the Control Panel. 3. If the temperature indicator does not work or reads “--” or “EP”, replace the Control Panel. -
Page 15: Replacement Parts
Please make sure you are looking at the Parts List for your particular model. REPLACEMENT PARTS Rev. 9/19 SA7008 3-PERSON SAUNA WITH 8 CARBON HEATERS REF. # DESCRIPTION PART NUMBER QTY. CARTON FRONT GLASS DOOR SAP7023 RIGHT SIDE PANEL SAP7024 FRONT RIGHT PANEL SAP7025 BACK PANEL... - Page 16 Please make sure you are looking at the Parts List for your particular model. REPLACEMENT PARTS Rev. 9/19 SA7009 4-PERSON SAUNA WITH 9 CARBON HEATERS REF. # DESCRIPTION PART NUMBER QTY. CARTON FRONT GLASS DOOR SAP7023 RIGHT SIDE PANEL SAP7045...
-
Page 17: Warranty Information
SAUNA WARRANTY REGISTRATION CARD 1. This sauna has a 7-Year Limited Warranty against defects in materials and workmanship from date of purchase. To receive the warranty, the card below must the wood structure*. Heating elements and all electronics are covered by a 5-Year Limited Warranty. The radio/CD player (if included with your sauna) is covered by a limited 1-Year Warranty.
