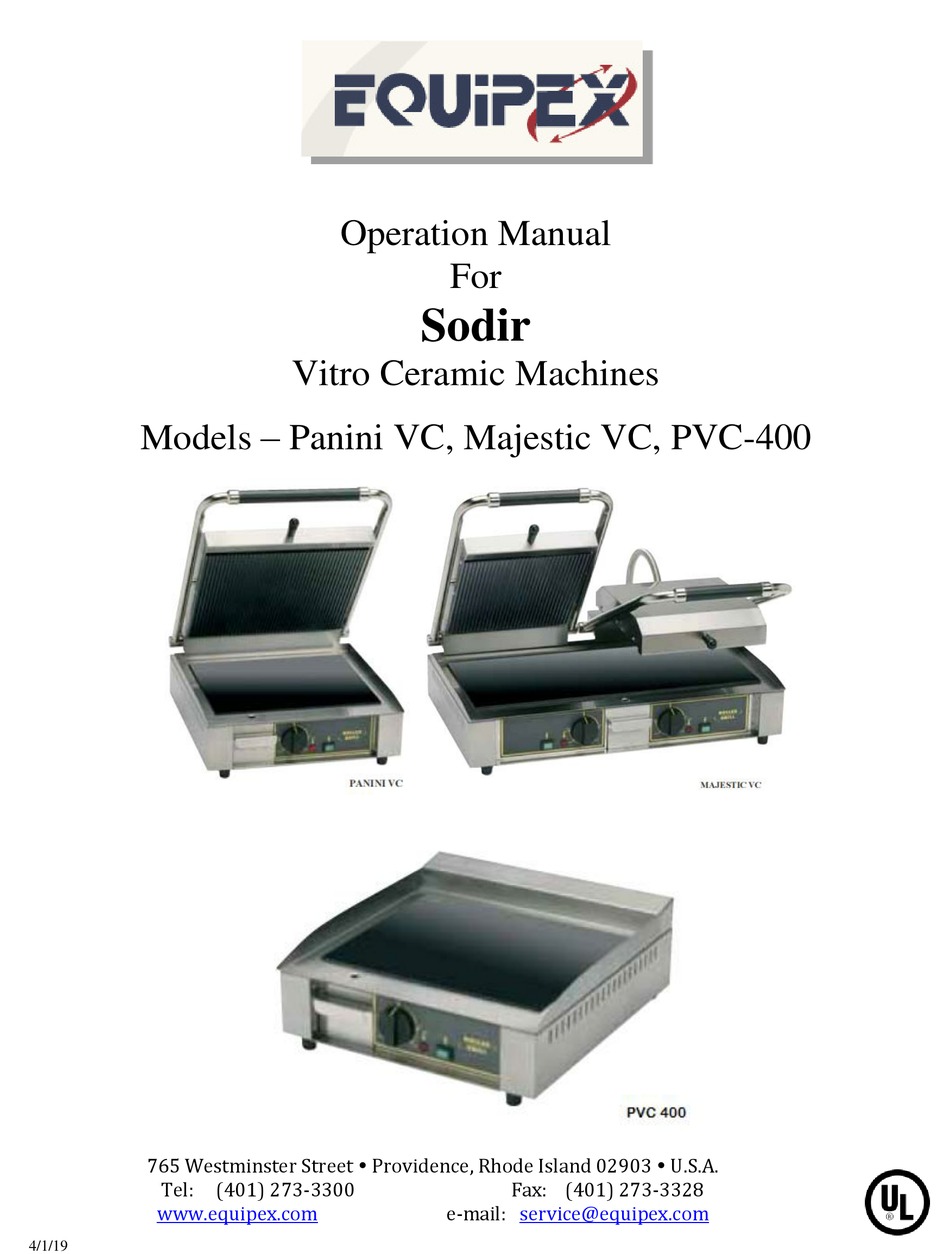

- Page 1 Operation Manual Sodir Vitro Ceramic Machines Models – Panini VC, Majestic VC, PVC-400 765 Westminster Street Providence, Rhode Island 02903 U.S.A. Tel: (401) 273-3300 Fax: (401) 273-3328 www.equipex.com e-mail: service@equipex.com 4/1/19...
-
Page 2: Important Safeguards
IMPORTANT SAFEGUARDS When using electrical appliances, basic safety precautions should always be followed, including the following: 1. Read all the instructions before use. 2. Do not touch hot surfaces; use handles or knobs. 3. To avoid electric shock, do not immerse the power cord, or any part of the unit, in any liquid. 4. - Page 3 INTRODUCTION The SODIR VITROCERAMIC GRILLS — Models PANINI VC, MAJESTIC VC and PVC - 400 — are uniquely designed to offer fast, quality cooking. They are ideal for last minute preparation, as they ensure very quick cooking of sandwiches and such foods as steak, hamburgers, and sausages.
- Page 4 765 Westminster Street, Providence, RI 02903; 401-273-3300; fax 401-273-3328; www.equipex.com Vitroceramic Panini Grills Operational Hints Pre-Heat Time Vitroceramic grills, due to the unique material of the platens - glass with ceramic particles -, allow for heat transfer and cooking with two sources of heat: surface contact and infra-red radiant.
- Page 5 Adjusting Handle Tension WARNING: Disconnect (unplug) electrical power supply before servicing Allow the grill to cool. Remove the spring protection cover, at the top rear of the unit, by unscrewing the two Torx screws, and then pulling it up. With a flat head screwdriver, tighten or loosen the screws on the handle straps until the desired tension is achieved.
- Page 6 If you have trouble locating a service agency in your area, please consult our website at http://www.equipex.com/, or call us at 1-800-649-7885 and ask for customer service. These models must be taken to a service facility; in -store service is not covered.
- Page 7 Face Plate – Panini, PVC-400...
- Page 8 ..7igriANFigiWiligtrONVO.7 PVC-400, Panini, 120V Lighted Switch Thermostat Top Heating Element Bottom Heating Element Orange Pilot Light Two Hole Terminal Block Three Hole Terminal Block High Limit Thermostat...
- Page 9 Majestic VC 220V Switch Thermostat Top Heating Element Bottom Heating Element Green Pilot Light Orange Pilot Light Two Hole Terminal Block Three Hole Terminal Block High Limit Thermostat...
- Page 10 Spare parts PS-400 VC 110 V DWG # Part Number Qty Spare part 53100 Hole cover A16013 Three holes domino A16012 Two holes domino A07033 Pushing switch A08003-1 Orange pilot light A06042 Thermostat A14078 Knob A13003 Foot B07001 Compression spring 37234 Ceramic chamber lock 37242...
- Page 11 Spare parts PANINI VC 110 V DWG # Part Number Qty Spare part D06001 Ceramic chamber F01064 Handle assembly A15008 Top plate handle 37240 Stainless steel cover B04027 Handle strap A16013 Three holes domino A16012 Two holes domino A07033 Pushing switch A08003-1 Orange pilot light A06042...
- Page 12 Spare Parts MAJESTIC VC 220 DWG# Part Number Spare part D06002 Ceramic chamber F01063 Handle assembly A15008 Top plate handle 37251 Stainless steel cover B04027 Handle strap A16013 Three holes domino A16012 Two holes domino A07033 Pushing switch A08003 Orange pilot light A06042 Thermostat A14078...
-
Page 13: Limited Warranty
This warranty applies only to equipment under normal use and service in the U.S.A. and Canada. It does not apply to any item which has been repaired or altered in any way so as, in the judgment of EQUIPEX, to affect its reliability.
