- Page 1 Instruction for Dynafix base for CMM 3R-770.6-1 / 3R-770.46-1 I-814-E 02.12 i814e.DOC ב...
-
Page 2: Table Of Contents
This instruction applies for 3R-article: Article number 3R-770.6-1 / 3R-770.46-1 Quality certificate C-00846-02.12 / C-00847-02.12 System 3R International AB Sorterargatan 1 S-162 50 Vällingby Sweden System 3R International 1997 © System 3R International AB I-814-E 02.12 Subject to modifications... -
Page 3: General

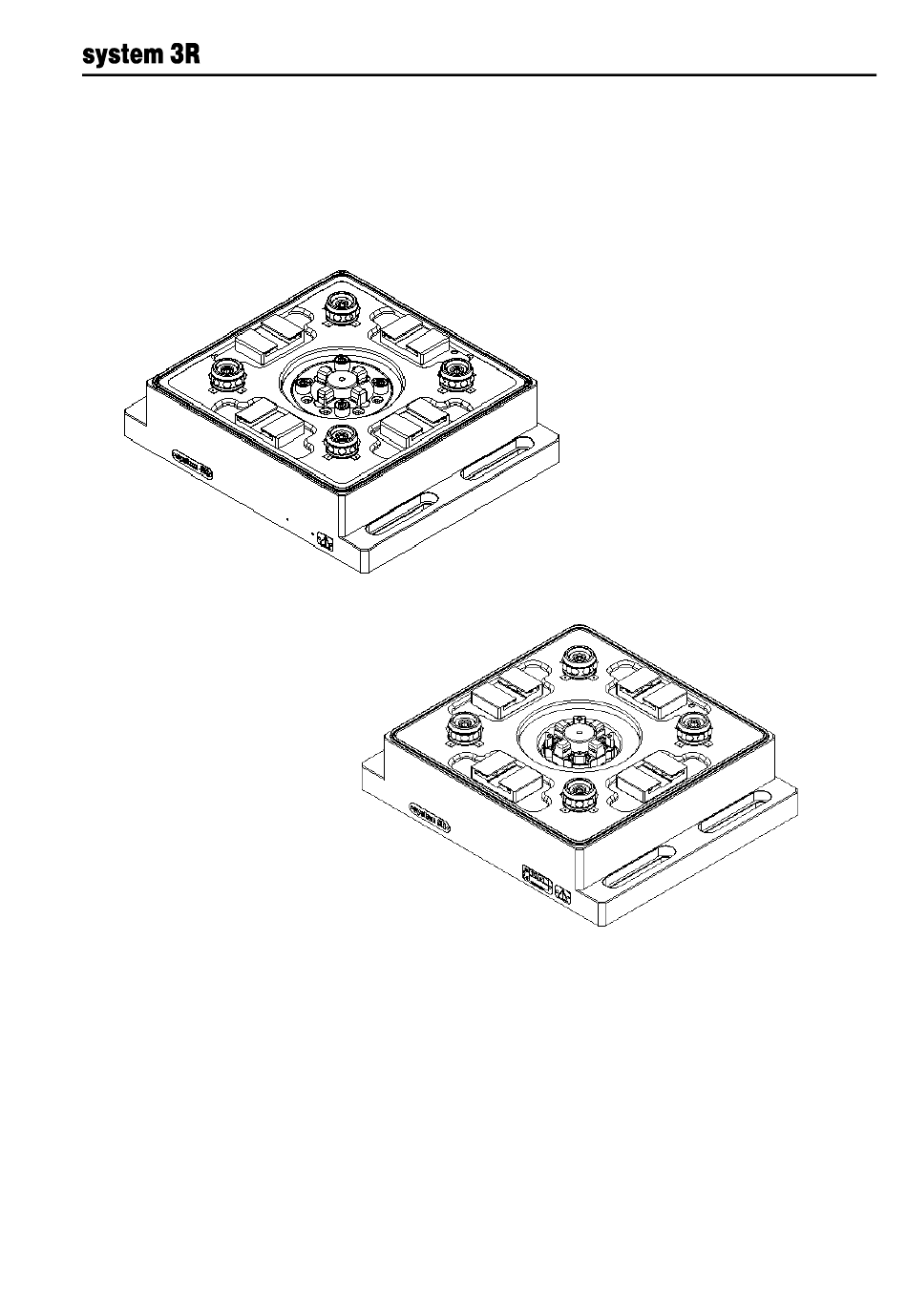

Repetition Accuracy 0.002 mm Max. Weight of workpiece 250 kg* Clamping force 60 kN Weight 37 kg Specification - Macro (valid for 3R-770.6-1) Repetition Accuracy 0.002 mm Max. Weight of workpiece 50 kg* Clamping force 7 kN Drawbar - Macro 3R-605.1... - Page 4 3R-770.6-1 / 3R-770.46-1 Instruction for Dynafix base for CMM References (display of 3R-770.46-1) X / Y flexing lips Chuck in center Z (4x4) Dimensions Z-refs Accessory Master pallet (F) 3R-776.1 Master unit Junior 3R-406.11 Master unit Macro 3R-606.1 Control Unit (2x) 3R-611.41...
-
Page 5: Function
3R-605.1 Drawbar Junior 3R-405.11 Drawbar Macro Combi 3R-405.16 ** For additional Accessories, see a current System 3R catalogue or contact your nearest System 3R representative. Function Air Connections The automatic table chuck is designed for mounting on the machine table. A control unit is used to maneuver the chuck with compressed air. - Page 6 3R-770.6-1 / 3R-770.46-1 Instruction for Dynafix base for CMM Closing sequence / clamp The Dynafix base is closed mechanically by four spring loaded pistons and is also similar for chuck in center. The locking force is increased with the aid of compressed air, the Turbo function.
- Page 7 Instruction for Dynafix base for CMM 3R-770.6-1 / 3R-770.46-1 Closing and opening sequence with air gun 1. Release enclosed air pressure in Turbo chamber, with a finger or other aid, by pressing the valve at connection ”Turbo” (2) for Dynafix and (12) for chuck in center.
-
Page 8: Installation
3R-770.6-1 / 3R-770.46-1 Instruction for Dynafix base for CMM Installation The chuck is mounted onto the machine table in a suitable working position. At installation, master pallet and dial indicator is required. Check that the machine table is plane before mounting. -
Page 9: Alignment
Instruction for Dynafix base for CMM 3R-770.6-1 / 3R-770.46-1 2. Connect air tubes from (1), (2), (11) and (12) to control units. (Use PU-4 air tube, dimension 6x1 mm). 3. Connect air supply as instructed for Control units, see instruction valid for the unit(s). - Page 10 3R-770.6-1 / 3R-770.46-1 Instruction for Dynafix base for CMM Locate the center of the chuck Center of the chuck can be found by indicating on the reference hole. Distance to the Z-references The Z-height of the chuck is found by indicating on the Z-references.
-
Page 11: Maintenance
Instruction for Dynafix base for CMM 3R-770.6-1 / 3R-770.46-1 Maintenance Note! Do not disassemble the chuck without service instructions and special tools. Incorrect disassembly can damage the chuck. General care Lubricate the table chuck to avoid rusting. Difficulties in operating the chuck are often due to faulty O-rings. - Page 12 3R-770.6-1 / 3R-770.46-1 Instruction for Dynafix base for CMM 3. Remove the retaining ring with pliers. Work with one piston at a time. 4. Remove the top cover with the aid of a magnet. Check O- ring (H), replace if necessary.
-
Page 13: Checking Springs And O-Ring - Macro Or Combi
Instruction for Dynafix base for CMM 3R-770.6-1 / 3R-770.46-1 1. Lubricate the cylinder surfaces and all parts of the chuck house with Klüber Barrieta L 55/2 or equivalent. Mount the springs as shown below. Parts and surfaces are to be generously lubricated. -
Page 14: Parts List
3R-770.6-1 / 3R-770.46-1 Instruction for Dynafix base for CMM Parts list Description Article no. Quantity Seal (A) 20829-00 Screw 12.9 (B) MC6S-12x35 Washer (C) 10138-00 Air nipple (D) 45800-S021 Spring (G) 45700-B016 O-ring (H) O-82.14x3.53 O-ring (I) O-90.0x2.0 © System 3R International AB...
