HDMI 2.0 Repeater with Audio
Extraction
User's Guide
P/N: HDAudExt
G4-0050A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HDAudExt and is the answer not in the manual?

Questions and answers

Summary of Contents for gofanco HDAudExt

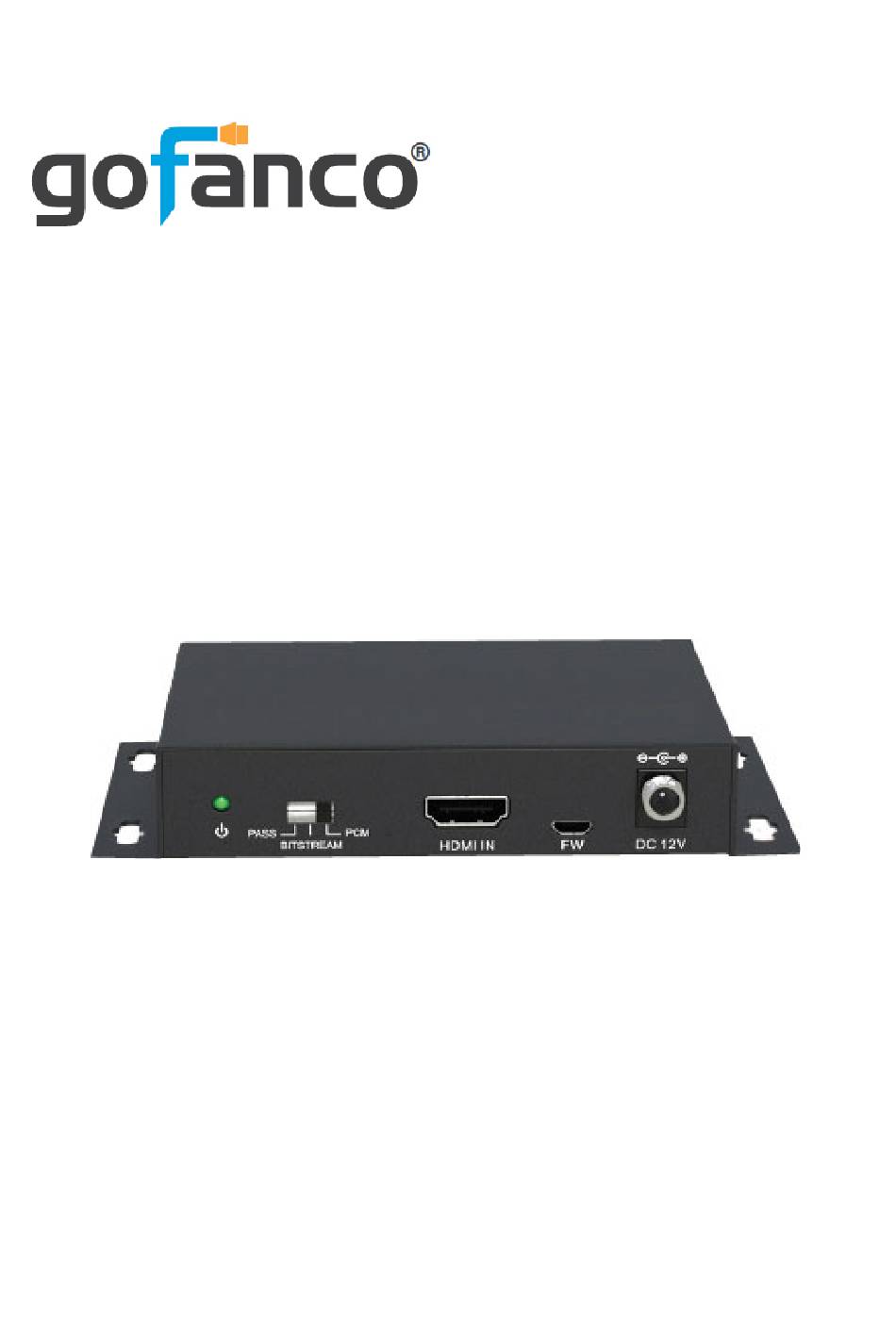

  • Page 1 HDMI 2.0 Repeater with Audio Extraction User's Guide P/N: HDAudExt G4-0050A...
  • Page 2 Thank you for purchasing from gofanco. Our products aim to meet all your connectivity needs wherever you go. For optimum performance and safety, please read the instructions carefully and keep this User’s Guide for future reference. If you need more information about our products, please visit www.gofanco.com.
  • Page 3 • Shut off power and make sure environment is safe before installation • Do not plug the HDMI cables in/out when the device is in use to avoid cable damage. Make sure they are plugged into the correct ports • Use the included power adapter only.
  • Page 4 Introduction The HDMI 2.0 Repeater with Audio Extraction is designed to extract audio from a 4K HDMI signal to stereo balanced L/R audio, analog RCA, and coaxial digital audio output ports. Features • Supports stereo balanced L/R audio, analog RCA, and coaxial digital audio output ports •...
  • Page 5: Installation Requirements

    Installation Requirements HDMI source device (computer, Blu-Ray/ DVD player, XBOX, PS3, etc) HDMI display device (SDTV/Monitor, HDTV/Monitor, projector, etc.) Speakers, Amplifier Product Layout Red: The unit is powered on 1. LED (dual color) Green: HDMI input signal detected Pass (default): The source device reads EDID from the display Bitstream: Source audio is DTS/Dolby and the display only supports PCM.
  • Page 6: Hardware Installation

    Hardware Installation Power off all devices including your HDMI source and HDMI display(s). Connect your HDMI source device to the Repeater's HDMI Input connector with an HDMI cable (HDMI cable not included). Connect your HDMI display to the HDMI ouput connector with a HDMI cable (HDMI cable not included).
  • Page 7 Application...
  • Page 8: Troubleshooting

    Troubleshooting Problem Potential Cause Solution Check whether the The HDMI cables may not HDMI cables are be connected properly or connected properly and may be damaged in good working condition Color loss or no video signal on HDMI display Make sure the The display is not resolution of the compatible with the...
  • Page 9: Specifications

    Specifications 1 Input, 19-Pin, Type-A, Female HDMI Connector 1 Output, 19-Pin, Type-A, Female HDMI input: HDCP 2.2 HDCP Version HDMI output: HDCP 1.4 Stereo balanced L/R, Analog L+R, Audio Output Coax digital Audio Connector 5-Pin Phoenix, RCA, Coaxial audio Dolby (True HD), DTS (HD-Master Audio Format Audio), PCM Bandwidth...
  • Page 10 Blank Page...
  • Page 11 Disclaimer The product name and brand name may be registered trademarks of related manufacturers. TM and ® may be omitted on the user’s guide. The pictures on the user’s guide are just for reference, and there may be some slight differences with the actual products.
  • Page 12 Thank you for choosing gofanco www.gofanco.com...
