Summary of Contents for PerfecTron OXY5336A

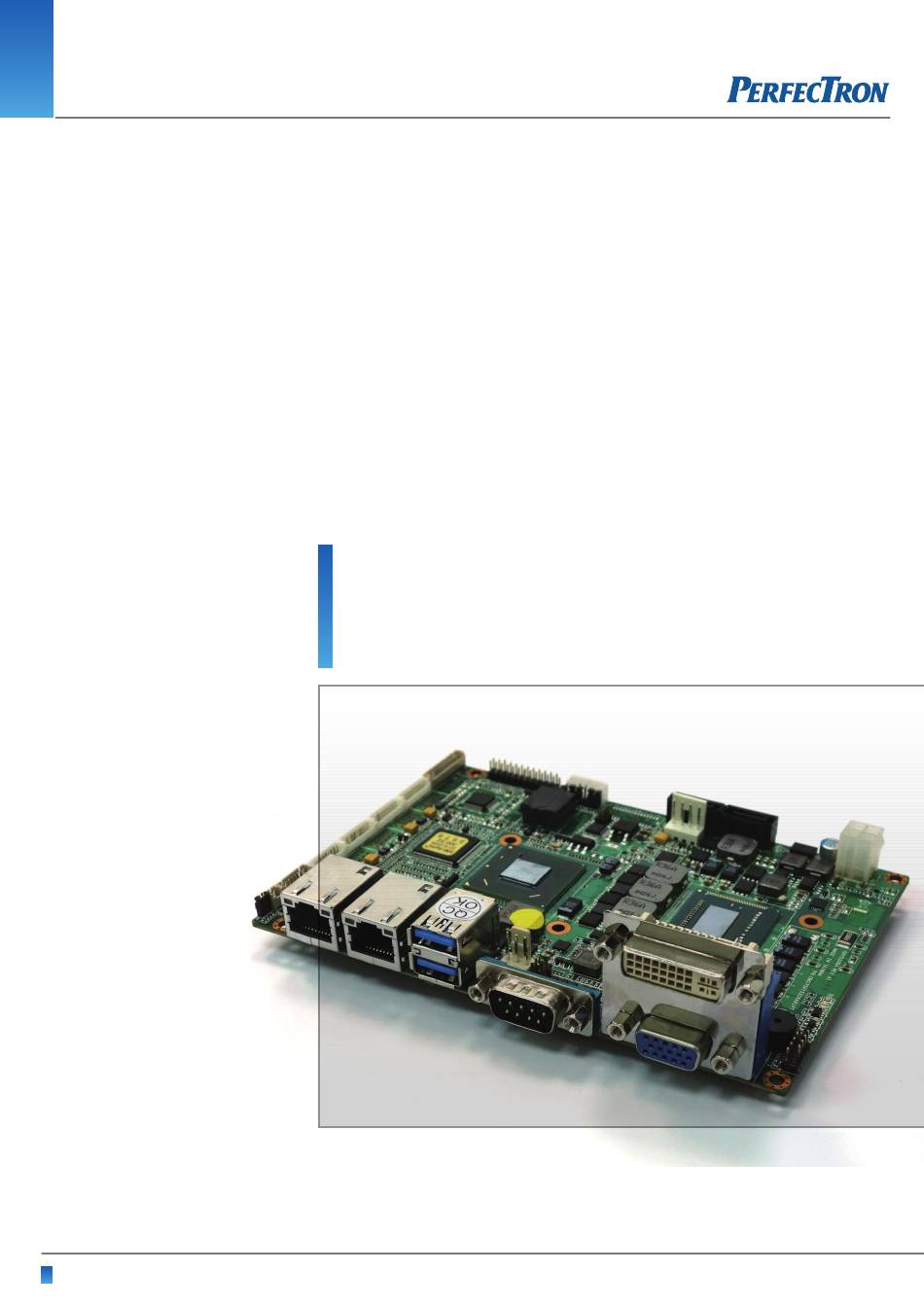

- Page 1 Version 1.0 Revision Date: June. 05. 2013 User’s Manual OXY5336A 3.5" SBC with Intel Ivy Bridge+HM76 User’s Manual www.perfectron.com...
-
Page 2: Safety Information
OXY5336A 3.5" SBC User’s Manual Safety Information Electrical safety • To prevent electrical shock hazard, disconnect the power cable from the electrical outlet before relocating the system. • When adding or removing devices to or from the system, ensure that the power cables for the devices are unplugged before the signal cables are connected. -
Page 3: Revision History
OXY5336A 3.5" SBC User’s Manual Revision History Revision Date Changes (dd.mm.yyyy) Version 1.0 05.06.2013 Initial release Packing list □ OXY5336A 3.5” SBC □ CD (Driver + user's manual) □ Optional Accessories Cable kit Thermal kit: Active heatsink (up to 60°C) ... -
Page 4: Table Of Contents
OXY5336A 3.5" SBC User’s Manual Table of Contents Safety Information ................................ 1 Electrical safety ................................. 1 Operation safety ................................1 Statement ..................................1 Revision History ................................2 Packing list ..................................2 Chapter 1: Product Information ............................. 5 1.1 Block Diagram ................................5 1.2 Key Features ................................ - Page 5 OXY5336A 3.5" SBC User’s Manual 3.2 Navigation Keys ................................ 19 3.3 Main ..................................20 3.4 Advanced ................................... 21 3.4.1 ACPI Settings ..............................22 3.4.1.1 ACPI Sleep State ............................22 3.4.2 Trusted Computing ............................23 3.4.2.1 Configuration ............................. 23 3.4.3 CPU Configuration ............................. 24 3.4.3.1 CPU Configuration .............................
-
Page 6: Chapter 1: Product Information
OXY5336A 3.5" SBC User’s Manual Chapter 1: Product Information 1.1 Block Diagram www.perfectron.com... -
Page 7: Key Features
OXY5336A 3.5" SBC User’s Manual 1.2 Key Features Processor & System CPU Type Intel® Ivy Bridge 22nm Core™ i7/i5/i3, BGA type Core™ i7-3517UE (2C x 1.7 GHz), 4M L2 cache (17W) Core™ i5-3610ME (2C x 2.7 GHz), 3M L2 cache (35W) Core™... - Page 8 OXY5336A 3.5" SBC User’s Manual Internal I/O SATA 2 x SATAIII (6 Gb/s) 8 x USB 2.0 ports by pin header 3 x COM ports (COM 1, 3, 4 ports support RS232 by pin header) Audio Mic-in, Line-in, Line-out 1 x CPU fan...
-
Page 9: Board Placement
OXY5336A 3.5" SBC User’s Manual 1.3 Board Placement www.perfectron.com... -
Page 10: Mechanical Drawing
OXY5336A 3.5" SBC User’s Manual 1.4 Mechanical Drawing www.perfectron.com... -
Page 11: Chapter 2: Jumpers And Connectors
OXY5336A 3.5" SBC User’s Manual Chapter 2: Jumpers and Connectors 2.1 Onboard connector and jumper list Label Function AT/ATX selection LCD Backlight voltage selection LCD Panel voltage selection COM2 Ring/ +5V/ +12V selection CN37 Front Panel connector CN26 LPT port connector... -
Page 12: Connector And Jumper Pin Definition
OXY5336A 3.5" SBC User’s Manual 2.2 Connector and jumper pin definition JP6: AT/ATX selection Jumper Function description AT Mode ATX Mode JP7: LCD Backlight voltage selection Jumper Function description Setting Default setting: 2-3 JP8: LCD Panel voltage selection Jumper Function description Setting 3.3V... -
Page 13: Cn37: Front Panel Connector
OXY5336A 3.5" SBC User’s Manual CN37: Front Panel connector Pin Definition Pin Definition HDD+ HDD- Power button Reset button 8 FP_SPKR CN26: LPT port connector Pin Definition Pin Definition P_STB# P_AUTOFD# P_PTD0 P_ERROR# P_PTD1 P_PINIT# P_PTD2 P_SLCTIN# P_PTD3 P_PTD4 P_PTD5... -
Page 14: Cn17: Audio Connector
OXY5336A 3.5" SBC User’s Manual CN17: Audio connector Pin Definition MIC1-L MIC1-R LINE1-L LINE1-R FRONT-L FRONT-R CN21/ CN22/ CN23: COM port RS232 connector Pin Definition +V5S S_RI# S_DTR# S_CTS# S_TXD S_RTS# S_RXD S_DSR# S_DCD# CN28/ CN29/ CN30/ CN31: USB connector... -
Page 15: Cn7: Lvds Connector
OXY5336A 3.5" SBC User’s Manual CN7: LVDS connector Pin Definition Pin Definition LVDSB_CLK LVDSB_CLK# LVDSA_DATA3 LVDSA_DATA3# LVDSB_DATA3 LVDSB_DATA3# 10 LVDSA_CLK LVDSB_DATA2 LVDSA_CLK# LVDSB_DATA2# 14 LVDSB_DATA1 LVDSA_DATA2 LVDSB_DATA1# 18 LVDSA_DATA2# LVDSB_DATA0 LVDSA_DATA1 LVDSB_DATA0# 22 LVDSA_DATA1# LVDSA_DATA0 1_LVDS_SCLK LVDSA_DATA0# 1_LVDS_SDATA 28 LVCC0... -
Page 16: Cn24: Rs232/422/485 Com Port Connector
OXY5336A 3.5" SBC User’s Manual CN24: RS232/422/485 COM port connector Pin RS-232 RS-422 Half Duplex RS-485 DCD# TXD- RXD+ TXD+ DTR# RXD- DSR# RTS# CTS# RI# (Define by JP5) RI# (Define by JP5) RI# (Define by JP5) CN5: DVI+VGA Pin Definition Pin Definition Pin Definition... -
Page 17: Cn32: Dual Usb3.0 Connector
OXY5336A 3.5" SBC User’s Manual CN32: Dual USB3.0 connector Upper USB Lower USB Pin Definition Pin Definition +V5A +V5A SSRX- SSRX- SSRX+ SSRX+ GND_DRAIN 7 GND_DRAIN SSTX- SSTX- SSTX+ SSTX+ CN4/ CN6: LAN connector Definition R1 LAN_MDI0P R2 LAN_MDI0N R3 LAN_MDI1P... -
Page 18: Cn11: Mini-Pcie
OXY5336A 3.5" SBC User’s Manual CN11: MINI-PCIE Pin Definition Pin Definition WAKE# 3.3V +1.5V CLKREQ# UIM_PWR UIM_DATA PCIE_MINI1_100M_N 12 UIM_CLK PCIE_MINI1_100M_P 14 UIM_RESET UIM_VPP CARD_EN MINI_RST# +3.3VAUX +1.5V SCLK0 SDATA0 USB_D- USB_D+ 3.3V 3.3V +1.5V 3.3V CN19: 12V DC connector... -
Page 19: Cn13: Msata
OXY5336A 3.5" SBC User’s Manual CN13: MSATA Pin Definition Pin Definition WAKE# +3.3VAUX +1.5V CLKREQ# REFCLK- REFCLK+ Wireless LAN Disable# RESET# PERN0 +3.3VAUX PERP0 +1.5V SMBUS CLOCK PETN0 SMBUS DATA PETP0 USB DATA- USB DATA+ +3.3VAUX +3.3VAUX +1.5V MCARD_DISABLE 52 +3.3V VAUX... -
Page 20: Chapter 3: Ami Bios Utility
OXY5336A 3.5" SBC User’s Manual Chapter 3: AMI BIOS UTILITY This chapter provides users with detailed descriptions on how to set up a basic system configuration through the AMI BIOS setup utility. 3.1 Starting To enter the setup screens, perform the following steps: ... -
Page 21: Main
OXY5336A 3.5" SBC User’s Manual 3.3 Main The Main menu is the first screen that you will see when you enter the BIOS Setup Utility. System Language Use this function to select the system language. www.perfectron.com... -
Page 22: Advanced
OXY5336A 3.5" SBC User’s Manual System Date Use this function to change the system date. Select System Date using the Up and Down <Arrow> keys. Enter the new values through the keyboard. Press the Left and Right <Arrow> keys to move between fields. -
Page 23: Acpi Settings
OXY5336A 3.5" SBC User’s Manual 3.4.1 ACPI Settings System ACPI parameters 3.4.1.1 ACPI Sleep State ACPI Sleep State Select ACPI sleep state the system will enter when the SUSPEND button is pressed. www.perfectron.com... -
Page 24: Trusted Computing
OXY5336A 3.5" SBC User’s Manual 3.4.2 Trusted Computing Trusted Computing Settings 3.4.2.1 Configuration Security Device Support Enables or disables BIOS support for security device. O.S. will not show security device. TCG EFI protocol and INT1A interface will not be available. -
Page 25: Cpu Configuration
OXY5336A 3.5" SBC User’s Manual 3.4.3 CPU Configuration CPU configuration parameters 3.4.3.1 CPU Configuration www.perfectron.com... -
Page 26: Sata Configuration
OXY5336A 3.5" SBC User’s Manual 3.4.4 SATA Configuration SATA device options settings 3.4.4.1 SATA Mode Selection Determines how SATA controllers operate. www.perfectron.com... -
Page 27: F81866 Super Io Configuration
OXY5336A 3.5" SBC User’s Manual 3.4.5 F81866 Super IO Configuration System Super IO chip parameters 3.4.5.1 Serial Port Configuration Set parameters of serial port (COM) www.perfectron.com... - Page 28 OXY5336A 3.5" SBC User’s Manual 3.4.5.1.1.1 Serial Port Configuration Serial Port Enable or disable serial port (COM) Change Setting Select an optimal setting for Super IO device Mode RS232, RS-422, RS-485 selection www.perfectron.com...
-
Page 29: Serial Port Configuration
OXY5336A 3.5" SBC User’s Manual 3.4.5.1.1 Serial Port Configuration Serial Port Enable or disable serial port (COM) Change Settings Select an optimal setting for Super IO device. www.perfectron.com... -
Page 30: Parallel Port Configuration
OXY5336A 3.5" SBC User’s Manual 3.4.5.2 Parallel Port Configuration Set Parameters of parallel port (LPT/LPTE) 3.4.5.2.1 Parallel Port Configuration Parallel Port Enable or disable parallel port (LPT/LPTE) www.perfectron.com... -
Page 31: Gpio Configuration
OXY5336A 3.5" SBC User’s Manual Change Settings Select an optimal setting for Super IO device Device Mode Change the printer port mode 3.4.5.3 GPIO Configuration GPIO configuration settings www.perfectron.com... -
Page 32: Gpio Configuration
OXY5336A 3.5" SBC User’s Manual 3.4.5.3.1 GPIO Configuration General Purpose I/O General purpose I/O and parallel port share the same pins. Enable this function will force parallel port to be disabled! 3.4.6 Serial Port Console Redirection Serial port console redirection... -
Page 33: Console Redirection
OXY5336A 3.5" SBC User’s Manual 3.4.6.1 Console Redirection Console Redirection Console redirection enable or disable Console Redirection settings The settings specify how the host computer and the remote computer (which the user is using) will exchange data. Both computers should have the same or compatible settings. -
Page 34: Console Redirection Settings
OXY5336A 3.5" SBC User’s Manual 3.4.6.1.1 Console Redirection settings Out-of-Band Mgmt Port Microsoft Windows Emergency Management Services (EMS) allows for remote management of a Windows Server OS through a serial port. Terminal Type VT-UTF8 is the preferred terminal type for out-of-band management. The next best choice is VT100+ and then VT100. -
Page 35: Intel (R) 82579Lm Gigabit Network Connection
OXY5336A 3.5" SBC User’s Manual 3.4.7 Intel (R) 82579LM Gigabit Network Connection Configure Gigabit Ethernet device parameters 3.4.7.1 Port Configuration Menu NIC configuration Click to configure the network device port www.perfectron.com... -
Page 36: Nic Configuration
OXY5336A 3.5" SBC User’s Manual Blink LEDs (range 0-15 seconds) Blink LEDs for the specified duration (up to 15 seconds) 3.4.7.1.1 NIC configuration Link Speed Change link speed and duplex for current port Wake on LAN Enable this option to wake the system with a magic packet... -
Page 37: Intel (R) 82574L Gigabit Network Connection
OXY5336A 3.5" SBC User’s Manual 3.4.8 Intel (R) 82574L Gigabit Network Connection Configure Gigabit Ethernet device parameters 3.4.8.1 Port Configuration Menu www.perfectron.com... -
Page 38: Link Speed
OXY5336A 3.5" SBC User’s Manual NIC configuration Click to configure the network device port Blink LEDs (range 0-15 seconds) Blink LEDs for the specified duration (up to 15 seconds) 3.4.8.1.1 Link Speed Link Speed Change link speed and duplex for current port... -
Page 39: Chipset
OXY5336A 3.5" SBC User’s Manual 3.5 Chipset This section gives you functions to configure the system based on the specific features of the chipset. The chipset manages bus speeds and access to system memory resources. System Agent (SA) System Agent (SA) parameters... -
Page 40: System Agent (Sa)
OXY5336A 3.5" SBC User’s Manual 3.5.1 System Agent (SA) VT-d Check to enable VT-d function on MCH Graphics Configuration Config graphics settings Memory Configuration Memory configuration parameters www.perfectron.com... -
Page 41: Graphics Configuration
OXY5336A 3.5" SBC User’s Manual 3.5.1.1 Graphics Configuration 3.5.1.1.1 LCD Contol Primary IGFX Boot Display Select the video device which will be activated during POST. This has no effect if external graphics present. Secondary boot display selection will appears based on your selection. VGA modes will be supported only on primary display. -
Page 42: Memory Information
OXY5336A 3.5" SBC User’s Manual Second IGFX Boot Display Select secondary display device LCD Panel Type Select LCD panel used by internal graphics device by selecting the appropriate setup item. Panel Color Depth Select the LFP panel color depth 3.5.1.2 Memory Information... -
Page 43: Boot
OXY5336A 3.5" SBC User’s Manual 3.6 Boot This section is used to configure the boot features. Setup Prompt Timeout Number of seconds to wait for setup activation key. 65535 (0xFFFF) means indefinite waiting. Bootup NumLock State Select the keyboard NumLock state... -
Page 44: Csm Parameters
OXY5336A 3.5" SBC User’s Manual 3.6.1 CSM parameters Launch PXE OpROM policy Controls the execution of UEFI and Legacy PXE OpROM. Launch Storage OpROM policy Controls the execution of UEFI and legacy storage OpROM www.perfectron.com... -
Page 45: Security
OXY5336A 3.5" SBC User’s Manual 3.7 Security Use the Security Menu to establish system passwords Administrator Password Set administrator password. User Password Set User Password. www.perfectron.com... -
Page 46: Save And Exit
OXY5336A 3.5" SBC User’s Manual 3.8 Save and exit This screen provides functions for handling changes made to the BIOS settings and the exiting of the Setup program. Save Changes and Exit Exit system setup after saving the changes Discard Changes and Exit... - Page 47 OXY5336A 3.5" SBC User’s Manual Restore User Defaults Restore the user defaults to all the setup options Lauch EFI Shell from filesystem device Attempts to Launch EFI shell application (Shellx64.efi) from one of the available filesystem devices www.perfectron.com...
