Summary of Contents for Langer P1202

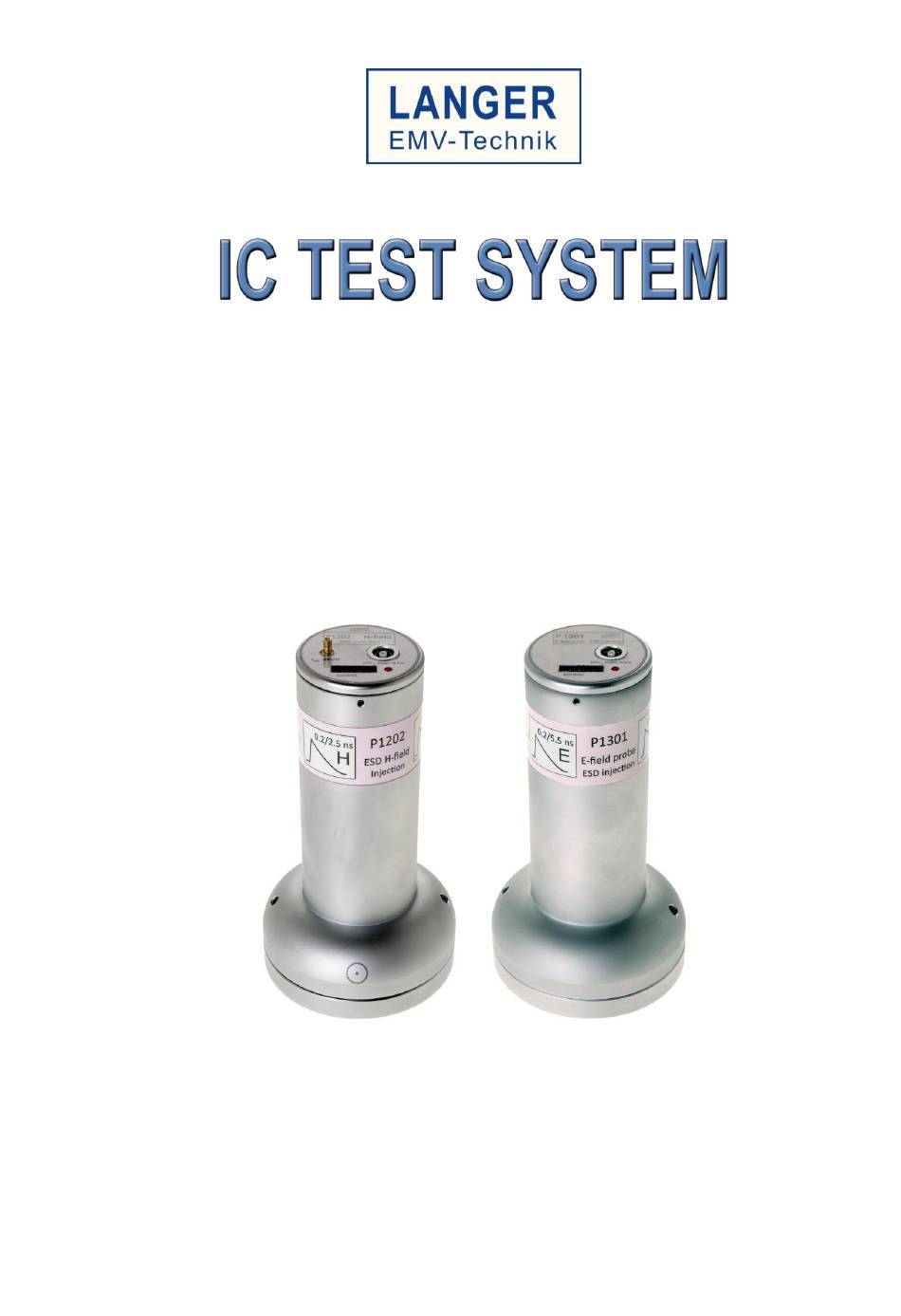

- Page 1 User Manual P1202 / P1301 L-ESD set ESD Langer Pulse H 0.2/2.5 E 0.2/5.5 ns Field Coupling IC immunity test against ESD electric and magnetic field Copyright © Februar 2020 LANGER EMV-Technik GmbH - Translation of the original user manual -...
-
Page 2: Table Of Contents
FKE 30 Field Chamber Insert P1301 – Electric Field Source EPM 02 and BPM 02 Field Meters D70 h10 and D70 h03 Spacer Rings Set-up of the P1202 / P1301 L-ESD Set Orientation of the Field Sources Start-up, Measurement and Calibration Measuring Devices... - Page 3 LANGER DE-01728 Bannewitz mail@langer-emv.de P1202 / P1301 L-ESD set EMV-Technik www.langer-emv.com Quick Start Pulse-Current Measurement (only P1202) Calibration of the Measurement Set-up Measurement Sequence BPS 203-Client Software Installation Software Client – General Notes Pulse Configuration Setting of a Defined Pulse Counter...
-
Page 4: Declaration Of Conformity
Langer EMV-Technik GmbH Nöthnitzer Hang 31 01728 Bannewitz, Germany Die Langer EMV-Technik GmbH bescheinigt die Konformität für das Produkt The Langer EMV-Technik GmbH herewith declares conformity of the product Langer EMV-Technik GmbH déclare la conformite du produit Bezeichnung / Product name / Designation:... -
Page 5: General Information
General Information Storage of the User Manual This user manual enables the safe and efficient use of the P1202 / P1301 L-ESD set. It must be kept close at hand and accessible to the user. Reading and Understanding the User Manual Read the user manual carefully, observe the safety information (Section 5.3) and follow the... -
Page 6: Description Of Symbols
LANGER DE-01728 Bannewitz mail@langer-emv.de P1202 / P1301 L-ESD set EMV-Technik www.langer-emv.com Description of Symbols Warning signs Prohibition Signs General warning sign No access for people with active implanted cardiac devices Warning, Electricity 6 - 35... -
Page 7: Scope Of Delivery
15 System Case P1202 / P1301 case 16 User Manual P1202 / P1301 m 17 Quick Guide ---------------------------------------------------------------------------------------------------------------------------------- Important: The scope of delivery may deviate depending on the respective order! Figure 1: Case of P1202 / P1301 L-ESD set 7 - 35... -
Page 8: Technical Parameters
Shunt -26 dB Ω Current correction factor R Connector – input 50 Ω Fischer (D103A023) Table 1: P1202 general parameters P1202 L-ESD – Magnetic Flux Density B ���� in kV in V iout �� in A D70 h03 spacer, height h = 3 mm 0.293 0.586 0.878 1.17... -
Page 9: P1301 L-Esd - General Parameters
LANGER DE-01728 Bannewitz mail@langer-emv.de P1202 / P1301 L-ESD set EMV-Technik www.langer-emv.com P1301 L-ESD – General Parameters Dimensions (height/width/depth) (180 x 96 x 96) mm Weight 700 g Pulse parameter Shape 0.2 / 5.5 ns 0.1 Hz – 10 Hz Frequency Voltage ±... -
Page 10: Bpm 02 Db/Dt Field Meter
LANGER DE-01728 Bannewitz mail@langer-emv.de P1202 / P1301 L-ESD set EMV-Technik www.langer-emv.com BPM 02 dB/dt Field Meter Frequency range 500 kHz - 3 GHz B ̇ = K ∙ u Magnetic flux density B calculation based on the voltage u K = 122 dB ( V ∙... -
Page 11: Intended Use
Intended Use The P1202 ESD magnetic field source and P1301 ESD electric field source can be used to test the immunity of integrated circuits (ICs) against magnetic and electric ESD fields, respectively. The P1202 generates a magnetic ESD field and the P1301 field source generates an electric ESD field. -
Page 12: Risks If Not Used For Its Intended Purpose
Warning! Incorrect use of the P1202 / P1301 L-ESD set may put the user at risk, damage the L-ESD set and/or the technical equipment connected to the L-ESD set. Examples of improper use that may put persons/equipment at risk: Safety devices are bypassed or rendered ineffective. - Page 13 Always check any attachments, measuring devices, cables, field meters and sources before using the P1202 / P1301 L-ESD set. Never use any damaged or defective devices. Do not connect or disconnect any cables whilst the P1202 / P1301 L-ESD set is in operation.
- Page 14 LANGER DE-01728 Bannewitz mail@langer-emv.de P1202 / P1301 L-ESD set EMV-Technik www.langer-emv.com Material damage due to high intensity electromagnetic fields! Risk of damaging or destroying the test IC (latch-up)! Caution! Protect the test IC by e.g.: - connecting a protective resistor in the test IC’s incoming power supply, - increasing the intensity gradually and stopping when a functional fault occurs or - interrupting the power supply to the test IC in the event of a latch-up.
-
Page 15: Overview Of P1202 / P1301 L-Esd Set
EMV-Technik www.langer-emv.com Overview of P1202 / P1301 L-ESD Set System Description Figure 2: Set-up of P1202 probe. All devices which are not included in the scope of delivery are marked with an asterisk (*). Name Description P1202 Generates the H-field injected into the DUT... -
Page 16: Bps 203 Burst Power Station
LANGER DE-01728 Bannewitz mail@langer-emv.de P1202 / P1301 L-ESD set EMV-Technik www.langer-emv.com BPS 203 Burst Power Station The BPS 203 is used as a high voltage supply and control unit for the L-ESD field sources. The BPS 203 is connected to a computer with windows operating system. - Page 17 LANGER DE-01728 Bannewitz mail@langer-emv.de P1202 / P1301 L-ESD set EMV-Technik www.langer-emv.com Socket Description Signal Cable socket High-voltage power supply and HV Socket Probe communication Power input for BPS 203 and the attached probe Power Supply USB Port USB-B port to connect BPS 203 to a PC...
-
Page 18: P1202 Magnetic Field Source
Figure 6: P1202 ESD field source with 3 cm long electric conductor On the inside of the P1202 ESD field source (see Figure 3), the HV power input is connected to the pulse shaping circuit. The output of the pulse shaping circuit is connected to the electric conductor located at the bottom of the field source. - Page 19 EMV-Technik www.langer-emv.com Figure 7: Principle of the immunity measurement using the P1202 field source (magnetic field) Figure 7 shows the basic measurement principle. The field source, the spacer ring, the field chamber insert and the ground plane with the test IC form a field chamber. This field chamber limits and shields the generated magnetic field.
-
Page 20: Fke 30 Field Chamber Insert
FKE 30 Field Chamber Insert The FKE 30 field chamber insert is used together with the P1202 field source and the D70 h10 spacer ring. The field chamber insert has to be installed at the bottom of the P1202 field source as shown in Figure 8. -
Page 21: P1301 - Electric Field Source
LANGER DE-01728 Bannewitz mail@langer-emv.de P1202 / P1301 L-ESD set EMV-Technik www.langer-emv.com P1301 – Electric Field Source Figure 9 shows the P1301 ESD E-field source. The field source has two plug connectors, a high voltage input (Fischer connector) to supply the field source and a digital input (12 pin header) to control the field source. -
Page 22: Epm 02 And Bpm 02 Field Meters
LANGER DE-01728 Bannewitz mail@langer-emv.de P1202 / P1301 L-ESD set EMV-Technik www.langer-emv.com Figure 10: Principle of the immunity measurement using the P1301 field source (electric field) EPM 02 and BPM 02 Field Meters The magnetic or electric field strength generated by the field sources at the position of the test IC can be measured with the BPM 02 and EPM 02 field meters respectively. -
Page 23: D70 H10 And D70 H03 Spacer Rings
D70 h10 and D70 h03 Spacer Rings The D70 h10 and D70 h03 spacer rings are part of the P1202 / P1301 set. They are used to position the field sources above the test IC while providing a ground connection between the hull of the field source and ground system of the test IC. -
Page 24: Set-Up Of The P1202 / P1301 L-Esd Set
The test board together with the test IC is inserted into the GND 25 ground plane of the measurement set-up. The field source (here P1202) is located above the test IC by using a spacer ring. The BPS 203 is used to supply the high voltage and control the field source. -
Page 25: Orientation Of The Field Sources
LANGER DE-01728 Bannewitz mail@langer-emv.de P1202 / P1301 L-ESD set EMV-Technik www.langer-emv.com Orientation of the Field Sources Magnetic field (P1202): The magnetic field is oriented in a plane parallel to the ground surface in the area of the test IC (cf. Figure 16). Turning the field source on the spacer ring allows the user to vary the magnetic field's direction in this plane. -
Page 26: Start-Up, Measurement And Calibration
Start-up, Measurement and Calibration The P1202 / P1301 L-ESD set can be used to measure the immunity of integrated circuits (ICs) against fast pulsed magnetic and electric fields. The tests are carried out while the IC is in operation. -
Page 27: Pulse-Current Measurement (Only P1202)
EMV-Technik www.langer-emv.com Pulse-Current Measurement (only P1202) Use the measurement output of the P1202 field source to view the internally generated pulse current. The oscilloscope input has to be set to 50 Ω. Otherwise an external termination should be used. Make sure not to exceed the limits of your oscilloscope (Table 12). - Page 28 0.23 Table 12: Input voltage present at oscilloscope using different attenuators The P1202 field source's measurement output can be used to calculate the magnetic flux density B generated by the field source at the position of the test IC. has to be measured at the field source’s The voltage equivalent of the pulse current i measurement output for this purpose.
-
Page 29: Calibration Of The Measurement Set-Up
The EPM 02 or BPM 02 are used to calibrate the measurement set-up. The BPM 02 is used in conjunction with the P1202 and the EPM 02 is used in conjuction with the P1301. During calibration, the generated field strength is measured and adjusted via the BPS 203-client software to achieve the desired (test) field strength. -
Page 30: Measurement Sequence
LANGER DE-01728 Bannewitz mail@langer-emv.de P1202 / P1301 L-ESD set EMV-Technik www.langer-emv.com Measurement Sequence The basic measurement can be carried out in accordance with IEC 62132-2:2010, for example: Figure 20: Flow chart showing the basic measurement procedure 30 - 35... -
Page 31: Bps 203-Client Software
LANGER DE-01728 Bannewitz mail@langer-emv.de P1202 / P1301 L-ESD set EMV-Technik www.langer-emv.com BPS 203-Client Software Installation The enclosed installation media contains BPS 203-Client software and DLL operational manual device driver Important: You need administrator rights to install the device driver on the PC. -
Page 32: Pulse Configuration
When using field-coupled probes e.g. P1202 or P1301 the spacer ring used in the measurement set-up has to be selected, since the electric field strength / magnetic flux density applied to the test IC is highly dependant on the distance between field source and IC. -
Page 33: Operating Modes
LANGER DE-01728 Bannewitz mail@langer-emv.de P1202 / P1301 L-ESD set EMV-Technik www.langer-emv.com Operating Modes Single Pulse By pressing the Single (Pulse) button (Figure 26) the BPS 203 will generate a single pulse with the defined Pulse Level and Polarity. The Status LED of the BPS 203 and the LED of the connected field source will blink one time. -
Page 34: Menus
- Status: Waiting for Trigger – BPS 203 waits for an external trigger event Figure 29: No USB connection to BPS 203 Figure 30: BPS 203 connected but no valid probe detected Figure 31: BPS 203 connected and the P1202 field source is detected Menus File: ... -
Page 35: Warranty
This document may not be copied, reproduced or electronically processed, either in its entirety or in part, without the prior written permission of Langer EMV-Technik GmbH. The management of Langer EMV-Technik GmbH assumes no liability for damage that may arise from using this printed information.
