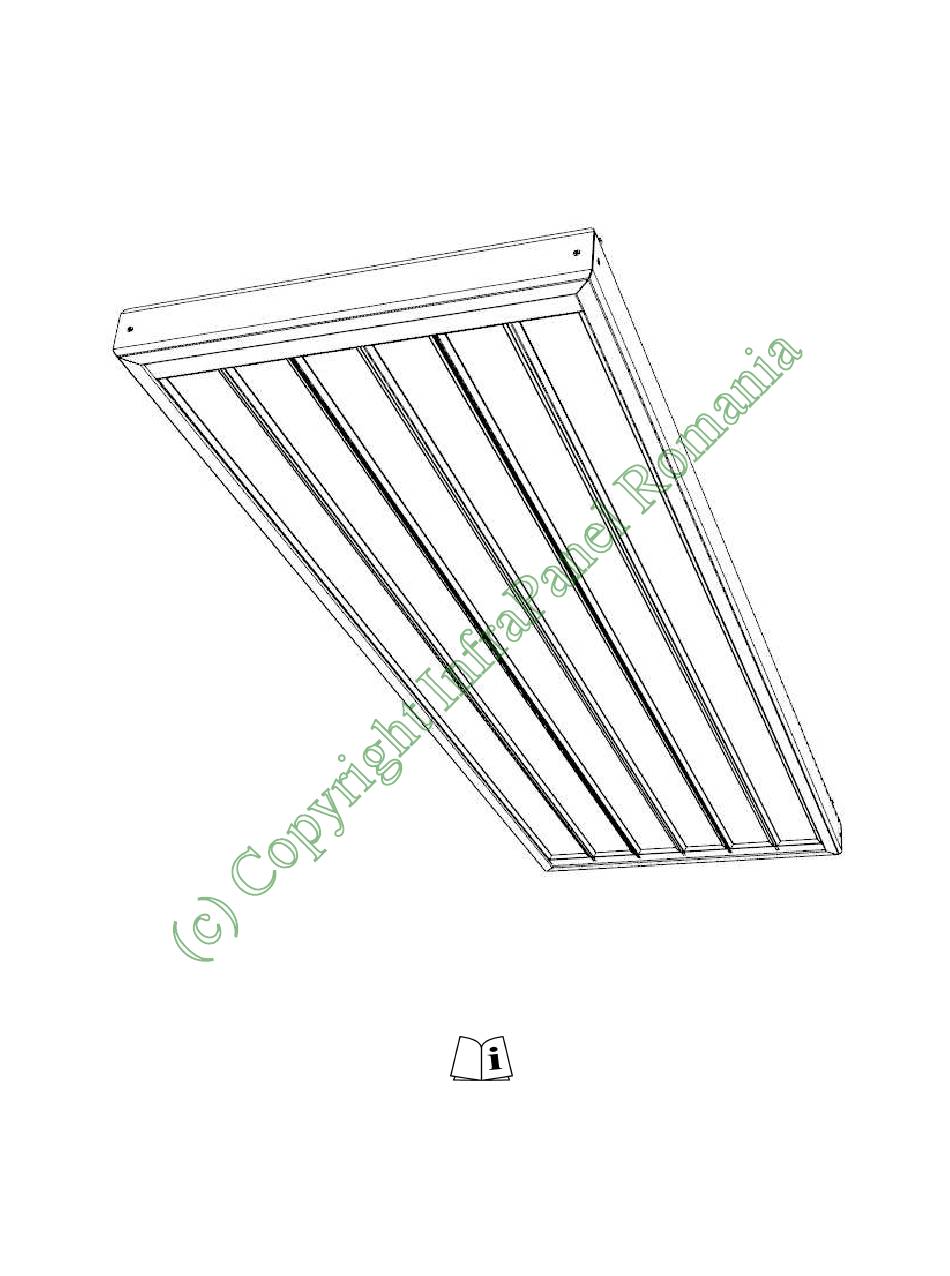

- Page 1 THERMO Please retain these instructions in a safe place for future reference. Si prega di conservare con cura questo libretto di istruzioni per future consultazioni. Bewaar deze gebruiksaanwijzing zorgvuldig voor toekomstig gebruik. Conserver cette notice pour toute consultation ultérieure. Es wird gebeten, diese Gebrauchsanleitung für ein zukünftiges Nachschlagen sorgfältig aufzubewahren.
- Page 2 MIN 150mm MIN 500mm MIN 500mm MIN 1800mm modello model modèle modele Thermo 22 208,50mm min 1200mm Thermo 39 378,50mm min 1200mm Thermo 55 548,50mm min 1200mm “b” “a”...
- Page 3 TAB 1 modello tensione potenza corrente frequenza sez. conduttori connessione peso model voltage power current frequency wiring section connection weight modèle tension puissance courant fréquence sections de fils raccordement poids modele tensine putere curent frecventa sectiune fire conectare greutate (+5% -10%) (max) (min) (⇒...
- Page 4 TAB 3 ∅ Diametro del cavo (mm) foro (mm) supply cord diameter (mm) hole (mm) diamètre du cable (mm) trou (mm) gaura (mm) Diametru adaptor cablu (mm) PG21 PG16 PG13,5 PG11 GAS ¾” GAS 5/8” GAS ½” MIN. IP54 GAS 3/8 L3 L2 L1 ATTENZIONE: NON SPINGERE I CAVI DENTRO AL PRODOTTO WARNING: DO NOT PUSH THE WIRES INSIDE THE PRODUCT...
- Page 5 ROMANA INSTRUCTIUNI DE UTILIZARE SI INSTALARE Va rugam sa cititi cu atentie aceste instructiuni inainte de a utiliza produsul, pentru a evita eventualele daune sau situatii periculoase. Orice utilizare a produsului altfel decat este indicat in acest manual poate cauza incendii sau raniri si anuleaza garantia.
- Page 6 -aveti grija intotdeauna, dupa legarea cablului, ca acesta sa nu intre in contact cu partile metalice ale produsului. Exemplu: A fost achizitionat produsul THERMO 55 BT si se doreste utilizarea cablului de conexiune la o retea trifazica. Plecand de la aceasta premisa: 1.
- Page 7 ENGLISH OPERATING INSTRUCTIONS Before operating the heater, please read these instructions thoroughly to avoid damage and hazardous situations. Any use of this heater other than that stipulated in this instruction manual may cause fire, electric shock or injury, and voids all warranties.
- Page 8 Example: You have purchased the Thermo version 55BT and you wish to use a power cable for a three-phase connection. Hence, you’ll have to: Identify the necessary number of conductors: you choose connection type “E” (three-phase), so you’ll get 5 conductors for earth, neutral, L1, L2 and L3.
