Signtex Crystal CRR-REC Series Installation Instructions And Owner's Manual

Crystal
Remote Edge-Lit Exit Sign
for Universal Central Battery System Series CBS
INSTALLATION INSTRUCTIONS AND OWNER'S MANUAL
Before installing or connecting any primary power wiring,
DISCONNECT MAIN POWER SUPPLY AT THE CIRCUIT BREAKER OR FUSE.
PIGTAIL
CONNECTOR
WHITE
W
24 VDC
GREEN
G
INPUT
R
CIRCUIT
B
W
G
24 VDC
R
OUTPUT
B
CIRCUIT

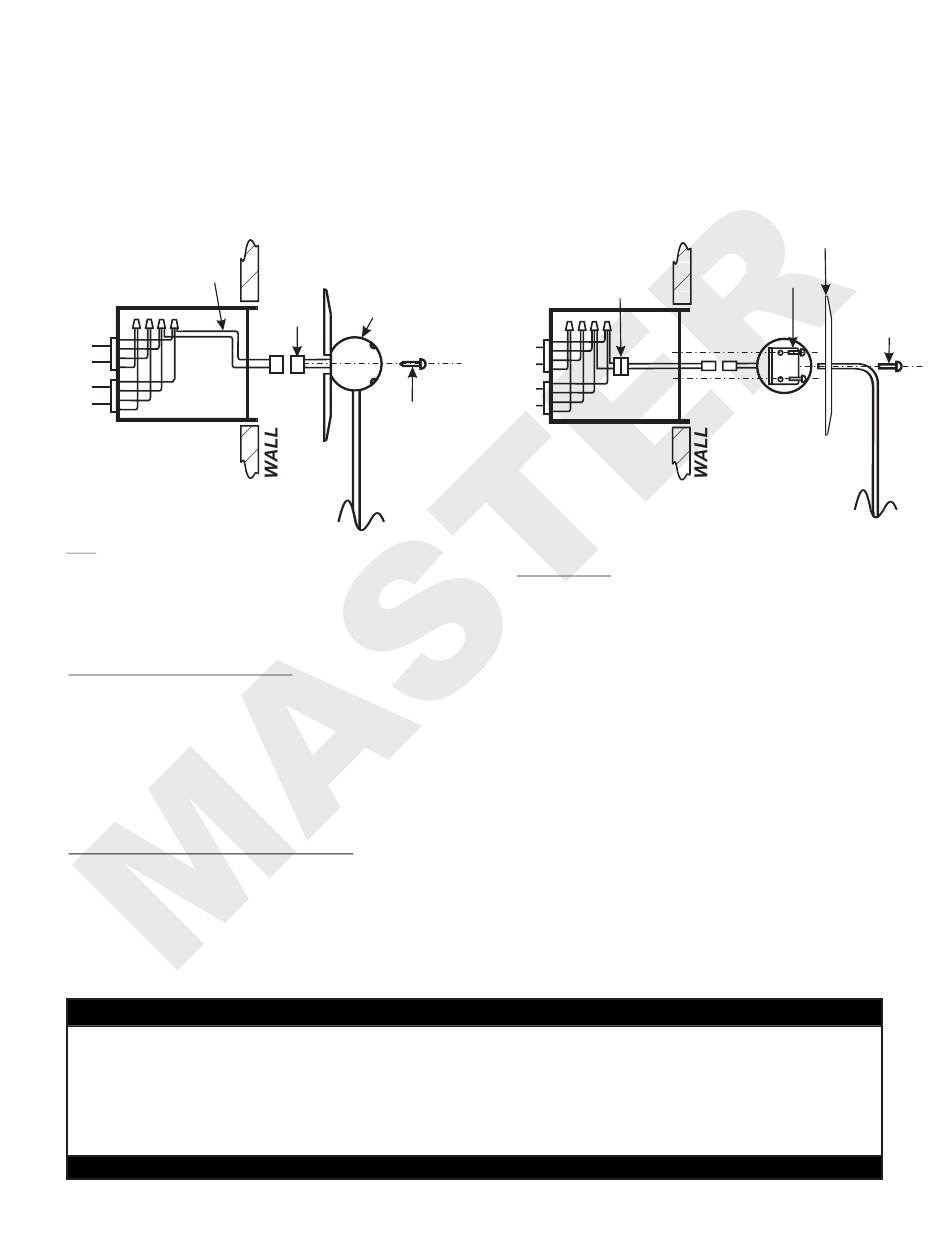

STANDARD WALL MT
KEY
G- GREEN: COMMON GND: 24 VDC NEG
W- WHITE: EXITS AND CVRE: 12-24 VDC POS
R- RED: EMERGENCY: 24VDC POS
B- BLACK: SECURITY / NIGHT OPS: 24 VDC POS
STANDARD WALL MOUNT
1. Install Recessed Back Box as required. Edge of box should be just below finished panel surface.
2. Connect 24VDC input/output circuit wiring as shown above, and connect the GREEN and WHITE
leads to the pigtail connector supplied.
3. Position the sign assembly over the back box and connect the polarized lamp plug. Secure the sign
assembly to back box with the two color-matched #8-32 screws supplied. Trim plate should be flush
with the panel surface.
WATERFALL LENS WALL MOUNT
1. Follow STANDARD WALL MOUNT steps 1-2.
2. Position the lamp housing and lens assembly over the back box and connect the polarized lamp
plug. Secure the lamp housing to the back box with four #6-32 screws supplied.
3. Slide Trim plate over lens carefully, until flush with panel surface, and secure with
two #8-32 color-matched screws supplied.
IMPORTANT SAFEGUARDS READ AND FOLLOW ALL SAFETY INSTRUCTIONS
1. Disconnect AC power before servicing.
2. Refer to wiring diagram for proper connections.
3. All servicing should be performed by qualified personnel.
4. Consult your local building code for approved wiring and
installation.
5. Do not use outdoors.
6. Do not use this equipment for other than intended use.
Recessed Mount
LAMP HOUSING
ASSEMBLY
LAMP PLUG
ASSBY HOUSING
SCREW #8-32
2 SUPPLIED
SAVE THESE INSTRUCTIONS
Series CRR-REC
POLARIZED CONNECTOR
W
24 VDC
G
INPUT
R
WHITE
CIRCUIT
B
GREEN
W
24 VDC
G
OUTPUT
R
B
CIRCUIT
WATERFALL LENS WALL MT
ALL MODELS
EMERGENCY POWER RATING (EPR):
SINGLE FACE- 2 WATTS
DOUBLE FACE- 4 WATTS
7. Do not let power cords touch hot surfaces.
8. Mount and secure the fixture at a location and height
to avoid ready access and tampering by unauthorized
persons.
9. The use of accessory equipment is not recommended by
the manufacturer and may cause an unsafe condition.
REV 02.09.2
TRIM PLATE
LAMP HOUSING
SCREWS
#6-32 4 REQD
TRIM PLATE
SCREWS #8-32
(2 SUPPLIED)
