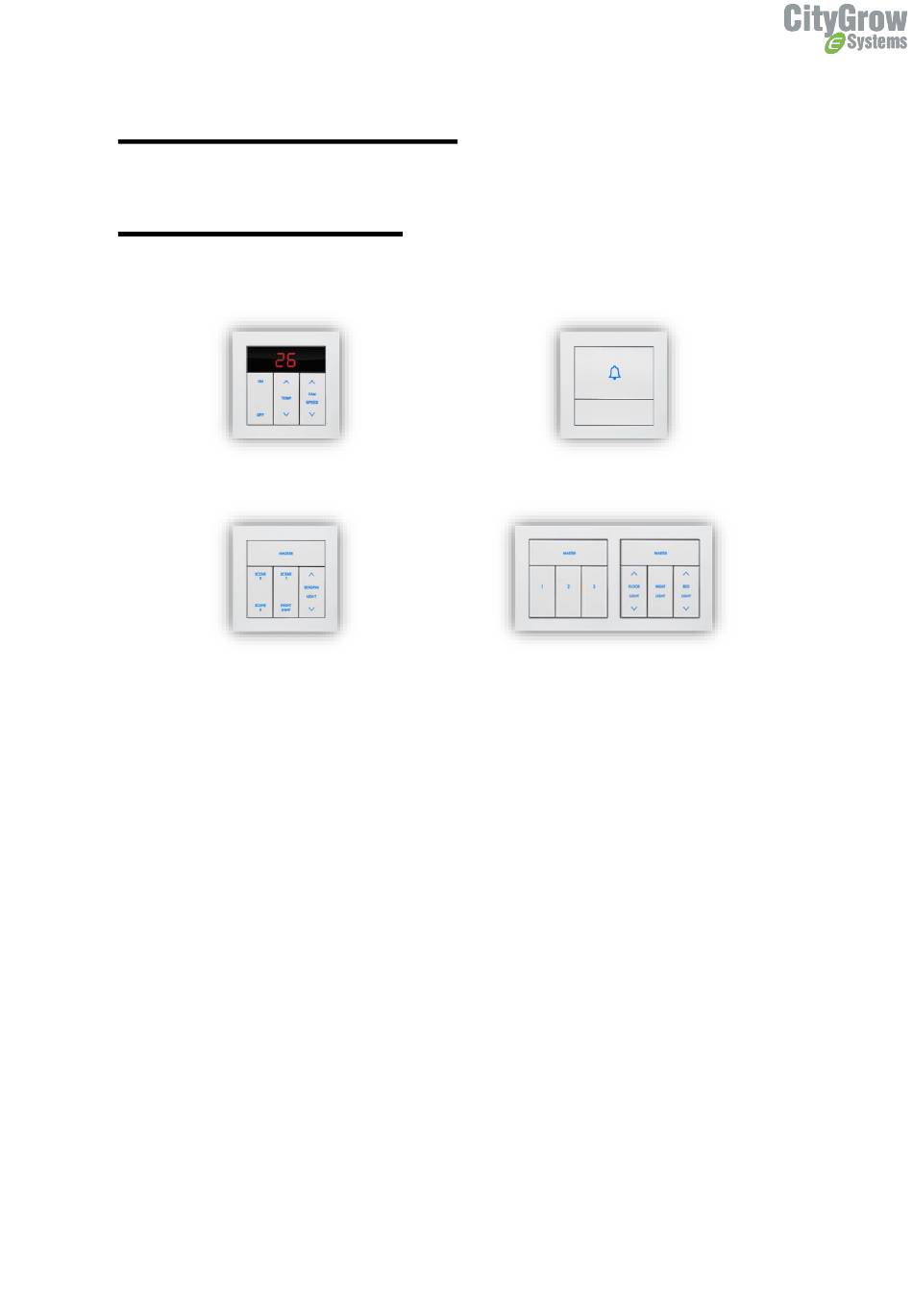

CG100H S ERIES ZIGBEE WIRELESS SWITCH CONTROL PLATE ANUAL CG100HTH/CG100HTHV1/CG100HTH-IR CG100HHB Thermostat Doorbell Switch CG100H4-MD CG100H8-MD 8-Scene Control Plate 8-Scene Twin Control Plate ERSION , 2020 EBRUARY Disclaimers and Copyright Nothing contained in this publication is to be construed as granting any right, by implication or otherwise, for the manufacture, sale, or use in connection with any method, apparatus, or product covered by letters patent, or as insuring anyone against liability for infringement of letters patent.
Page 2
CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage”...
1. Introduction Thank you for choosing CityGrow’s product. CG100H Series is highly-functional, user-friendly and installation-friendly. It is specially designed for scene control. User can program the plate button for performing group control on different devices, including lights, curtains, air- conditioners, AV equipment and others.
2. Understanding the product – CG100H4-MD Frame Control plate Control plate (rear view) (front view) Control button Model Programming port number plate Connector to Reset button bracket Bracket Bracket Metal clip for fixing (front view) (rear view) the control plate Mounting hole Model number plate...
3. Understanding the product – CG100H8-MD Frame Control plate Control plate Control (rear view) (front view) button Model number Programming plate port Reset button Connector to Bracket Metal clip for fixing Bracket Bracket the control plate (front view) (rear view) Mounting hole Model number plate...
4. Understanding the product – CG100HTH/CG100HTHV1 Frame Control plate Control plate (front view) Temperature display window (rear view) Control button Model number plate Programming port Connector to the Temperature Bracket Reset button sensor Bracket Bracket Metal clip for fixing the control plate (front view) (rear view) Mounting...
Page 11
Before getting started WARNING! It must be installed by a qualified electrician in accordance to all applicable regulations and building codes. Improper wiring can result in personal injury or damage to control units or other equipment. Always turn off circuit breaker or remove main fuse from power line before doing any work.
STEP 3: Connect the main power cable to the Live and Neutral terminals of the CG101AD Mini Power Supply. Then connect the DC output wires of the CG101AD to the DC input of the CG100H Series product. For CG100H4-MD and CG100HTH...
Page 14
Retrofit the switch into the standard switch box and mount it on the wall by fastening the two screws at the rear of the switch box. STEP 5: Power up the main switch board, the LED indicators on CG100H Series product should be lightened up. Program the CG100H Series product by using HomeNet Planner 2 software to setup the function of the buttons on the control plate.
9. Operation instruction 9.1. CG100H4-MD 8-Scene Control Plate CONTROL PLATE COVER 1. Number 1 to 8 are buttons location. 2. Frame 1. Button 2. Frame MAIN UNIT 3. 4 pcs of Lock for fixing the main unit 3. Lock x 4 pcs onto the wall bracket.
9.2. CG100H8-MD 8-Scene Twin Control Plate CONTROL PLATE COVER 1. Number 1 to 16 are buttons location. 2. Frame MAIN UNIT 3. Reset button 4. Program port 5. 8 pcs of Lock for fixing the main unit onto the wall bracket. 3.
9.3. CG100HHB Doorbell Switch COVER PLATE 1. Doorbell button. 1. Button 2. Frame. 3. MUR Make Up Room Indicator (For Hotel Only) 2. Frame 4. DND Do Not Disturb (For Hotel 4. Do Not Only) Disturb 3. Clean Room MAIN UNIT 5.
9.4. CG100HTH/CG100HTHV1 Thermostat CONTROL PLATE COVER 1. Display window showing the 1. Display temperate readings and settings. 2. Frame 2. Frame 3. Press Up/Down to control the fan speed at High/Mid/Low level. 4. Press Up/Down to preset the room 3. Fan Speed button temperature.
10. Adding the product to your Home Wireless ZigBee Network STEP 1 Open the front cover, you will see a 5-pin connector. STEP 2 Plug the CG101UT5 cable into the 5- pin connector of the product, and then plug the other end of the CG101UT5 cable into the mini USB end of the CG101UTC cable.
11. Specification CG100HTH CG100H4-MD CG100H8-MD CG100HTHV1 CG100HHB CG100HTH-IR Description 8-Scene Twin Control Thermostat 8-Scene Control Plate Doorbell Switch Plate Power supply DC6V Powered by CG101AD external DC6V Mini Power Supply. Maximum number of devices can be programmed in scene setting Features 1.
