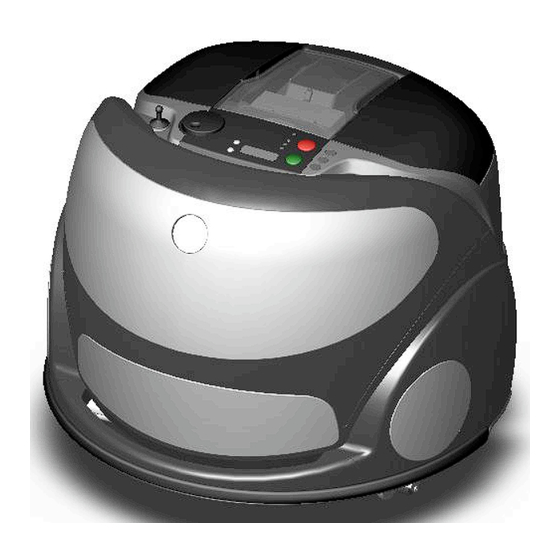

Friendly Robotics RV Series Manual

Hide thumbs

Table of Contents

Quick Links

Download this manual

Congratulations on your purchase of the Friendly Robotics robotic

surface cleaner! This cleaner will make your life easier by vacuuming

while you enjoy other activities. Use the robotic surface cleaner in

between regular vacuuming to keep your carpet surface clean and

your home ready for your family and guests.

Model No.: ___________________________

Serial No.:

We suggest that you attach your sales receipt to this manual and

keep it in a safe place. Verification of date of purchase may be

required for warranty service of your Friendly Robotics product.

REVIEW THIS MANUAL BEFORE OPERATING YOUR CLEANER

If you need any assistance, please contact your dealer.

Need help?

Do you have a question about the RV Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Friendly Robotics RV Series

Page 1: Table Of Contents
Welcome! Congratulations on your purchase of the Friendly Robotics robotic surface cleaner! This cleaner will make your life easier by vacuuming while you enjoy other activities. Use the robotic surface cleaner in between regular vacuuming to keep your carpet surface clean and your home ready for your family and guests.
Page 2 When using an electrical appliance, always follow basic precautions, including the following: READ ALL SAFETY INSTRUCTIONS BEFORE USING THIS APPLIANCE WARNING : To reduce the risk of fire, electric shock, or injury: • Do not use outdoors or on wet surfaces. •...
Page 3 • Use surface cleaner only for its intended use as described in the instructions. Use only attachments recommended by Friendly Robotics; others may cause hazards. • Do not use to clean stairs. • Do not incinerate this appliance even if it is severely damaged. The batteries can explode in a fire.
Page 4: Getting Started
Getting Started Carton Contents A. Robotic surface cleaner B. Batteries (2) C. Charger The robot is packed with two Using the rear portion of the robot, Pull up to remove the tilt the robot onto its back. foam strips securing it foam strip (K).
Page 5: Cleaner Description
Cleaner Description To reduce the carrying weight of the robot, the batteries can be removed and carried separately. A. Carry Handle J. Check Display Light B. Pull-line feature K. Stand-by Light C. Dirt Cup L. Child Lock Light M. Start Button D.
Page 6: How To Use
How to use The Pull-Line feature The robot will reserve enough power when it has completed its cleaning to be moved by the Pull-line to the charging location. The Pull-line feature (A) is used Pull the Pull-line (A) out, and to move the robot forward and pull it either forward, left or right in steer it left or right without lifting it.
Page 7: First Use
The Batteries How to charge First use Before using your robot for the first time, the batteries will need approxi- When the battery mately 8-12 hours to achieve a full charge. power is low, all of During operation the safety functions of the robot will be Several events will indicate that the fully functional.
Page 8: Before Cleaning
Before Cleaning Room preparations Review the Important Safeguards on pages 2 and 3. To maximize the cleaning potential, it is recommended that you: • Remove objects like clothing, loose papers, pull cords for blinds or curtains, electrical cords, toys and fragile objects from the floor surface. Remove obstacles, such as toys, shoes, •...
Page 9: Cleaning
Cleaning When the robot • Use the pull-line feature or detects an obstacle, carrying handle to move the robot into the it will stop, turn room to be cleaned. Max Clean (Display "CL 3") cleans an around and continue • Close doors to limit the robot to average room (up to 400 sq.
Page 10: Sensors
Cleaning Sensors (continued) Keep top stair clear of clutter The stair sensor allows the robot to To ensure proper functioning of detect a drop in the floor of 4 or the stair sensor, keep the top step * Important safety warning to more inches (10cm) and prevents clear of clutter.
Page 11: Auto Depart
Auto Depart (continued) To set Auto Depart time: Press scroll button once for 15 When the timer has completed the To disable the Auto Depart during minute intervals - countdown, the robot will begin to the countdown, turn the Cleaning hold button for 1 clean the area where it is located, Selector (A) to OFF.
Page 12: Child Lock
Child Lock (continued) To temporarily disable the Child Lock: When it is finished, the Child Lock is automatically reset. • Set the Cleaning Selector to SPOT, The Child Lock indicator light QUICK or MAX will flash amber while the Child The Sleep Mode Lock is temporarily disabled.
Page 13: Maintenance
Maintenance The dirt cup When to empty It is recommended that the dirt cup • The "Check Display" indicator be emptied before the dirt reaches light will flash red when the dirt cup is full. the dirt opening at the top of the •...
Page 14 Maintenance How to clean the filter It is recommended that the robot be fully charged before Remove filter from dirt cup door. Tap storing it to maximize Remove dirt cup and open dirt cup end of filter against the side of a trash door as shown in Figs.
Page 15: Storage
Storage and Brush Roll Storage It is recommended that the robot be fully charged before storing it. Store robot with Cleaning Selector in the OFF position. If storing the robot for more than two weeks, it is recommended that you first fully charge the batteries, and then remove the batteries from the robot to maintain battery life.
Page 16: Brush Roll
Display Messages Display Message What it means What you should do Call Help (01-15) Robot requires service Call your dealer by an authorized technician. The battery voltage has reached Completely charge the batteries a critically low level. immediately to avoid permanent damage.
Page 17: Troubleshooting
Troubleshooting If a problem is encountered that is not quickly resolved using the recommended solution, please contact your dealer. Problem Possible cause Short battery run time after a Replace both batteries. Contact Battery/batteries are damaged full charging session Service Center. •...
Page 18: Warranty
Friendly Robotics RV Series Limited Warranty Friendly Robotics warrants to the original purchaser that the RV series ‘Product’ is free from defects in materials and workmanship when used under normal residential* purposes for a period of 12 months, beginning from the date of purchase.
