Magnetel
ISO 9001:2008 CERTIFIED

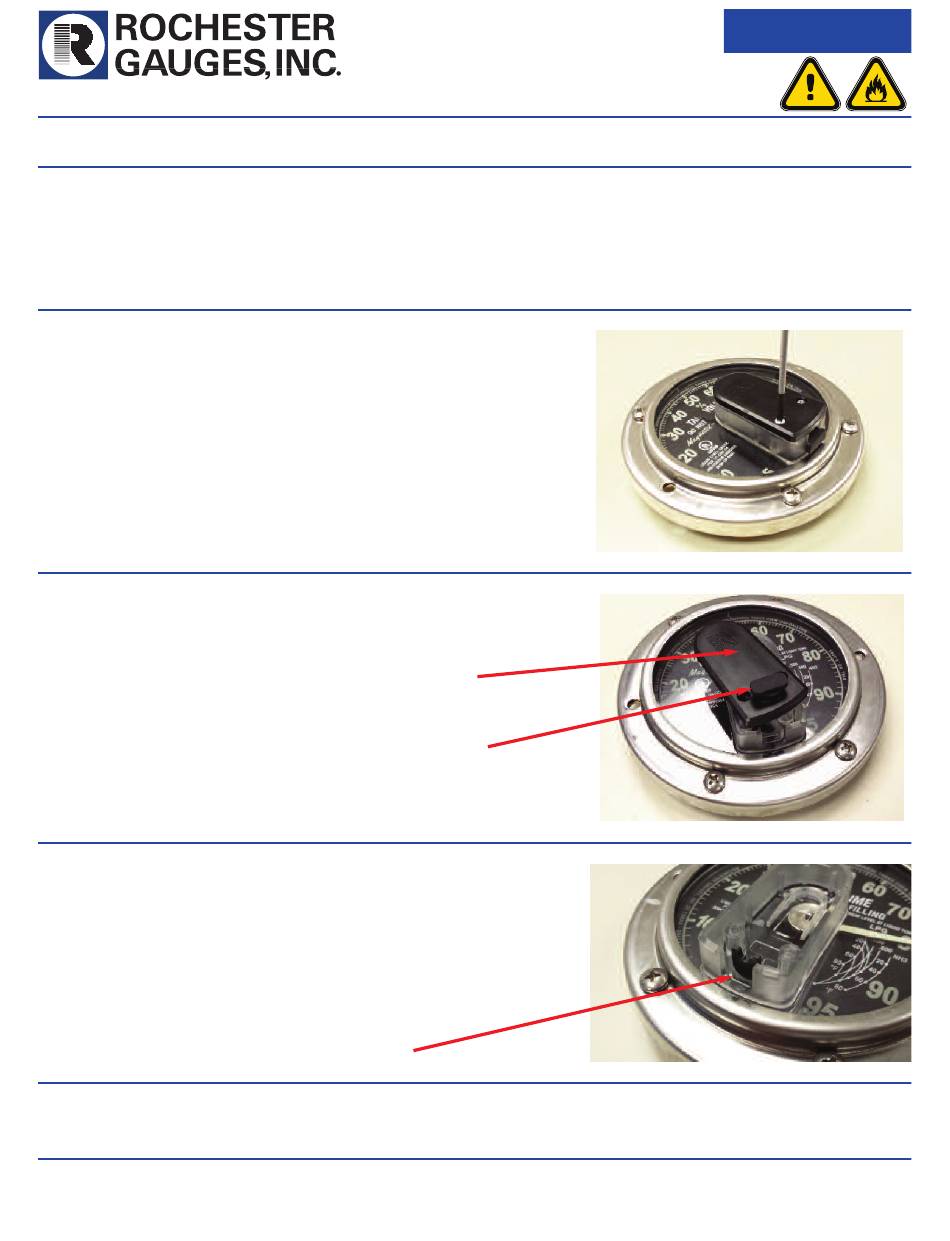

Light Module Installation Instructions
®
Notes:
•
0023S00031/0023S00032 Light Module is only compatible with the 4" Fluorescent Dial
(5APKS03045 or 5APKS03079)
•
0023S00033 Light Module is compatible with the 4" Standard Silver background Dial
(5ANTS03047)
1) Unscrew and remove existing cover screws from
Magnetel
®
4" R3D
2) Gently pop out existing cover plate and remove plug
3) If strain relief is required, insert strain relief clip into
U-shaped slot in crystal.
Note: Strain relief clip is only required if there is no Remote
Monitoring plug-in module. Relief clip is not needed if Light
Module and Remote Monitoring are utilized simultaneously.
See step 5 where Remote Monitoring Plug-in module is snapped
onto the dial.
* Materials and specifications are subject to change without notice.
See reverse side for dimensional data, materials of construction, performance, and advice on how to order.
®
Dial
Cover Plate
Relief Clip
The Measure of Excellence
Plug
DS-1801
Advertisement
Table of Contents
Related Manuals for Rochester Gauges Magnetel Series
Summary of Contents for Rochester Gauges Magnetel Series
- Page 1 DS-1801 Magnetel ISO 9001:2008 CERTIFIED Light Module Installation Instructions ® Notes: • 0023S00031/0023S00032 Light Module is only compatible with the 4” Fluorescent Dial (5APKS03045 or 5APKS03079) • 0023S00033 Light Module is compatible with the 4” Standard Silver background Dial (5ANTS03047) 1) Unscrew and remove existing cover screws from Magnetel ®...
- Page 2 DS-1801 Magnetel Light Modual Installation Instructions ® 4) Twist Cable so jacket is at or above tab edge (see below) to ensure cable is strain relieved after light module assembly is snapped onto crystal. Tab Edge Light Module and Remote Monitoring Plug-in module utilized simultaneously.
