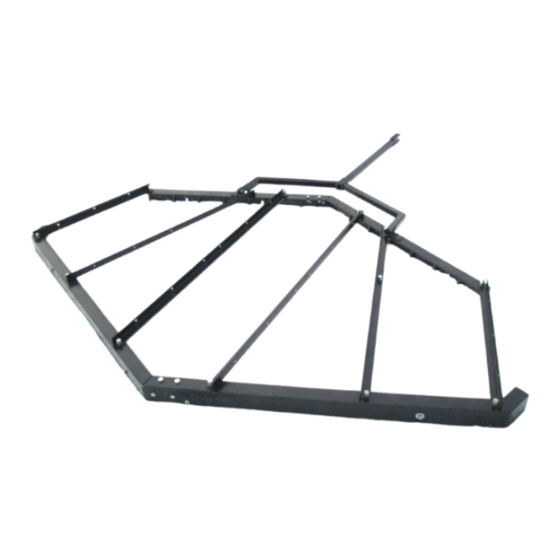

Summary of Contents for Field Tuff ATV-07DWD
- Page 1 Driveway Draggin’ OWNER’S MANUAL WARNING: Read carefully and understand all ASSEMBLY AND OPERATION INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury. Item# ATV-07DWD 05192014...
- Page 2 Thank you very much for choosing this product! For future reference, please complete the owner’s record below: Model: ______ATV-07DWD_______ Purchase Date: _______________ Save the receipt, warranty and these instructions. It is important that you read the entire manual to become familiar with this product before you begin using it. This machine is designed for certain applications only.
- Page 3 WORK AREA (During Assembly and Operation) • Keep work area clean, free of clutter and well lit. Cluttered and dark work areas can cause accidents. • Keep children and bystanders away while operating the Driveway Draggin’. Distractions can cause you to lose control, so visitors should remain at a safe distance from the work area. •...
- Page 4 ASSEMBLY-(use parts diagram as reference) Step 1: Assemble #11 Right Side Grading Bar onto #12 Right Back Angle using #4 Bolt, #5 Lock Washer, and #6 Flat Washer as shown. Step 2: Assemble #19 Left Side Grading Bar onto #16 Left Side Back Angle using #4 Bolt, #5 Lock Washer, and #6 Flat Washer as shown.
- Page 5 Step 6: Assemble #9 Angle Bracket 1, #13 Angle Bracket 2, and #14 Angle Bracket 3 onto the top of the Front and Back Angles using #18 Bolt and #8 Lock Nut as shown. Install spacers before lock nuts. Step 7: Assemble #3 Hitch Frame to the Front Angles using #2 Bolt and #8 Lock Nut as shown.
- Page 6 OPERATION To Grade a flat surface: Adjust front digger teeth bars to the correct depth just so you have enough loose gravel Add weight evenly distributed to level a given area Make sure grading bars are adjusted to the same height To Build a crown: Adjust front digger teeth bars to the correct depth just so you have enough loose gravel Set the rear grading bars down on outside edges to form slight crown in middle...
- Page 7 DIAGRAM & PARTS LIST Part Description Part Description Tow Bar Right Grading Bar Bolt M10x50 Right Side Back Angle Hitch Frame Angle Bracket 2 Bolt M10x30 Angle Bracket 3 Lock Washer Bolt M10x25 10mm Flat Washer Left Side Back 10mm Angle Right side Front Spacer...
- Page 8 WARRANTY One-year limited warranty PO BOX 203 Miltona, MN 56354 Made in CHINA Page of 8...
