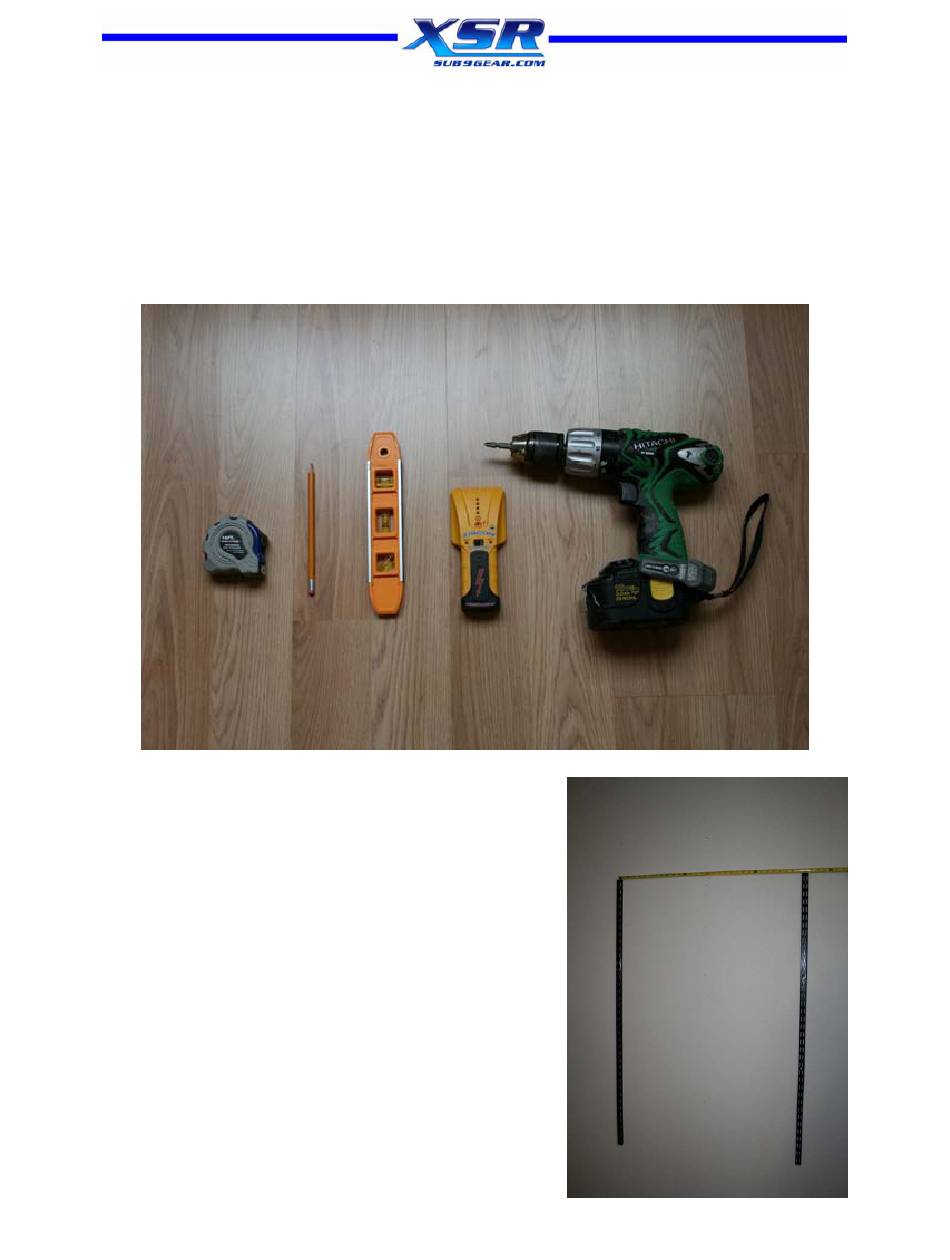

INSTALLATION INSTRUCTIONS
Measuring Tape (A)
Pencil (B)
Level (magnetic preferable) (C)
•
•
•
A
•
STEP 1: Before beginning the installation
read the entire installation document. Check
to make sure you have all necessary parts:
1. (8) Insta-lock Brackets
2. (2) 48" Slotted Uprights
3. (10) Mounting Screws
•
STEP 2: Decide on the mounting distance
between the slotted upright tracks. If you will
not be storing shorter boards or skis you can
mount the uprights wider for more stable
storage (32", 48" or wider center to center).
For this installation we will use a 32" center to
center distance. 32" center to center distance
works well for most wakeboards, snowboards,
skis, surfboards, etc.
________________________________________________________________________
SUB9 LLC
TOOLS NEEDED
B
C
Page 1 of 4
Electronic Stud Finder (D)
Power Drill/Driver (E)
D
E
32"
Revision 8.02.07
Advertisement
Table of Contents
Summary of Contents for Sub9 XSR
- Page 1 (32”, 48” or wider center to center). For this installation we will use a 32” center to center distance. 32” center to center distance works well for most wakeboards, snowboards, skis, surfboards, etc. ________________________________________________________________________ SUB9 LLC Page 1 of 4 Revision 8.02.07...
- Page 2 Make sure the bottom edges of both tracks are at the same height. ________________________________________________________________________ SUB9 LLC Page 2 of 4 Revision 8.02.07...
- Page 3 HINT: It may be easiest to partially put in the top screw first so the upright track is hanging like a pendulum. Next, level out the upright track before driving in the remainder of the screws. ________________________________________________________________________ SUB9 LLC Page 3 of 4 Revision 8.02.07...
- Page 4 If you don’t feel comfortable or able to complete the installation please consult with a licensed contractor. • For additional installation help please visit www.Sub9Gear.com • Additional bracket sets can be purchased at www.Sub9Gear.com ________________________________________________________________________ SUB9 LLC Page 4 of 4 Revision 8.02.07...
