Suzohapp Comestero Mifare Cashless systems Technical Document - User Instruction

Recharging box
Hide thumbs
Table of Contents

Advertisement

Quick Links

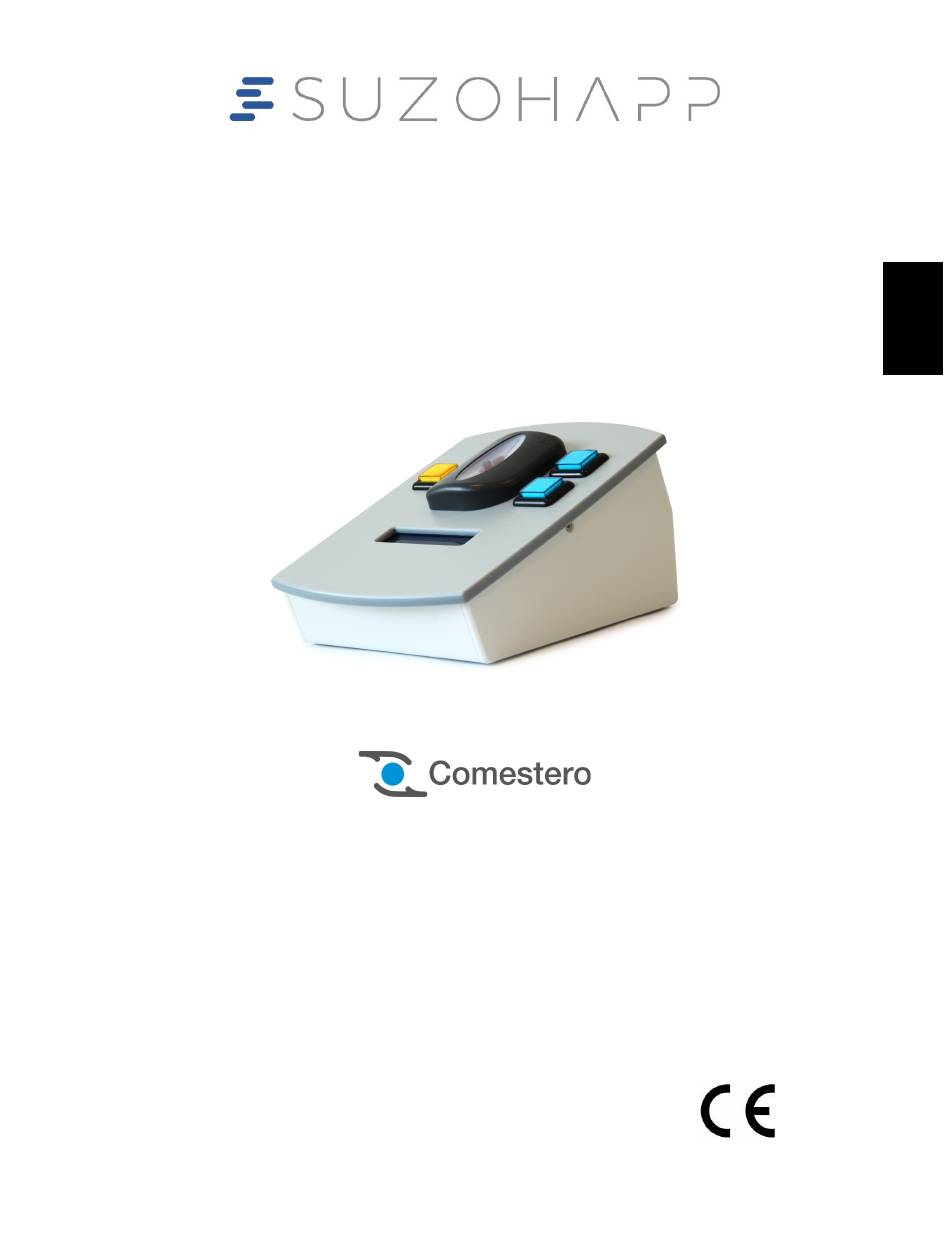

Recharging Box
EN
Mifare
®
Cashless systems
Technical document – User instruction
Cod. DQCWCL0001.0EN
Rev. 1.0 24/07/2014

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Comestero Mifare Cashless systems and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Suzohapp Comestero Mifare Cashless systems

  • Page 1 Recharging Box Mifare ® Cashless systems Technical document – User instruction Cod. DQCWCL0001.0EN Rev. 1.0 24/07/2014...
  • Page 3 GUIDE TO THE SYMBOLS IN THIS MANUAL The following symbols have been included in this manual to facilitate its understanding. Important information Read carefully before use Caution!

  • Page 4: Table Of Contents

    Technical document –Recharging Box’s User instruction Contents 1. Warnings ..............................5 2. Product description ..........................5 3. Connection ..............................6 3.1. Connecting to the grid ..............................6 3.2 Cashless device connection ............................6 4. Configuring the Recharging Box ......................7 4.1 Basic operation ................................

  • Page 5: Warnings

    1. Warnings Read this manual carefully before installation. Knowledge of the information and instructions of this manual is fundamental to use the product correctly. 2. Product description The Eurokey Next Recharging Box is a handy and compact device and comes complete with display and selection button.

  • Page 6: Connection

    Technical document –Recharging Box’s User instruction 3. Connection 3.1. Connecting to the grid Connect the 12V power supply to the power connector of the Recharging Box, as shown in the figure below. POWER Fig. 2 3.2 Cashless device connection Open the rear door and connect the cashless device to the PC via micro USB cable. MICRO-USB PROGRAMMING CONNECTOR...

  • Page 7: Configuring The Recharging Box

    4. Configuring the Recharging Box 4.1 Basic operation The Recharging Box allows you to manually increase or decrease the credit inside of a key or a card. Pressing the two blue keys, you can apply two different credit increments, such as 1 and 10 Euros;...

  • Page 8: Setting The Reader

    Technical document –Recharging Box’s User instruction 2. Enter the Administrator password and confirm by pressing OK, as shown in the picture below. Fig. 5 3. At the end, click on OK. Fig. 6 Now all the settings of the recharging box are imported within UNICO software. 4.4 setting the Reader By means of the Reader tab, you can set the charge and credit limits that the Eurokey Next reader is enabled to set on the keys.

  • Page 9: Changing The Administrator Code

    Max cash credit: 50.00 Fig. 7 If needed, you can change the "Limit" and "Maximum" parameters changing the value in the respective boxes. 4.5 Changing the Administrator code To change the Administrator code open the Reader tab and press the Administrator button.

  • Page 10: Setting The Recharging Box's Yellow Button

    Technical document –Recharging Box’s User instruction Into the Administrator old, Old location , Old level enter the old password. Press the OK button to confirm changing. 4.6 Setting the recharging box’s yellow button By means of the Price table, inside the VMC tab, you can program the decrease credit value in Euro to assign to the Yellow button on the recharging box.

  • Page 11: Setting The Two Credit Values Assigned To The Two Blue Buttons "+" And

    Fig. 10 4.7 Setting the two credit values assigned to the two Blue buttons “ ” and “ ” In the UNICO’s Payment tab, select inside of the Coin acceptor section the option Parallel. In the Coins green section, enter in the Coin 3 and Coin 4 fields the increment values in Euro that you want to be applied when press one of the two recharging box’s blue buttons.

  • Page 12: Sending Configuration Data To The Cashless System

    Technical document –Recharging Box’s User instruction 4.8 Sending configuration data to the cashless system To immediately send changes to the connected device, press the Send button (top right on the main screen in the green box Configuration), to write changes directly on the recharging box.
  • Page 14 Technical document –Recharging Box’s User instruction...
  • Page 16 F +1 (800) 593 4277 F +61 3 9763 7265 Info.nl@suzohapp.com info@suzohapp.com info@suzohapp.com.au suzohapp.com For more information: SuzoHapp Netherlands B.V. Antonie Van Leeuwenhoekstraat 9 3261 LT Oud-Beijerland - The Netherlands Phone: (+31) 186 64 33 33 - Fax: (+31) 186 64 33 32 sales.nl@suzohapp.com...
  • Page 17 Nome file: Box di ricarica da Banco LCD con EuroKey Next_EN.doc Directory: C:\Users\A.Obinu\Documents Modello: C:\Users\A.Obinu\AppData\Roaming\Microsoft\Templates\Normal.d Titolo: Oggetto: Autore: s.galli Parole chiave: Commenti: Data creazione: 13/06/2014 11:41:00 Numero revisione: Data ultimo salvataggio: 22/06/2018 11:30:00 Autore ultimo salvataggio: Alice Obinu Tempo totale modifica 235 minuti Data ultima stampa: 22/06/2018 11:31:00 Come da ultima stampa completa...
