Band knife machine
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
O
RIGINAL MANUAL

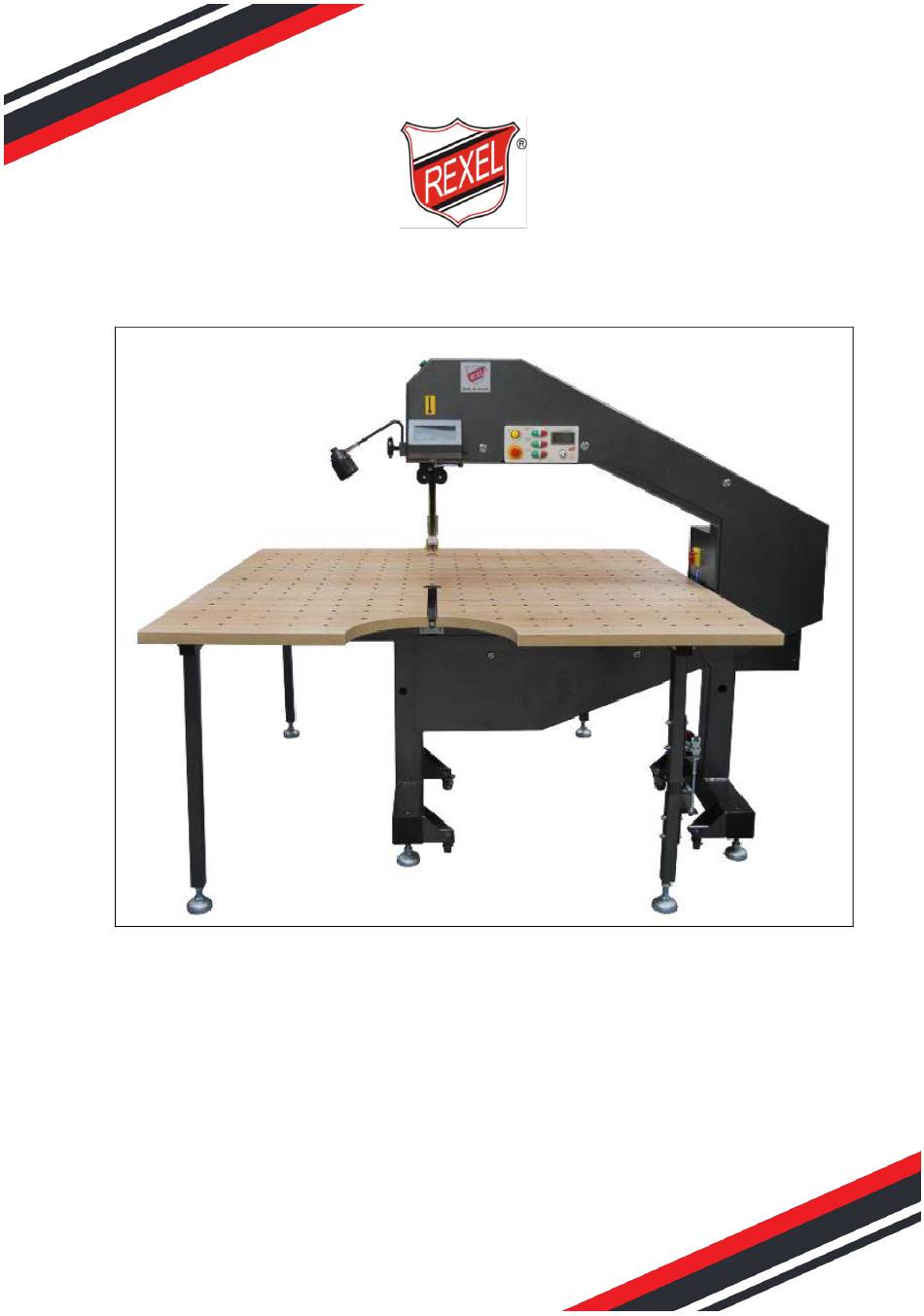

INSTRUCTION MANUAL
B
R750/R1000
AND KNIFE MACHINE
DESCRIPTION - OPERATION – WITHDRAWAL FROM USE
E
1 / 2019
DITION
