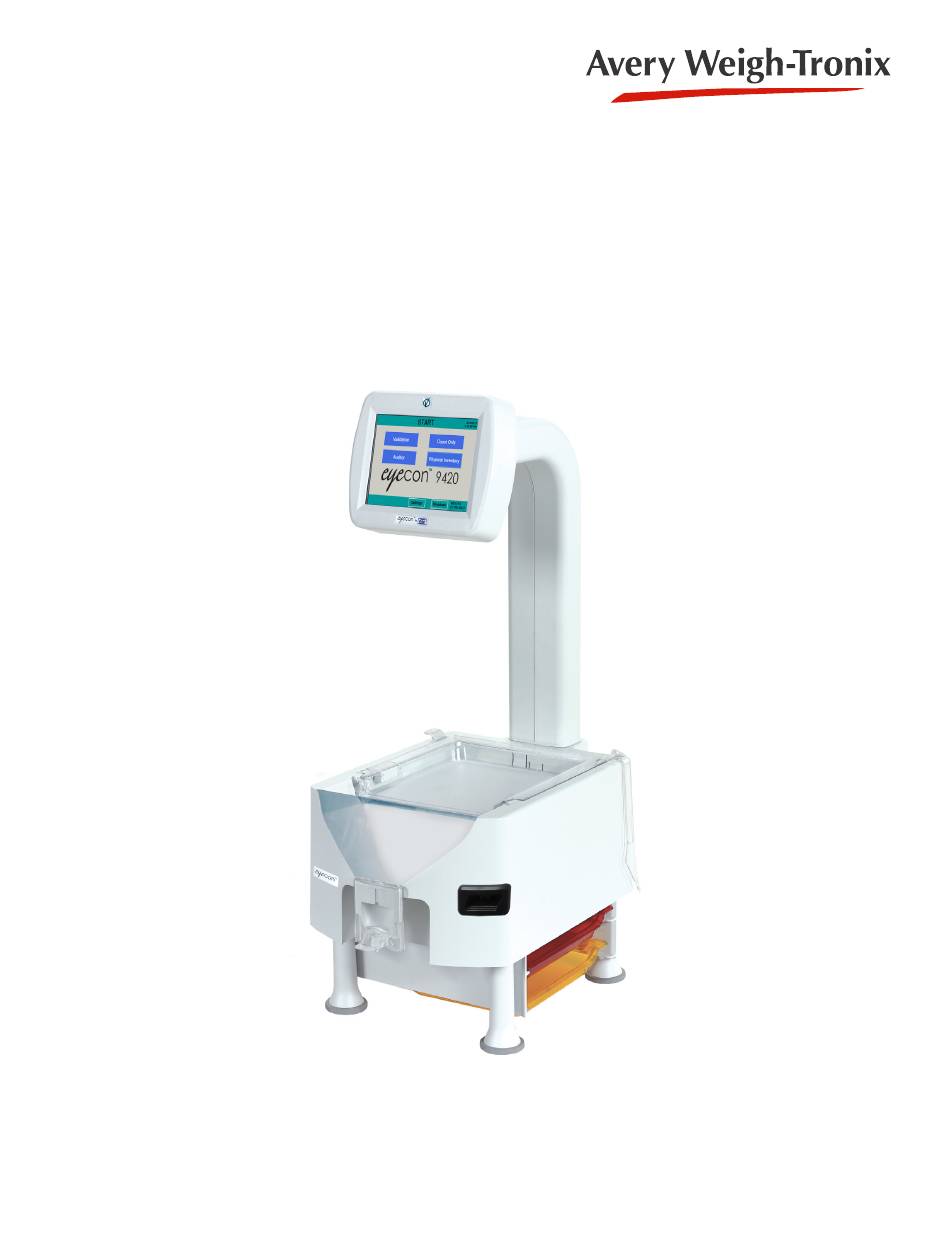

- Page 1 Eyecon 9420 Pill Counting, Inventory and Validation System Quick Reference Guide AWT35-501652 Issue AA...
- Page 2 This publication was correct at the time of going to print, however Avery Weigh-Tronix reserves the right to alter without notice the specification, design, price or conditions of supply of any product or service at any time.
-
Page 3: General Description
Quick Reference Guide Quick Reference Guide This Quick Reference Guide is not intended to cover all aspects of the Eyecon 9420's capabilities. Refer to the Instruction Manual at www.eyeconvpc.com for more details on other modes and specific operations. Eyecon package contents... -
Page 4: Configuration Settings
The second part of the list is shown in the right hand illustration above. Click on one of the parameters to view the available choices and make your selection. Eyecon 9420 Quick Reference Guide... - Page 5 Rx pamphlet matches the drug number associated with barcode on the stock item. From the START screen press Validation, shown at right. Scan or enter User ID if SCAN USER LOGIN is enabled. Eyecon 9420 Quick Reference Guide...
-
Page 6: Physical Inventory
Proceed to the Counting and Dispensing section below. Counting and dispensing Hold the barcode on the stock item about 2 to 5 inches from the scanner beam, with the red dot centered on the barcode. Eyecon 9420 Quick Reference Guide... - Page 7 87, estimate a scrape off of 20 to 25 pills. If you're still not within 7 pills, scrape off another group. When you get within 7 pills or less, you can easily scrape off the number required to reach your desired amount. Eyecon 9420 Quick Reference Guide...
- Page 8 If the item is a gel cap or a unit-of-use type (syrup, syringe, ointment, etc...) then select Hand Count, which will take you to a Hand Count screen. Otherwise, press Train Pill and go to step Eyecon 9420 Quick Reference Guide...
- Page 9 Current QTY. Press Add To Total to permanently save the current poured quantity as part of the Total QTY. Verify no pills fell into the funnel; if so, return those to the stock bottle. Eyecon 9420 Quick Reference Guide...
- Page 10 Powder and pill dust tends to accumulate on surfaces such as the rapid fill tray and funnel gate. Follow the note below for effective cleaning. You can use isopropyl alcohol in a spray bottle to wet surfaces and then wipe with a soft cloth or paper towel. Eyecon 9420 Quick Reference Guide...
- Page 11 Quick Reference Guide Eyecon 9420 Quick Reference Guide...
- Page 12 Avery Weigh-Tronix USA 1000 Armstrong Dr. Fairmont MN 56031 Toll Free: 866-260-6540 www.eyeconvpc.com Eyecon 9420 Quick Reference Guide...
