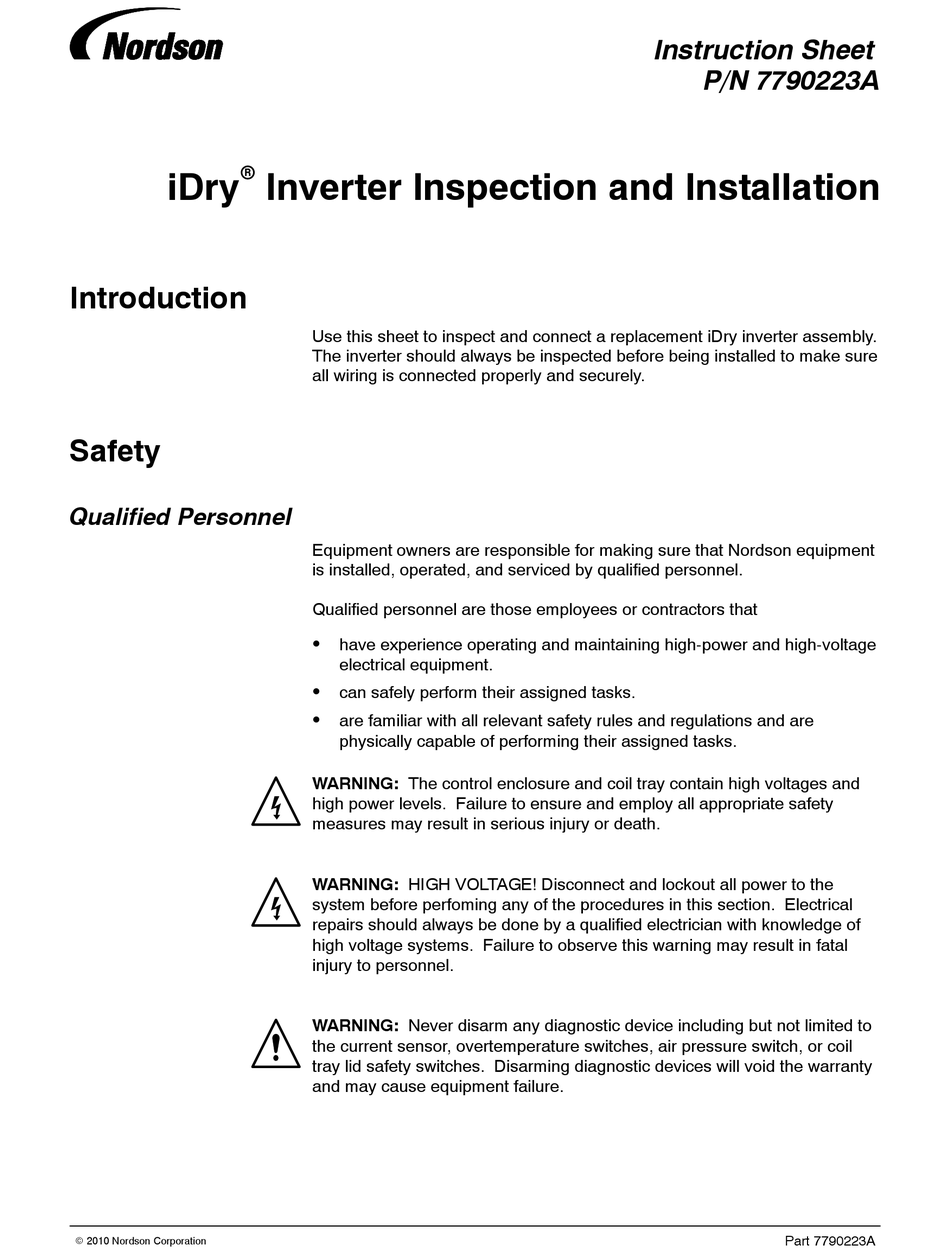

Nordson iDry Instruction Sheet

r
iDry

Introduction

Safety

Qualified Personnel
E 2010 Nordson Corporation
Inverter Inspection and Installation
Use this sheet to inspect and connect a replacement iDry inverter assembly.
The inverter should always be inspected before being installed to make sure
all wiring is connected properly and securely.
Equipment owners are responsible for making sure that Nordson equipment
is installed, operated, and serviced by qualified personnel.
Qualified personnel are those employees or contractors that
S
have experience operating and maintaining high-power and high-voltage
electrical equipment.
S
can safely perform their assigned tasks.
S
are familiar with all relevant safety rules and regulations and are
physically capable of performing their assigned tasks.
WARNING: The control enclosure and coil tray contain high voltages and
high power levels. Failure to ensure and employ all appropriate safety
measures may result in serious injury or death.
WARNING: HIGH VOLTAGE! Disconnect and lockout all power to the
system before perfoming any of the procedures in this section. Electrical
repairs should always be done by a qualified electrician with knowledge of
high voltage systems. Failure to observe this warning may result in fatal
injury to personnel.
WARNING: Never disarm any diagnostic device including but not limited to
the current sensor, overtemperature switches, air pressure switch, or coil
tray lid safety switches. Disarming diagnostic devices will void the warranty
and may cause equipment failure.
Instruction Sheet
P/N 7790223A
Part 7790223A
