Furo X
Owner's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Furo X and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Furo Systems Furo X

Summary of Contents for Furo Systems Furo X

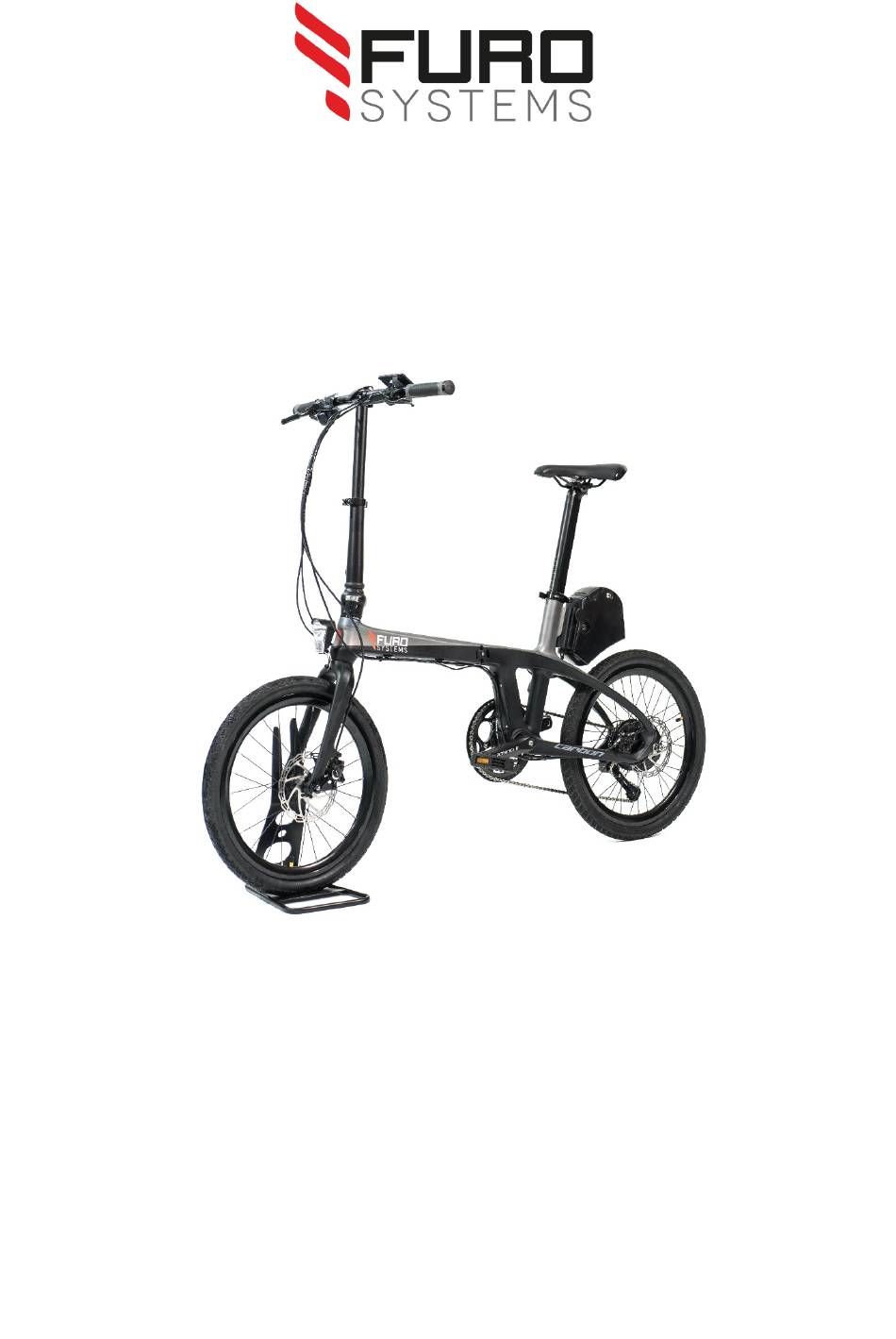

  • Page 1 Furo X Owner’s Manual...
  • Page 2 LOCKED Always wear a properly fitted Riding with an unlocked battery helmet when you ride your Furo X will lead to an unsecure connection and will damage the battery Cycling is an inherently dangerous activity. The likelihood of accidents is greatly increased if your Quick Release Skewer (or any part) is incorrectly installed.
  • Page 3 Your Package Contains Six Tool SET Bike Wrench Charger #2 Phillips screw driver 15 mm / 17 mm 2/3/4/5/6 mm Allen Key 36V Battery Pack 2x Battery keys 2x Pedals with USB Charging port and integrated indicators Front Headlight 2x Wheel Reflectors The Basics Push the power Press and hold the...
  • Page 4 Getting Your Bike Ready For Your First Ride Remove all the Unfold your FX and Locate and unfold packaging from lockout the frame the steering stem your new FX with the central lever Adjust the Slide the battery Raise and adjust the height of the above the rear seat post...
  • Page 5 Familiarize Yourself With Your FX Front Headlight Get a Grip On The FX Dashboard Battery Life Indicator Power Assist Level Front Brake Indicators Rear Brake Gear Indicator Mode And Power Level Select Button On-Board Computer Thumb Shifter...

  • Page 6: Technical Table

    Technical Table Motor BAFANG Rear Hub Motor Nominal/Peak Power 250W/500W 25km/h (can be modified via computer to Pedal Assist Top Speed comply with local regulations) Range More than 45km at average pace Charge Time 4.5hrs (2hrs with optional fast charger) Display Backlit LCD with controls CURTIS KD21C with modifiable speed limit...
  • Page 7 Folding Your FX Shorten the seat post and Identify the seat post and steering stem. (Optional) stem quick release levers. Press down the Pull the red security lock release lever Fold the Press the unlock Fold the FX stem button and release the central lock...

  • Page 8: Charging Procedure

    Charging Procedure Open the Plug the charger lead Insert the rubber charging into the mains charging lead port cover Charger light will turn Charger light will turn green Approx. 4 Hours red to indicate charging when charging is complete The On-Board Computer Systems What does your screen tell you? 3 Buttons Mode...
  • Page 9 Using The Pre-Installed Indicator Lights Switch on the indicators by You can activate the indicators pressing the white button behind using the remote on your the battery dashboard The indicator buttons will flash red when the indicators are activated. You can hold both left and right buttons to activate the hazard lights If the indicator remote is To recharge your Charge the indicators...
  • Page 10 Using The On-Board Computer Power On/Off Hold down the MODE button and the display will switch on and light up (if the battery has been switched on…). Hold down the MODE button again and the display will switch off. Walk assist mode Press and hold the DOWN button for 2 seconds and your e-bike motor will start to run at a uniform speed of 6 Km/h.

  • Page 11: Pre-Ride Checks

    Pre-Ride Checks Check the brakes by making Check that the central folding sure the levers cannot be mechanism is locked out and pulled all the way that the lever cannot be turned Make sure the stem is Ensure that seat tube is not securely locked up over extended Give Your FX Love And Attention...

  • Page 12: Safety Instructions

    Safety Instructions  Only use the provided battery charger.  Only charge the FX indoors, in a well ventilated and dry location (i.e. keep out of the rain and avoid extreme temperature fluctuations).  For ultimate charging, charge at temperatures between 0°C and 50°C.

  • Page 13: Warranty

    Warranty FuroSystems guarantees each new bicycle frame against defects in workmanship and materials for two years. All original components are also covered by warranty for a period of two years from the date of purchase. This warranty is expressly limited to the replacement of a defective frame, or defective parts and is the sole remedy of the warranty.
  • Page 14 WARNING! Your bicycle must comply with your countries legal requirements when riding on public roads and in all conditions, including bad weather, night time, dusk or dawn. Many countries require specific safety devices. It is your responsibility to familiarize yourself with the laws of the country where you ride and to comply with all applicable laws including properly equipping yourself and your bike as the law requires...

  • Page 15: Copyright Notice

    Copyright Notice © Copyright FuroSystems LTD. All rights reserved. This material provided by FuroSystems LTD is the property of FuroSystems LTD and is protected by copyright, trademark and other intellectual property laws. You may view this material and print this material only for personal use, provided that you maintain all copyright, trademark and other proprietary rights or notices.
