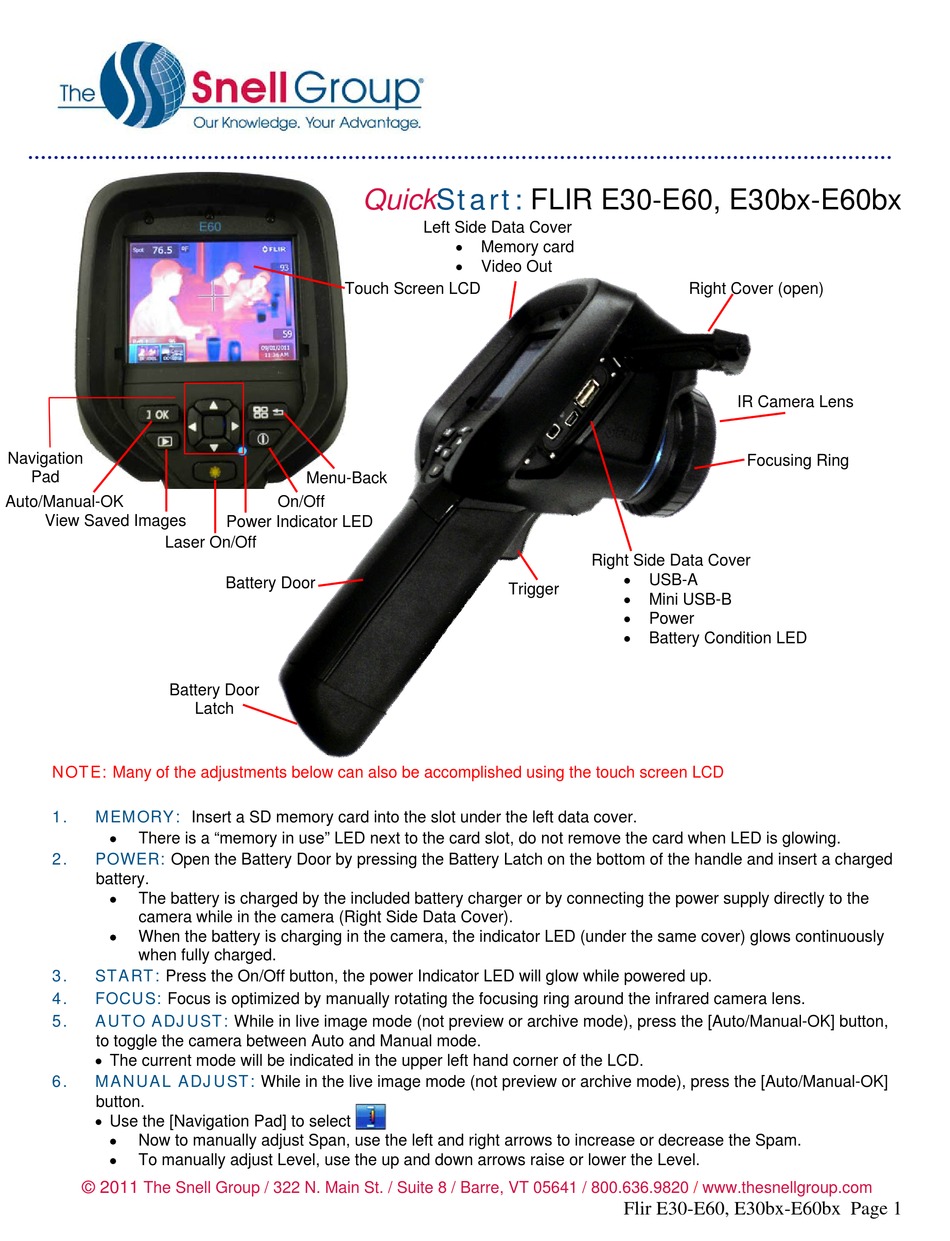

The Snell Group FLIR E30 Quick Start

Navigation
Pad
Auto/Manual-OK
View Saved Images
Laser On/Off
Battery Door
NOTE: Many of the adjustments below can also be accomplished using the touch screen LCD
1.

MEMORY:


There is a "memory in use" LED next to the card slot, do not remove the card when LED is glowing.
2.

POWER:

Open the Battery Door by pressing the Battery Latch on the bottom of the handle and insert a charged
battery.

The battery is charged by the included battery charger or by connecting the power supply directly to the
camera while in the camera (Right Side Data Cover).

When the battery is charging in the camera, the indicator LED (under the same cover) glows continuously
when fully charged.
3.

START:

Press the On/Off button, the power Indicator LED will glow while powered up.
4.

FOCUS:

Focus is optimized by manually rotating the focusing ring around the infrared camera lens.
5.

AUTO ADJUST:

to toggle the camera between Auto and Manual mode.
 The current mode will be indicated in the upper left hand corner of the LCD.
6.

MANUAL ADJUST:

button.
 Use the [Navigation Pad] to select

Now to manually adjust Span, use the left and right arrows to increase or decrease the Spam.

To manually adjust Level, use the up and down arrows raise or lower the Level.
© 2011
The Snell Group / 322 N. Main St. / Suite 8 / Barre, VT 05641 / 800.636.9820
QuickStart:
Touch Screen LCD
Menu-Back
On/Off
Power Indicator LED
Battery Door
Latch
Insert a SD memory card into the slot under the left data cover.
While in live image mode (not preview or archive mode), press the [Auto/Manual-OK] button,
While in the live image mode (not preview or archive mode), press the [Auto/Manual-OK]
FLIR E30-E60, E30bx-E60bx
Left Side Data Cover

Memory card

Video Out
Right Side Data Cover
Trigger
Right Cover (open)
IR Camera Lens
Focusing Ring

USB-A

Mini USB-B

Power

Battery Condition LED
/ www.thesnellgroup.com
Flir E30-E60, E30bx-E60bx Page 1
