APPLICATIONS
Bleeding tool for all SeaStar
and BayStar steering systems.
FEATURES
• Makes bleeding systems
simple, ensuring steering feel
is solid every time
• 100% portable
• Powered by 12v battery
• Fast and efficient set up
• Quick connect fittings
• Easy to operate
• Filter screens help keep
contamination out of your
steering system
• Complete Fill & Purge in 10
minutes or less
• Optional Dual Cylinder
Purging Kit HA5461 available
Issue Date - Aug 2016
Issue Number - pas6

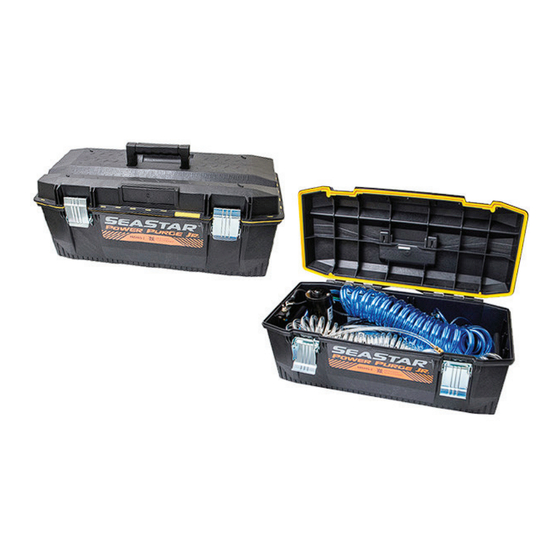

SEASTAR POWER PURGE JR
The EASY way to 100% purge air out of BayStar and SeaStar hydraulic steering systems.
The Power Purge Jr. reduces installation and warranty costs while enhancing the quality of the
boat to the end user. A typical manual fill and purge takes the average experienced installer
or service technician about 30 minutes per boat - by using the Power Purge Jr. this can be
reduced to 10 minutes or less.
ORDER INFORMATION
COMPONENTS
Power Purge Jr.
50 ft Hose Extension Kit
Dual Cylinder Purging Kit
SPARE PARTS
Motor Replacement Kit
Helm Adapter Kit
Quick Connect Hose Ends
Hose/Quick Connect Replacement Kit
Low Profile Hose Fitting Kit
Power Purge Service Kit
®
PART No.
HA5445-2
HA5462
HA5461
HP6116
HP6148
HP6170
HP6171
HP6149
HP6125
www.seastarsolutions.com
Page 1 / 3
Advertisement
Summary of Contents for SeaSTAR POWER PURGE JR HA5445
- Page 1 • Quick connect fittings • Easy to operate The EASY way to 100% purge air out of BayStar and SeaStar hydraulic steering systems. • Filter screens help keep The Power Purge Jr. reduces installation and warranty costs while enhancing the quality of the contamination out of your boat to the end user.
- Page 2 NOTICE: Instructions shown below are for a single cylinder/single helm “manual” steering For dual helm applications, system. For detailed instructions when using SeaStar Power Assist and/or Catamaran steering install non-vent plug in upper systems, please refer to your Installation and Owner’s Manual...
- Page 3 Page 3 / 3 SEASTAR POWER PURGE JR Step 3. Disconnection and Testing • Disconnect all the hoses and place them back in the box. Remove the quick coupling adapter. • Disconnect the Power Purge Jr. from the battery. • Push on the cylinder to ensure that it does not move more than 1/4” in either direction.
