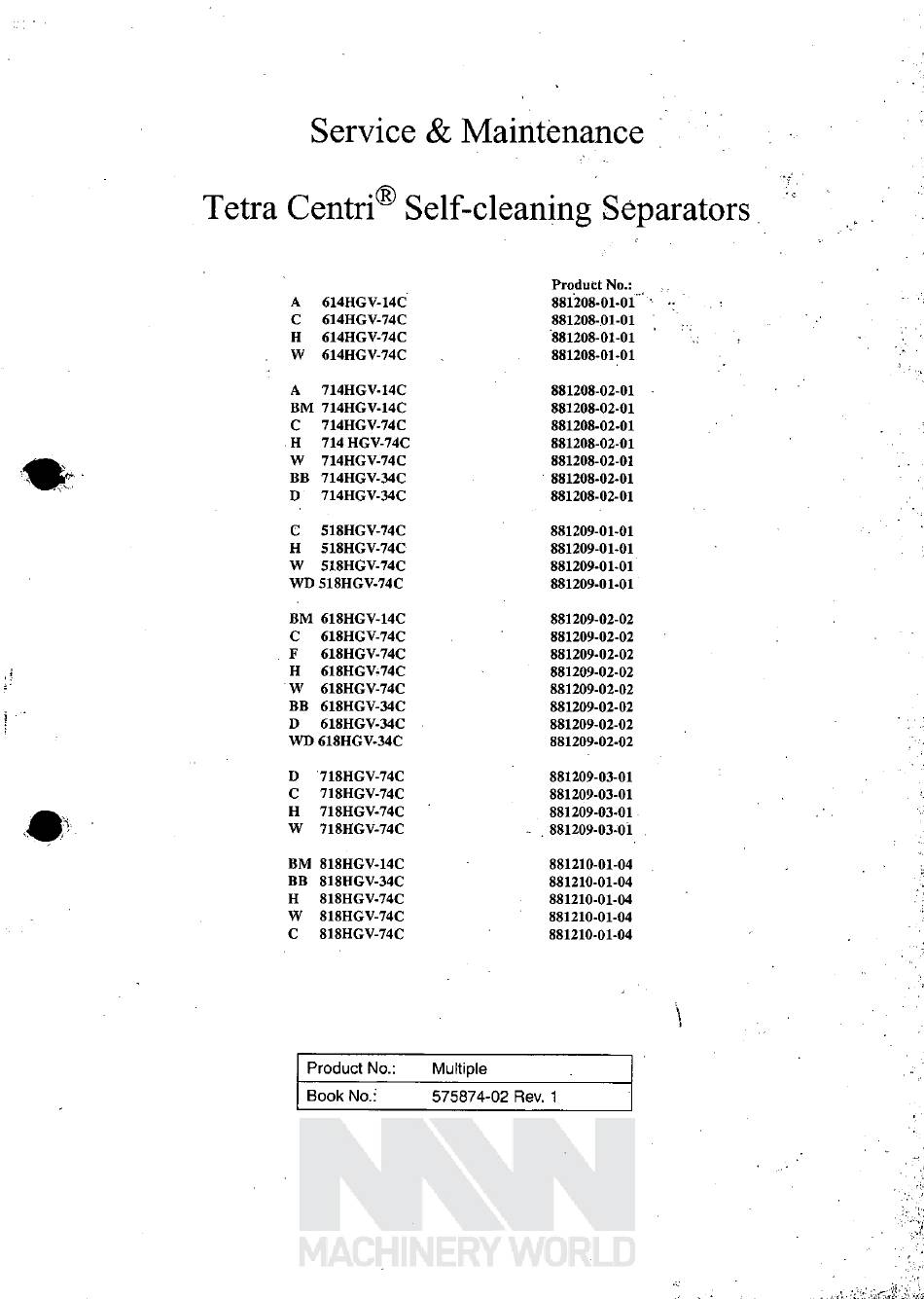

Machinery World Tetra Centri A 614HGV-14C Service & Maintenance

Self-cleaning separators
Hide thumbs
Table of Contents

Advertisement

Quick Links

Service & Maintenance
Tetra Centri® Self-cleaning Separators
Product No.:
A
614HGV-14C
881208-01-01
C
614HGV-74C
881208-01-01
H
614HGV-74C
"881208-01-01
W
614HGV-74C
881208-01-01
A
714HGV-14C
881208-02-01
BM 714HGV-14C
881208-02-01
C
714HGV-74C
881208-02-01
H
714 HGV-74C
881208-02-01
W
714HGV-74C
881208-02-01
BB 714HGV-34C
881208-02-01
D
714HGV-34C
881208-02-01
e
518HGV-74C
881209-01-01
H
518HGV-74C
881209-01-01
W
518HGV-74C
881209-01-01
WD 518HGV-74C
881209-01-01
BM 618HGV-14C
881209-02-02
C
618HGV-74C
881209-02-02
F
618HGV-74C
881209-02-02
H
618HGVr74C
881209-02-02
W
618HGV-74C
881209-02-02
BB 618HGV-34C
881209-02-02
D
618HGV-34C
881209-02-02
WD 618HGV-34C
881209-02-02
D
718HGV-74C
881209-03-01
C
718HGV-74C
881209-03-01
H
718HGV-74C
881209-03-01
W
718HGV-74C
- . 881209-03-01
BM 818HGV-14C
881210-01-04
BB 818HGV-34C
881210-01-04
H
818HGV-74C
881210-01-04
W
818HGV-74C
881210-01-04
C
818HGV-74C
881210-01-04
Product No.:
Multiple
Book No.:
575874-02 Rev. 1
