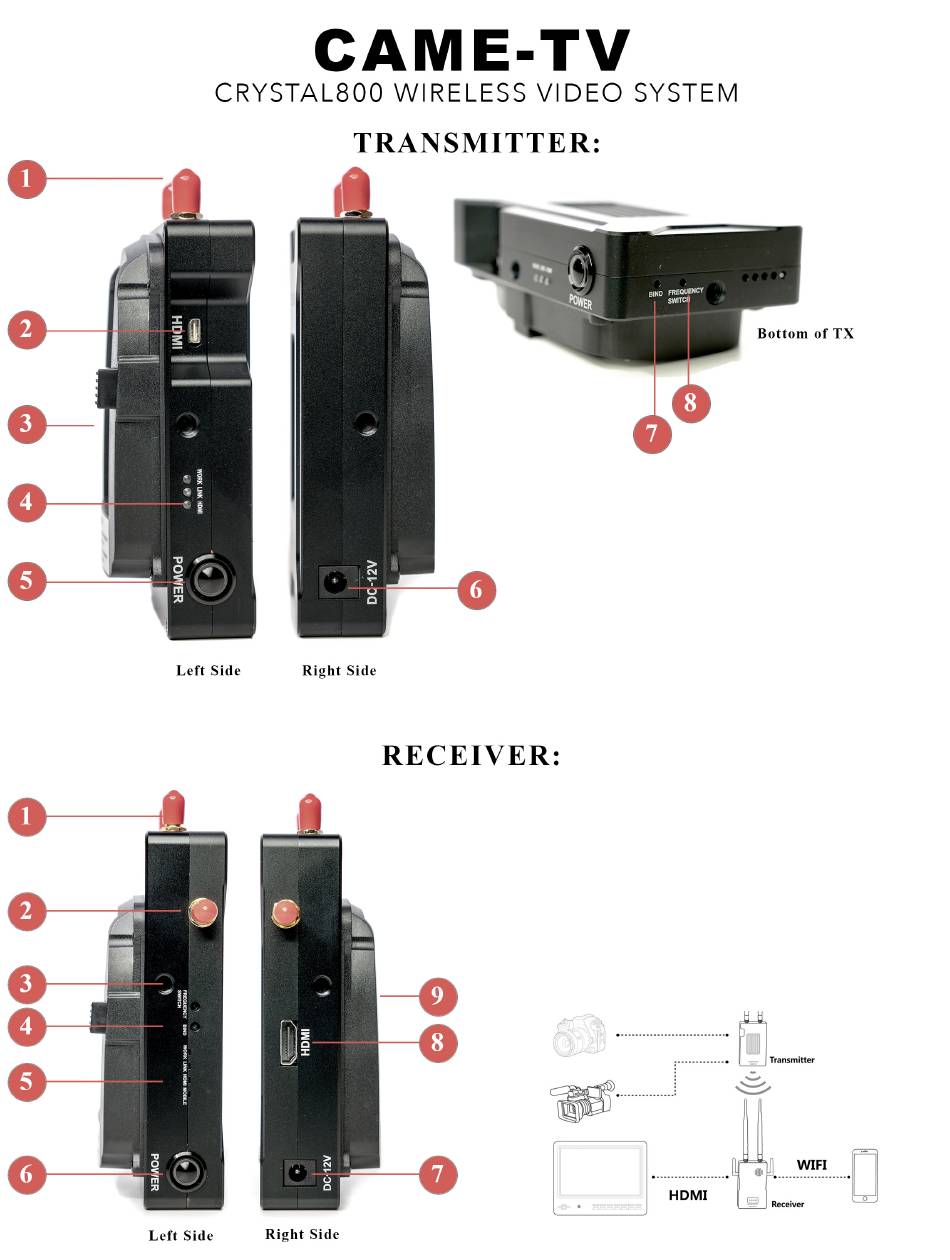

1. Antenna Mount
2. HDMI Input (Type D Micro)
3. Sony L-Series Battery Mount (i.e NP-F970,NP-F570)
4. LED Status Lights
5. ON / OFF Button
6. 12V DC Input
7. BIND Button (for pairing TX and RX)
8. Frequency Switch Button
1. Antenna Mount
2. Small Antenna Mount
3. 1/4" Thread for Mounting
4. Bind Button / Frequency Switch Button
5. LED Status Lights
6. ON / OFF Button
7. 12V DC Input
8. HDMI Output (Type A Full Size)
9. Sony L-Series Battery Mount (i.e NP-F970, NP-F570)
Advertisement
Table of Contents
Summary of Contents for CAME-TV CRYSTAL800
- Page 1 1. Antenna Mount 2. HDMI Input (Type D Micro) 3. Sony L-Series Battery Mount (i.e NP-F970,NP-F570) 4. LED Status Lights 5. ON / OFF Button 6. 12V DC Input 7. BIND Button (for pairing TX and RX) 8. Frequency Switch Button 1.

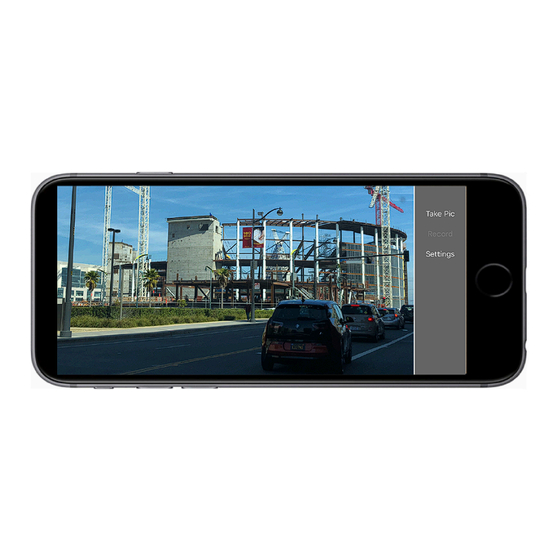

- Page 2 CRYSTAL-800 W IRELESS IOS APP Download & Install the CAME-TV Crystal application for iOS https://itunes.apple.com/us/app/crystal-800-video-transmitter/id1355466675 Connect HDMI Cable from the Crystal-800 Transmitter to Camera. Power on both the Transmitter and Receiver. From iOS Device connect Wifi network ‘CAME-TV’ Password: 12345688 ...
- Page 3 Function specification Communication distance (outdoor, 800mw transmission distance ≥ 800m no obstruction) Wall Penetration ability 3 cement walls; 1 ferroconcrete wall Output Power 25mw-800mw adjustable Sensitivity -95dbm±2dbm Frequency Physics specification working temperature -10~60℃ storage temperature -20~50℃ dimension (including the shell, not Transmitter: L.114mm x W.
- Page 4 OSD (On Screen Display) Icons " ：Video signal intensity " ：Transmitter power voltage POWER：Transmitting power " ：Current frequency " ：Receiver power voltage ：Current Picture Quality " ：Audio button state " INFO setting Click OSD button, select "Turn-on" or "Turn off", match to the "Display" or "Not display" 8.1.1 Power setting Click "setting"...
- Page 5 (HDMI, LINK, WORK) are turned off, release the Frequency Button. 3 lights will flash as 0.5Hz frequency, and then 4 lights turn back to normal state. This means the frequency channel change has completed. Frequencies supported by CAME-TV Crystal-800： 5180 5220...
- Page 6 Troubleshooting No Video Display on Remote HDMI Monitor Restart both the Transmitter and Receiver. This is required if resolution has changed on your camera. Check for power on both Transmitter and Receiver. LED Indicator lights should be working. Make sure batteries have enough power. Low voltage may not allow the Crystal-800 to work correctly.
- Page 7 Restart the Crystal-800 TX and RX. Make sure you are using the latest version of the Crystal-800 iOS Application from the App Store. Check to make sure you are connected to the CAME-TV Wifi Network. Default password is 12345688 Completely exit and Relaunch the Application.
