Sideline Power Legacy 27’ Manual

End zone camera
Hide thumbs

Advertisement

Quick Links

Download this manual
Legacy 27' End Zone Camera

Advertisement

loading
Need help?

Need help?

Do you have a question about the Legacy 27’ and is the answer not in the manual?

Questions and answers

Summary of Contents for Sideline Power Legacy 27’

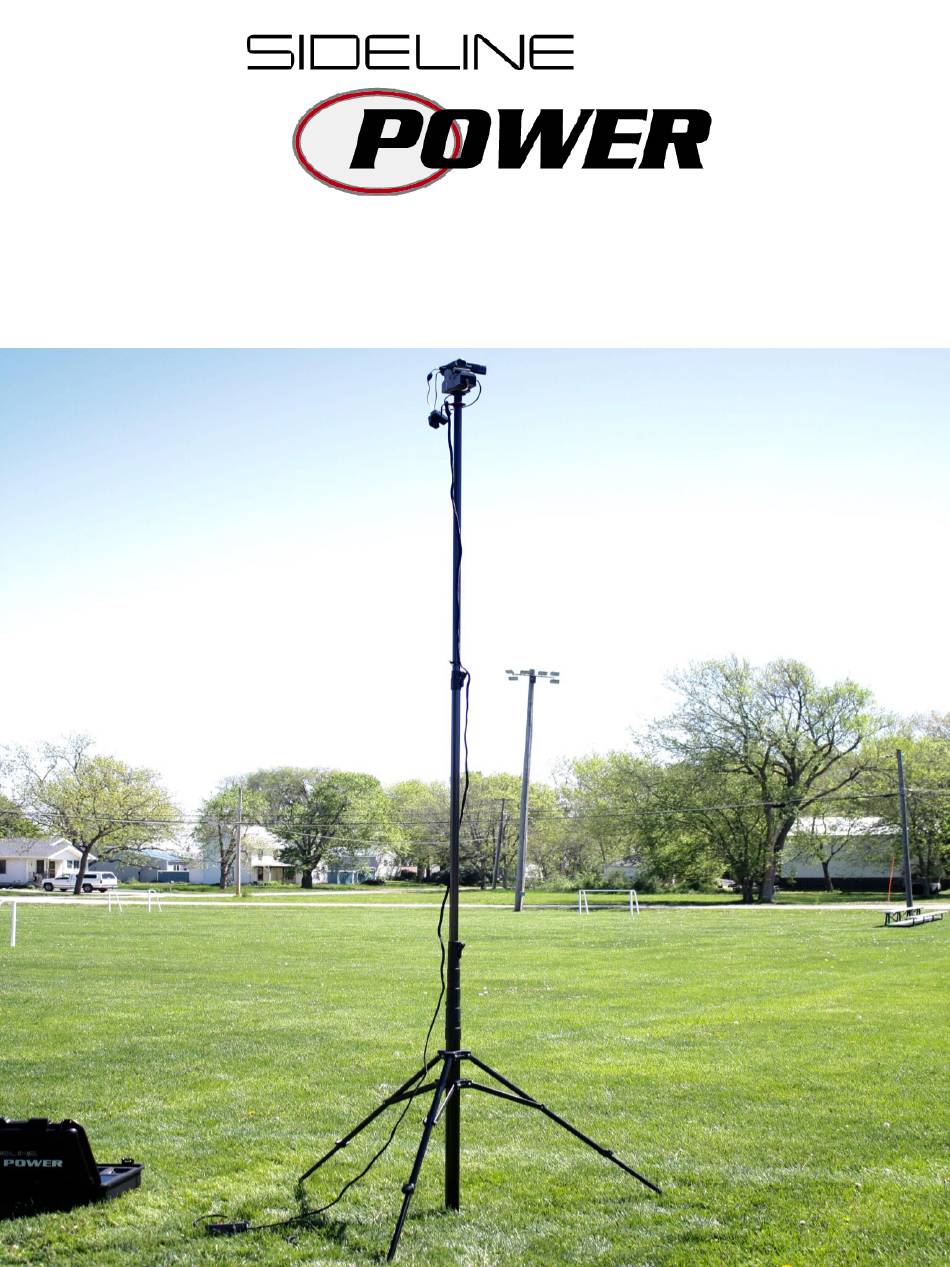

  • Page 1 Legacy 27’ End Zone Camera...

  • Page 2: Table Of Contents

    Legacy 27’ End Zone Camera Table Of Contents Case Contents Tripod Set-Up Attach the Camera and Pan/Tilt Module Raising the Mast Attaching the Monitor...

  • Page 3: Case Contents

    Case Contents Lilliput Monitor Monitor Battery Charger Pan/Tilt Module Monitor Battery SONY Video Camera Miscellaneous Cords Remote Control...

  • Page 4: Tripod Set-Up

    Tripod Set Up Take the mast with attached tripod out of the bag and stand it up vertically so that the three feet are on the ground and the red ring on the opposite end of the mast is towards the sky. There are two collars that attach the tripod legs to the mast.
  • Page 5 Locate the thumb locks towards the end of each tripod leg. Unlock one thumb lock and extend the extendible leg out as far as it will extend then lock the thumb lock so that the extendible leg doesn’t retract. Repeat this step for the other two legs. At this point your tripod set up should look similar to this.

  • Page 6: Attach The Camera And Pan/Tilt Module

    Attach the Camera and Pan/Tilt Module SONY Video Camera Pan/Tilt Module Open the Sideline Power Carrying case and locate the grey pan/tilt module and SONY video camera. Remove both the pan tilt module and SONY video camera from the case.
  • Page 7 Locate the screw sticking straight up out of the top of the tripod mast and screw this into the threaded insert in the bottom of the pan/tilt module. At this point your tripod/camera set up should look similar to this.
  • Page 8 Locate the red ring and eye hook that are toward the top of the mast. On the master cable that is connected to the pan/tilt remote, there is a carabiner attached to the end with all the cable connections. Attach this carabiner to the red eyehook on the red ring toward the top of the mast.
  • Page 9 Plug the remote cable into As you are looking at the Plug the micro USB power the remote socket on the back of the camera, on the cord into the micro USB front of the pan/tilt module. right side, plug the USB power port on the right side cable into the USB cord from of the SONY video camera.
  • Page 10 On the front of the pan/tilt module, make sure the switches are set to 340° and M for manual control. Pick up the remote control and make sure the green light in the upper right corner labeled “on” is lit. Press the button that corresponds to the left arrow to make sure the pan feature works then press the button that corresponds to the right arrow to bring the camera back to...

  • Page 11: Raising The Mast

    Raising the Mast There are six thumb lock collars running up the side of the mast. Unlock the top thumb lock collar and extend the smallest diameter of mast, raising the camera skyward. Once this section of mast is extended, lock the thumb lock collar so that this section of mast is locked in place and unable to retract.

  • Page 12: Attaching The Monitor

    Attaching the Monitor In the case, locate the mast/monitor collar. Loosen the thumb screw and swing the screw out and away from the collar. The collar should hinge open allowing you to clamp it around the mast. Clamp the mast/monitor collar around the mast and reset the screw in place across the two halves of the collar.
  • Page 13 Locate the Lilliput monitor and monitor battery brick then remove them from the case. On the center of the back of the Lilliput monitor you will find a dock for the battery brick to slide into. Starting at the top of the dock, slide the battery brick down into the dock until it clicks into place.
  • Page 14 Take the RCA to LCD cord and plug one end of the cord into the only open port on the back of the Lilliput monitor. Insert the other end of the RCA to LCD cord into the port on the right side of the camera controller. On the lower corner of the back of the Lilliput monitor you will find an on off switch.
  • Page 15 Once the set up is complete, you are ready to start recording. P.O. Box 192 Greenwood, NE 68366 Phone: 800-496-4290...
