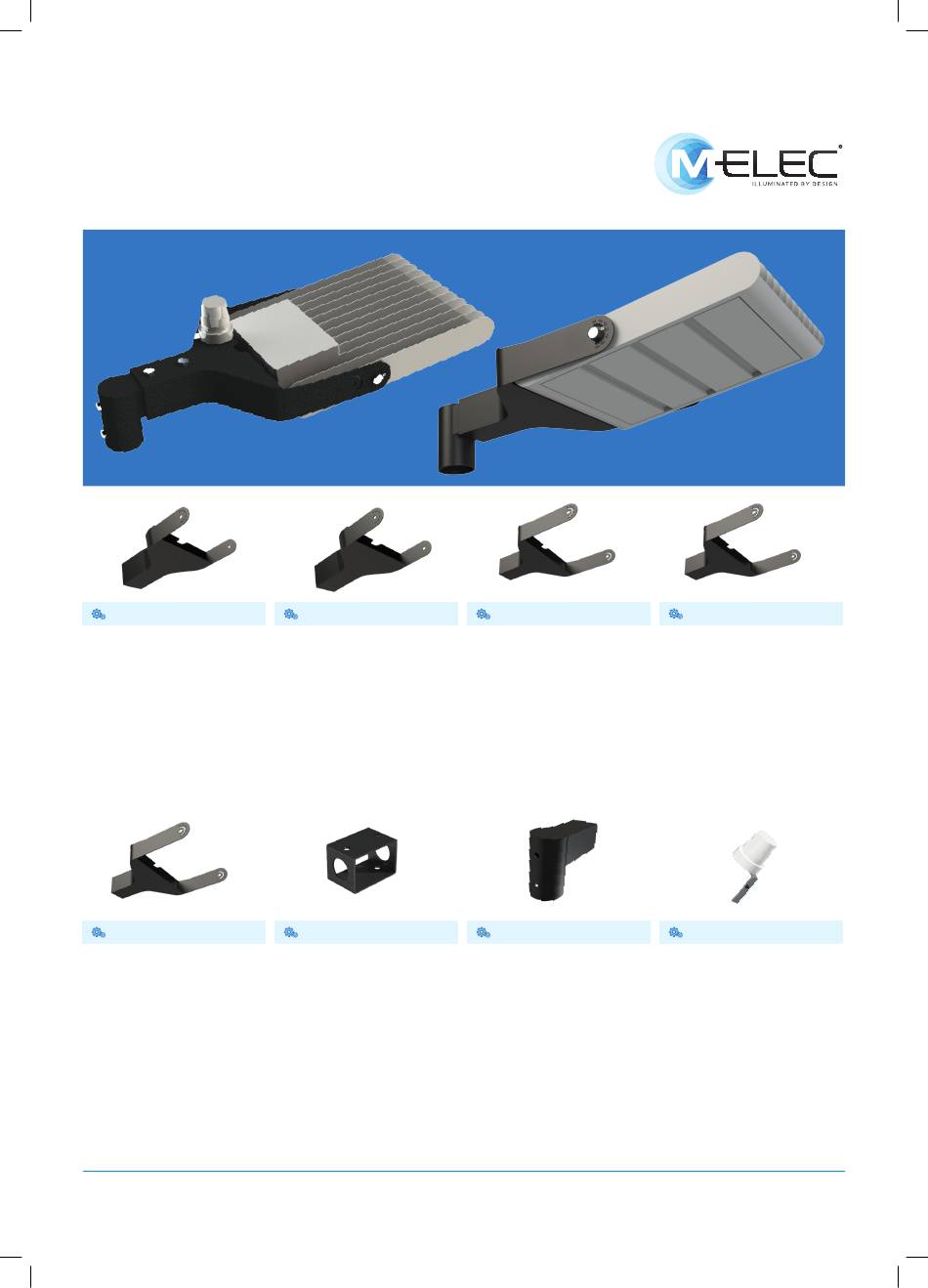

Design Melec ML-NOX3BKT Manual

NOX brackets
ML-NOX3BKT, ML-NOX5BKT, ML-NOX10BKT,
ML-NOX20BKT, ML-NOX30BKT, ML-NOXSP, ML-NOXSPBKT, ML-PE10

ML-NOX3BKT Technical details

Bracket for pole installation of NOX
floodlight
Suits: NOX3-V2
Length: 307 mm
Width: 177 mm
Height: 72 mm
Pole mounting dimensions: 62 x 62mm
Weight: 1.96kg
Material: Steel
Colour: Black
Kit includes: Bracket, securing bolts

ML-NOX30BKT Technical details

Bracket for pole installation of NOX
floodlight
Suits: NOX30-V2
Length: 409 mm
Width: 326 mm
Height: 72 mm
Pole mounting dimensions: 62 x 62mm
Weight: 2.7kg
Material: Steel
Colour: Black
Kit includes: Bracket, securing bolts
www.melec.com.au
Due to our policy of continuous product improvement, we reserve the right to discontinue or update product specifications
or designs at any time without notice. Please visit www.melec.com.au for the latest information on our products.

ML-NOX5BKT Technical details

Bracket for pole installation of NOX
floodlight
Suits: NOX5-V2
Length: 318 mm
Width: 223 mm
Height: 72 mm
Pole mounting dimensions: 62 x 62mm
Weight: 2.2kg
Material: Steel
Colour: Black
Kit includes: Bracket, securing bolts

ML-NOXSP Technical details

Straight pole spigot adapter for NOX
brackets
Suits: NOX3BKT, NOX5BKT,
ML-NOX10BKT, ML-NOX20BKT,
ML-NOX30BKT
Length: 90mm
Width: 60mm
Height: 60mm
Pole mounting dimensions: 25-34mm
diameter
Weight: 0.34kg
Material: Steel
Colour: Black
Kit includes: Adapter, securing bolts

ML-NOX10BKT Technical details

Bracket for pole installation of NOX
floodlight
Suits: NOX10-V2, NOX15-V2
Length: 373 mm
Width: 326 mm
Height: 72 mm
Pole mounting dimensions: 62 x 62mm
Weight: 2.6kg
Material: Steel
Colour: Black
Kit includes: Bracket, securing bolts

ML-NOXSPBKT Technical details

Right angle pole adapter for NOX
brackets
Suits: NOX3BKT, NOX5BKT,
ML-NOX10BKT, ML-NOX20BKT,
ML-NOX30BKT
Length: 189mm
Width: 70mm
Height: 124mm
Pole mounting dimensions: 50-60mm
diameter
Weight: 1.49kg
Material: Steel
Colour: Black
Kit includes: Adapter, securing bolts

ML-NOX20BKT Technical details

Bracket for pole installation of NOX
floodlight
Suits: NOX20-V2
Length: 378 mm
Width: 326 mm
Height: 72 mm
Pole mounting dimensions: 62 x 62mm
Weight: 2.65kg
Material: Steel
Colour: Black
Kit includes: Bracket, securing bolts

ML-PE10 Technical details

PE cell light control sensor for NOX
floodlight brackets
Suits: NOX3BKT, NOX5BKT,
ML-NOX10V2BKT, ML-NOX20V2BKT,
ML-NOX30V2BKT
Voltage: 100-240AC
Frequency: 50/60hz
Current: 10A
Power rating: 300W max for LED
1000W max for incandescent light
Sensitivity: 5~100LUX
Diameter: 63mm
Height: 75mm
