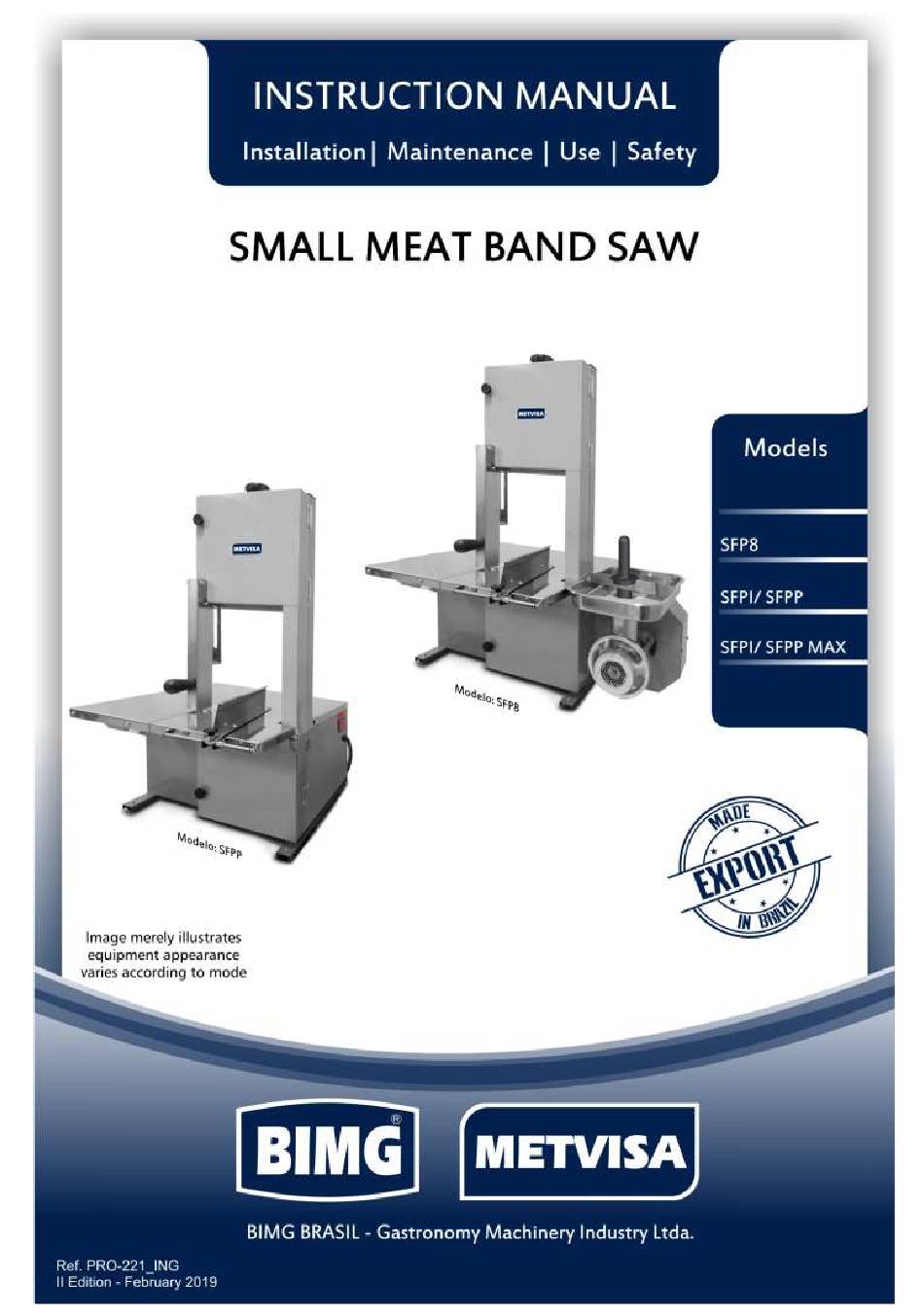

Summary of Contents for BIMG METVISA SFP8 Series
-
Page 2: Table Of Contents
Blown up Design ......................18 List of Spare Parts ......................20 ATTENTION! The characteristics, pictures and figures presented in this manual should be considered for information. BIMG BRASIL reserves the right to make such modifications as may be deemed necessary without prior notice. -
Page 3: Safety Information
1. Safety Information 1.1 General Warnings • Cautions / precautions must be observed when installing, using, maintaining and discontinuing use of this machine; • Before carrying out any operation (assembly, utilization (use), maintenance and reuse after prolonged use of the machine), read the manual carefully; •... -
Page 4: Technical Features
2. Technical Characteristics 2.1Main Components For the equipment described in this manual, safety in use, cleaning, maintenance and maximum hygiene are guaranteed by the design and special design of all parts and also by using stainless steel and other materials suitable for contact with the food. The machine was built with the following features: •... -
Page 5: Technical Data
2.2 Technical Data Current Net Weight Nominal Measures Voltage Electric Cable Extended Model Nominal (Approx.) engthxHeightxDepth (Code BIMG) Blade (mm) (kg) (mm) SFP8110M60S4 41.6 CBE001 SFP8220M50S1 41.6 CBE023 SFP8220M50S2 41.6 CBE029 750x860x610 1780 SFP8220M50S4 41.6 CBE030 SFP8220M60S4 41.6 CBE030 SFPI110M60S4 33.4... -
Page 6: Installation
3. Installation 3.1 Machine Layout The connection to the mains and the arrangement for operation must be carried out by a qualified professional. Check that the machine voltage matches the mains voltage. In the installation, it is essential to make this manual available to the professionals who will do the same. -
Page 7: Safety Measures And User Instruction
3.2 Safety Measures and User Instruction Your machine has mechanical protections and a safety system that prevents the machine from operating if the door is open. Removal or tampering with these safety components can cause serious hazards to the operator. ATTENTION! Before operating your machine, check that the blade teeth are pointing downward, and that the direction of rotation of the wheels is counterclockwise. -
Page 8: Commands
4.2 Commands The machine consists of a master key (switch), on / off and emergency button. On the left side are the on / off and emergency buttons. The main switch is positioned on the right side of the case. See description of each command below: •... - Page 9 • Assembly of the grinder (Saw Model SFP8): The assembly procedure is the reverse of the disassembly. When tightening the nozzle nut, do not tighten it, only rotate until the end of the thread, but without tightening. To reassemble the nozzle, make sure that all the internal parts are assembled (disc, cross knife, spool pin and spool), and then attach it perfectly to the holder and attach it with the knob.
- Page 10 • Cutting Operation: For the SFP8 saw model, before starting the cutting operation, loosen the grinder nut counterclockwise. 1. Connect the power cord to the mains; 2. Place the food to be processed on the attached table; IMPORTANT Never place a cutting food larger than the mobile table. 1.
- Page 11 ATTENTION! When repeating the cutting operation, be careful when pulling the food forward of the attached table so that it does not touch the back (smooth) of the blade. In this way there is no risk of the food moving or even releasing the blade from the wheels, causing accidents. 5.
-
Page 12: Cleaning And Maintenance
ATTENTION! If you notice that the machine can not slice the food or that it is not slicing, do not cut foods too thick, so as not to impair the speed and performance of the motor and the life of the machine. -
Page 13: Maintenance And Procedures In Case Of Breakdowns
neutral and apply with a soft cloth. With a cloth moistened with water, rinse and then wipe the parts with a dry cloth. In the model of saw SFP8, it has the grinder that can be removed and disassembled for the cleaning. - Page 14 ATTENTION! Before adjusting or changing the blade, make sure the machine is disconnected from the mains, if the operator is using the appropriate PPE (personal protective equipment) and appropriate tools for disassembly and assembly of the parts cited below. • Procedure for Adjusting and Changing the Blade (Band Saw): Blade Adjustment: 1.
- Page 15 9. Before attaching the new blade to the wheels, note the direction of the blade teeth, where they should be facing forward and pointing downwards; 10. The blade should be positioned centrally on the steering wheels; 11. After proper tensioning of the blade, as instructed a little (Blade Adjustment Procedure), retighten the blade tensioner nut;...
- Page 16 ATTENTION! Check the ideal tension of the blade before starting the cutting process, because when the tension is insufficient, cutting deviations occur and premature wear of the blade. Excessive tension, in turn, can cause the blade to break. • Adjustment / Tensioning Strap Procedure: 1.
-
Page 17: Annexes
6. ANNEXES Electrical schematic... -
Page 18: Blown Up Design
Blown up Design... - Page 19 Blown up Design...
-
Page 20: List Of Spare Parts
Replacement parts Position Code Description Qty. Model MON040 SFPP MON042 SFP8 Monobloc MON002 SFPI PEP004 Rubber Foot PRR015 SFP8 / SFPP Mac. Screw Round PRR022 SFPI POS006 SFP8 / SFPP Hexagonal Nut POS020 SFPI SFPI PRA004 Auto Locking Screw SFP8 / SFPP CJT836 SFPP CJT837... - Page 21 Replacement parts Position Code Description Qty. Model POS003 SFP8 / SFPP Hexagonal Nut POS015 SFPI MNL033 SFP8 / SFPP Knob MNL048 SFPI CJT051 SFP8 / SFPP Full Upper Wheel CJT377 SFPI POS005 SFP8 / SFPP Hexagonal Nut POS021 SFPI SFL001 Band Saw Blade TAP139 SFP8 / SFPP...
- Page 22 Replacement parts Position Code Qty. Model Description TAP019 SFP8 / SFPP Rear Cover TAP020 CBE023 Electrical Cable (Type 1) CBE029 Electrical Cable (Type 2) CBE030 Electrical Cable (Type 4) CBE001 Electrical Cable (Type 4) CBE175 Electrical Cable (Type 7) TCE021 Print Cable BOT003 Emergency Button...
- Page 24 BIMG-BRASIL Indústria de Máquinas para Gastronomia Ltda. CNPJ 11.193.347/0001-14 - CREA 131726-3 Rod. Antônio Heil - KM 23 Nº 5825 - Bairro: Limoeiro ZIP CODE 88352-502 - Brusque - SC - Brazil Phone/fax. +55 47 3251-5555 - Website: www.metvisa.com.br E-mail: sac@metvisa.com.br - vendas@metvisa.com.br...
