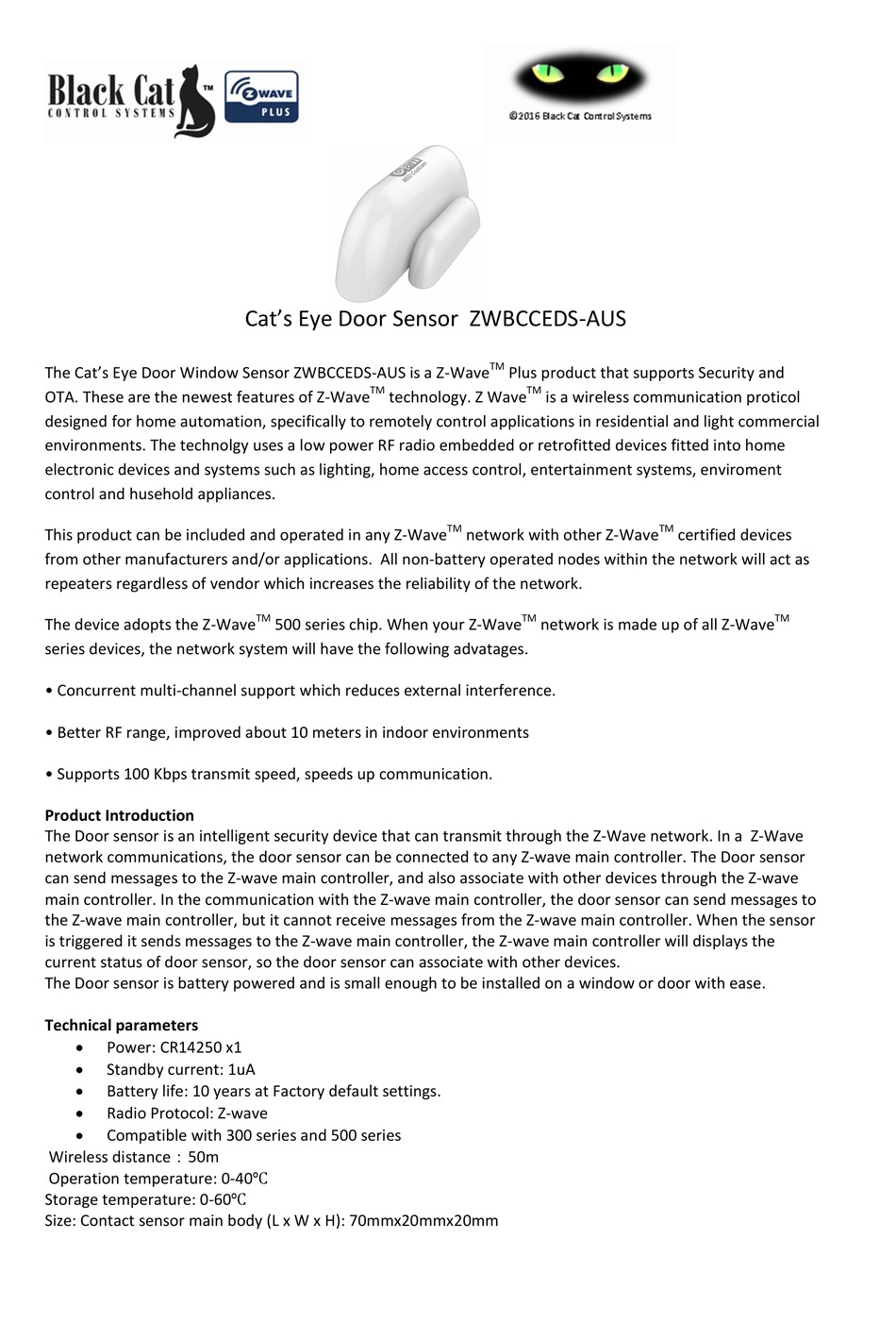

Black cat Cat’s Eye Manual

The Cat's Eye Door Window Sensor ZWBCCEDS-AUS is a Z-Wave
OTA. These are the newest features of Z-Wave
designed for home automation, specifically to remotely control applications in residential and light commercial
environments. The technolgy uses a low power RF radio embedded or retrofitted devices fitted into home
electronic devices and systems such as lighting, home access control, entertainment systems, enviroment
control and husehold appliances.
This product can be included and operated in any Z-Wave
from other manufacturers and/or applications. All non-battery operated nodes within the network will act as
repeaters regardless of vendor which increases the reliability of the network.
The device adopts the Z-Wave
series devices, the network system will have the following advatages.
• Concurrent multi-channel support which reduces external interference.
• Better RF range, improved about 10 meters in indoor environments
• Supports 100 Kbps transmit speed, speeds up communication.
Product Introduction
The Door sensor is an intelligent security device that can transmit through the Z-Wave network. In a Z-Wave
network communications, the door sensor can be connected to any Z-wave main controller. The Door sensor
can send messages to the Z-wave main controller, and also associate with other devices through the Z-wave
main controller. In the communication with the Z-wave main controller, the door sensor can send messages to
the Z-wave main controller, but it cannot receive messages from the Z-wave main controller. When the sensor
is triggered it sends messages to the Z-wave main controller, the Z-wave main controller will displays the
current status of door sensor, so the door sensor can associate with other devices.
The Door sensor is battery powered and is small enough to be installed on a window or door with ease.

Technical parameters


Power: CR14250 x1

Standby current: 1uA

Battery life: 10 years at Factory default settings.

Radio Protocol: Z-wave

Compatible with 300 series and 500 series
Wireless distance：50m
Operation temperature: 0-40℃
Storage temperature: 0-60℃
Size: Contact sensor main body (L x W x H): 70mmx20mmx20mm
Cat's Eye Door Sensor ZWBCCEDS-AUS
technology. Z Wave
TM
500 series chip. When your Z-Wave
TM
Plus product that supports Security and
TM
is a wireless communication proticol
TM
network with other Z-Wave
TM
network is made up of all Z-Wave
TM
certified devices
TM
TM
