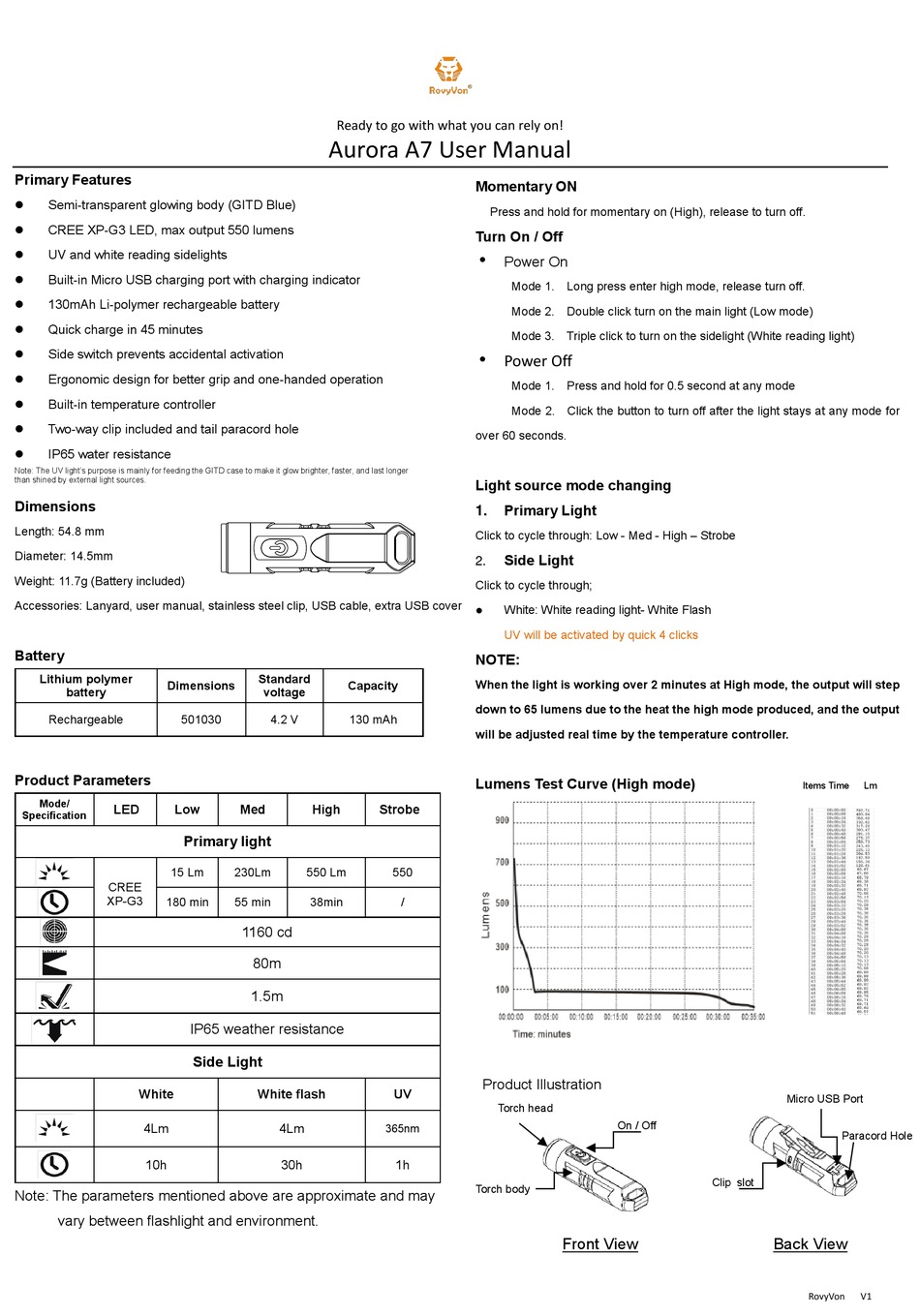

RovyVan Aurora A7 User Manual

Primary Features
⚫ Semi-transparent glowing body (GITD Blue)
⚫ CREE XP-G3 LED, max output 550 lumens
⚫ UV and white reading sidelights
⚫ Built-in Micro USB charging port with charging indicator
⚫ 130mAh Li-polymer rechargeable battery
⚫ Quick charge in 45 minutes
⚫ Side switch prevents accidental activation
⚫ Ergonomic design for better grip and one-handed operation
⚫ Built-in temperature controller
Two-way clip included and tail paracord hole
⚫
⚫ IP65 water resistance
Note: The UV light's purpose is mainly for feeding the GITD case to make it glow brighter, faster, and last longer
than shined by external light sources.
Dimensions
Length: 54.8 mm
Diameter: 14.5mm
Weight: 11.7g (Battery included)
Accessories: Lanyard, user manual, stainless steel clip, USB cable, extra USB cover
Battery
Lithium polymer
Dimensions
battery
Rechargeable 501030
Product Parameters
Mode/
LED Low
Specification
Primary light
15 Lm
CREE
XP-G3
180 min
White
4Lm
10h
Note: The parameters mentioned above are approximate and may
vary between flashlight and environment.
Ready to go with what you can rely on!
Aurora A7 User Manual
Standard
Capacity
voltage
4.2 V 130 mAh
Med High
230Lm 550 Lm
55 min 38min
1160 cd
80m
1.5m
IP65 weather resistance
Side Light
White flash
4Lm
30h
Momentary ON
Press and hold for momentary on (High), release to turn off.
Turn On / Off
 Power On
Mode 1. Long press enter high mode, release turn off.
Mode 2. Double click turn on the main light (Low mode)
Mode 3. Triple click to turn on the sidelight (White reading light)

Power Off
Mode 1. Press and hold for 0.5 second at any mode
Mode 2. Click the button to turn off after the light stays at any mode for
over 60 seconds.
Light source mode changing
Primary Light
1.
Click to cycle through: Low - Med - High – Strobe
Side Light
2.
Click to cycle through;
White: White reading light- White Flash
⚫
UV will be activated by quick 4 clicks
NOTE:
When the light is working over 2 minutes at High mode, the output will step
down to 65 lumens due to the heat the high mode produced, and the output
will be adjusted real time by the temperature controller.
Lumens Test Curve (High mode)
Strobe
550
/

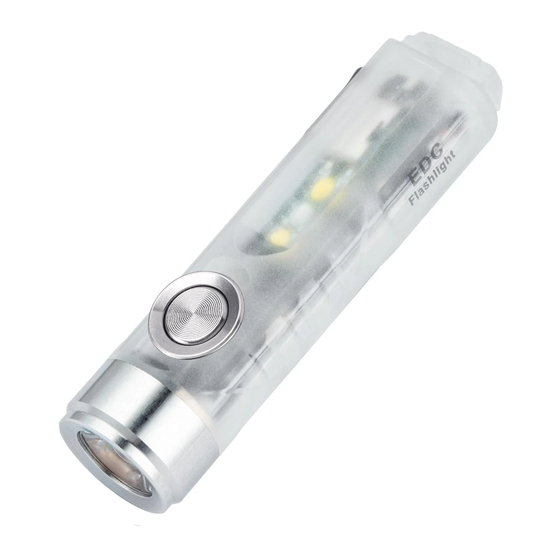

Product Illustration
UV
Torch head
365nm
1h
Torch body
On / Off
Clip slot
Front View
Items Time Lm
Micro USB Port
Paracord Hole
Back View
RovyVon V1
