Summary of Contents for Aerial Media Pros Inspire 1 v2.0 FPV

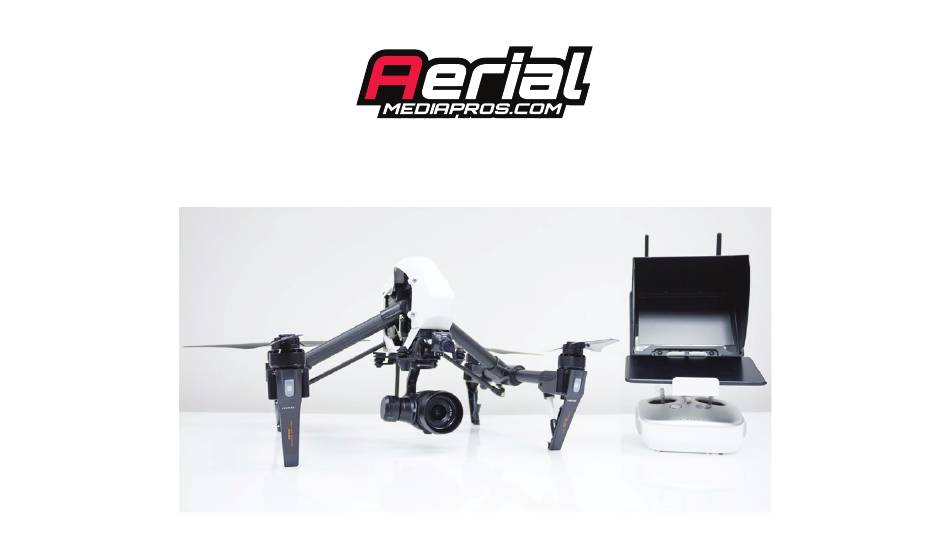

- Page 1 DIY AERIAL MEDIA PROS INSPIRE 1 v2.0 FPV INSTALLATION GUIDE...
-
Page 2: Materials List
INTRODUCTION The great thing about our Inspire 1 v2.0 FPV kit is that it’s very easy to install. Everything is plug-n-play. No soldering is required with this kit. Installing this kit will not void your warranty with the drone. Our Inspire 1 FPV Kit uses a high quality Sony CCD camera. - Page 3 TABLE OF CONTENTS Introduction....................1 Tools Needed....................1 Materials List....................1 Installation Guide.................2-9 Black Pearl FPV Monitor Setup..........10 Transmitter on drone settings..........11 Recommended Foxeer Camera Settings.....12...
- Page 4 Once the Nose Cone has been removed, insert the red and black Power Plug of the FPV Using a 2.5mm Hex bit remove the (qty 4) Nose Cone Bolts. Wiring Harness into the open port of the Inspire 1. Using a Phillips Screw driver remove the Run the Power Leads under the Cables to the right to keep them tight, safe and away from the Compass.
- Page 5 Be sure to run the FPV Wiring Harness clear of any moving parts such as the Landing Gear, Arms, Motors, and Propellers. Use tape or cable ties as needed to secure the cable clear of any moving parts.
- Page 6 Attach the FPV Transmitter to the bottom or rear of the Inspire 1 using Dual Lock or Velcro. Be sure that you have the antenna firmly attached each time before powering ON the Inspire 1. Failure to do so will result in damage to the FPV Transmitter.
- Page 7 Setscrew on the inside of the stock DJI Mobile Device Holder. Once the Setscrew is removed, the Mounting Pin can be removed from the stock DJI Mobile Device Holder and then installed onto the new Dual FPV Monitor/Mobile Device Holder. Aerial Media Pros...
- Page 8 Install the new Dual FPV Monitor/Mobile Device Holder onto your Inspire 1 Remote Controller Aerial Media Pros...
- Page 9 Remove the Mobile Device Clamp from the stock DJI Mobile Device Holder using a flathead screwdriver. Mount the Mobile Device Clamp to the new Aerial Media Pros Dual FPV Monitor/Mobile Device Holder upside down as shown in the picture above.
- Page 10 Black Pearl FPV Monitor setup Controls for the FPV monitor: Power On and Off: Press and hold power button (approximately 3 seconds) Menu: Press power button. Select: M Back / Return: Power Change in Menu: up/down Change Channel: -/+ FPV Monitor Band and Channel Change: 1.
- Page 11 Make sure the antenna is attached at all times when powering up transmitter. The transmitter will burn out if no antenna is attached when powered on. For easy setup we recommend Band/Group A Channel 1. All tiny flip switches will be in the UP position.
- Page 12 Recommended Foxeer FPV Camera Settings The camera settings for the Foxeer out of the box aren't the best. Here are recommended settings that are popular with FPV enthusiasts. 1. Exposure = set to 47 2. DWDR (Digital Wide Dynamic Range) = ON 3.
