Summary of Contents for Range Rover Sport 2019

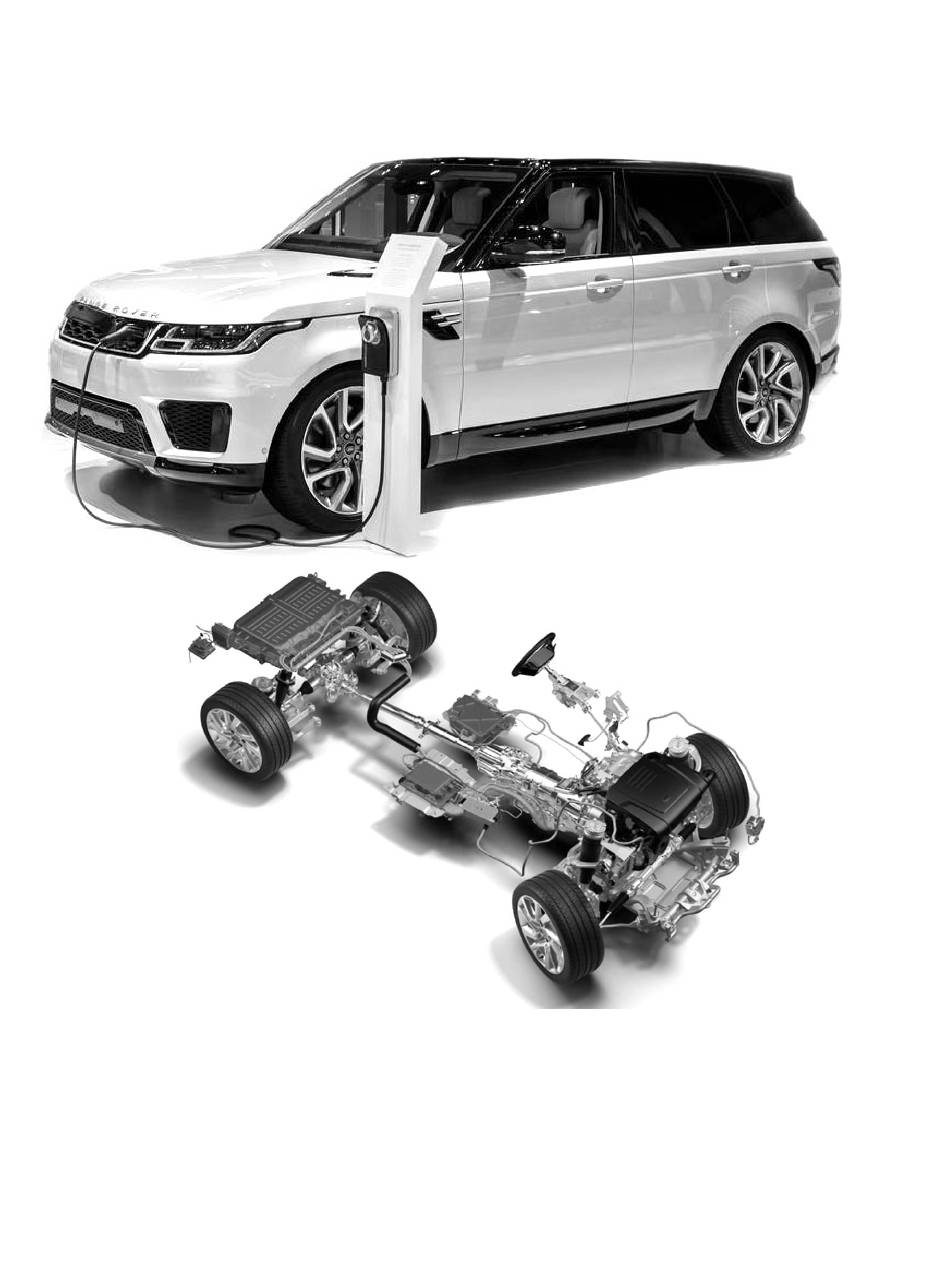

- Page 1 2019 Range Rover Sport PHEV Towing and Road Service Guide Quality and Education Services AAA Automotive December 26, 2018 For the latest updates from AAA, visit: AAAcampus.aaa.biz...
- Page 2 Index Specifications Start/Stop Switch Electronic Key/Mechanical Key Door Locks Rear Hatch Release Hood Release Fuel Door Release Electronic Parking Brake Car Carrier Loading Towing Eyebolt Locations Tires and Jacking Jump-Starting Procedures Charging Procedures Important Notice: This publication should not be used while driving. The procedures in this publication should only be used by qualified and trained personnel.
-
Page 3: Specifications
AAA Towing and Road Service Guide for 2019 Range Rover Sport PHEV SPECIFICATIONS: Dimensions: Length: 192.2 inches Width: 87.4 inches Specifications Curb Weight (pounds) 5,430 Drive Line Type All-Wheel Drive (AWD) Length 192.2 inches Width 87.4 inches Wheelbase 115.1 inches Height 71.6 inches... - Page 4 START/STOP (IGNITION) BUTTON OPERATION: NOTE: The electronic key must be in the vehicle. • Ignition On / Engine Off: With your foot off the brake pedal, press and hold the Start/Stop switch until the warning lights on the instrument panel illuminate. • To start the engine: Press the Start/Stop switch while depressing the brake pedal.
-
Page 5: Door Locks
DOOR LOCKS: Using the Remote: 1. Press buttons to lock and unlock the door. 2. Press the button on the inner handle to lock and unlock the door. NOTE: The electronic key needs to be with the person attempting to lock or unlock the door so the key can be recognized. -
Page 6: Fuel Door Release
FUEL DOOR RELEASE: This vehicle is equipped with a push-lock fuel door. To open the fuel door, push the left side of the door to release the lock and pull the door open. After fueling, close the door and push it in to lock the door. NOTE: Prior to opening the fuel door: The manufacturer has included a fuel button on the left-lower dash that locks the fuel door and allows the vehicle to vent prior to being... -
Page 7: Car Carrier Loading And Transporting
CAR CARRIER LOADING AND TRANSPORTING: Special Precautions: • Car carrier equipment is the preferred method of towing this vehicle. • When loading or winching, DO NOT USE HOOKS OF ANY TYPE ON THE LOWER CONTROL ARMS OR ANY OTHER STEERING OR SUSPENSION COMPONENT. Carefully follow the loading procedures specified on the following pages. - Page 8 CAR CARRIER LOADING PROCEDURE: Car Carrier Loading Procedures: • Before loading, secure the vehicle, ensure the transmission is in Neutral and the parking brake is released. Front Attachment Location: (image 1) This vehicle is equipped with a towing eye that should be used for loading and unloading.
- Page 9 TIRES AND JACKING: This vehicle may come equipped with a tire infla- tor kit from the factory. These items can be found in the tool kit located inside the rear hatch. Inflator Kit: 1. Luggage compartment's floor panel. 2. Compressor 3. Sealant bottle 4. Locking wheel nut adaptor NOTE: Prior to using the inflator kit, make sure to get permission from the owner. Spare Tire and Tool Locations: This vehicle may be equipped with a spare tire and tools located under the floor panel of the rear...
-
Page 10: Jump-Starting Procedures
JUMP-STARTING PROCEDURES: The battery in this vehicle is an Absorbed Glass Matt (AGM ) located under the inflator kit in the luggage compartment. Follow the jump-starting procedures listed below: • Follow all normal jump-starting precautions as out- lined in the AAA/CAA Towing & Service Manual and the owner’s manual. •... -
Page 11: Charging Procedures
CHARGING PROCEDURES: The vehicle is equipped with a Plug-in Hybrid system that allows the electric batteries to be recharged. The following lists the specifics of this system: • Follow all precautions as outlined in the AAA/CAA Towing & Service Manual and the owner’s manual when working with any High-Voltage equipped vehicles.
