LASTIC

Temperature Controller

LASTIC

6385 Montessouri Street, Las Vegas, Nevada 89113

PPE

702-433-6385 • 800-258-8877 • Fax: 702-433-6388

WEST

8303 CORPORATE PARK DRIVE, MACEDONIA (Cleveland), OHIO 44056, U.S.A.

216-367-7000 • Toll Free: 800-321-0562 • Fax: 216-367-7022 • Order Fax: 800-223-8305

ROCESS

BTC15

Operation Manual

ROCESS

QUIPMENT,

QUIPMENT, INC.

11218 Challenger Avenue, Odessa, Florida 33556

PPE

727-834-8888 • 800-282-6783 • Fax: 727-834-8873

SOUTH

NC.

www.ppe.com • e-mail: sales@ppe.com

Toll Free: USA, Canada & Mexico

800-362-0706

Table of Contents

Need help?

Do you have a question about the BTC15 and is the answer not in the manual?

Questions and answers

Summary of Contents for PPE BTC15

Page 1 BTC15 Temperature Controller Operation Manual LASTIC ROCESS QUIPMENT, INC. www.ppe.com • e-mail: sales@ppe.com 11218 Challenger Avenue, Odessa, Florida 33556 6385 Montessouri Street, Las Vegas, Nevada 89113 727-834-8888 • 800-282-6783 • Fax: 727-834-8873 702-433-6385 • 800-258-8877 • Fax: 702-433-6388 WEST SOUTH Toll Free: USA, Canada &...
Page 2 There are no warranties, expressed or implied, for temperature controllers except as stated herein. In no event shall PPE be liable for consequential, incidental, or special damages beyond our control. The buyer’s sole remedy for any breach of this agreement shall not exceed...

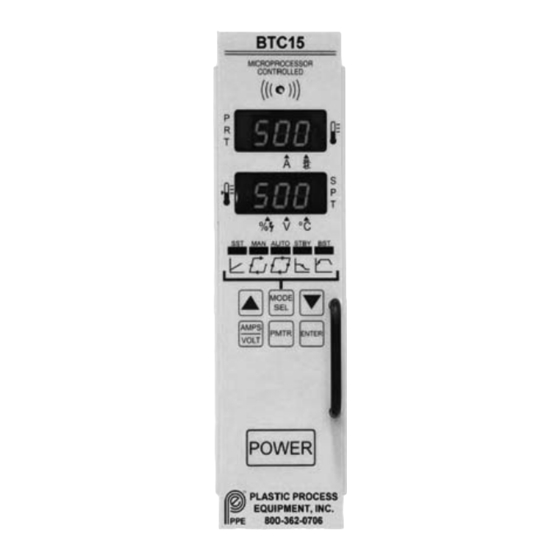

Page 3 Controller Layout Process Value Display Set-Point Value Display When decimal is lit, When decimal is lit, manual percentage power is engaged amperage is displayed When decimal is lit, volt- When decimal is lit, age is displayed ± 3% output power is on When decimal is lit, temp.
Page 4 Basic Operation Procedures The BTC15 temperature controller is ready to run from factory settings. Basic Operation: Turn power on by pressing the *POWER* button. SOFT START mode: The controller will start in SOFT START mode if the process value is below 212°...
Page 5 Standby and Boost: The controller has two conﬁ gurations for standby and boost modes: auto or manual. Standby: AUTO-STANDBY - controller goes to the preset standby set-point temperature set in parameter (P15) MANUAL-STANDBY - controller goes to the preset % power set in parameter (P14).
Page 6 Parameters Parameters Defaults Auto Power On - (YES or NO) Control Type - Power Control Type Phase or Burst mode (PH or BT) Over Current Limit - (1 - 21) Amps Celsius or Fahrenheit (°C or °F) Thermocouple Type - (J or K) Over-temp.
Page 7 Parameter Description P04) Select degrees Celsius (°C) or Fahrenheit (°F). P05) T/C Type - Select thermocouple types J or K. P06) Over-temp. Alarm Limit - Alarm when process temp. is over setpoint value as set in parameter. P07) Under-temp. Alarm Limit - Alarm when process temp. is under setpoint value as set in parameter.
Page 8 J7 is set to pins 2 & 3 by factory default. If the controller is placed in a non-PPE mainframe, place jumper on pins 1 & 2. If jumper is placed incorrectly, a TOH...
