Lince GOLD 869 MST Series Installation, Operation And Maintenance Manual

Table of Contents

Advertisement

Quick Links

GOLD 869 MST
CONTROL PANEL
ART. / ITEM:
SERIES
9583-GOLD-MST-EN
9582-GOLD-MST-E-EN
The CE declaration of this item is available

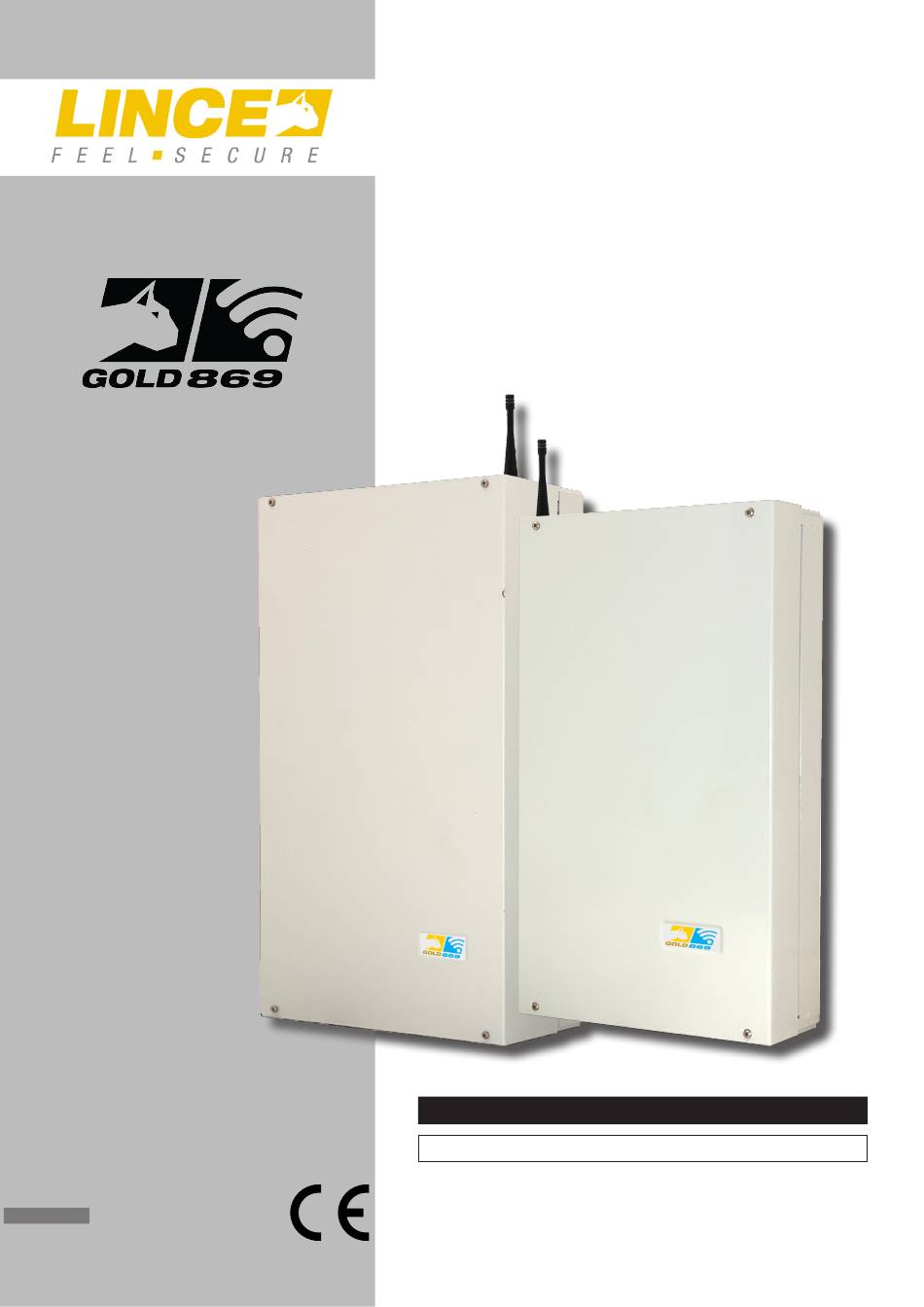

GOLD 869 SERIES CONTROL PANEL
on www.lince.net website.
Installation, operation and maintenance manual
MADE IN ITALY

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GOLD 869 MST Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Lince GOLD 869 MST Series

  • Page 1 GOLD 869 MST CONTROL PANEL ART. / ITEM: SERIES 9583-GOLD-MST-EN 9582-GOLD-MST-E-EN The CE declaration of this item is available GOLD 869 SERIES CONTROL PANEL on www.lince.net website. Installation, operation and maintenance manual MADE IN ITALY...
  • Page 2: Table Of Contents

    LINCE ITALIA S.p.A. INDICE OVERVIEW ..................................................4 PACKAGE CONTENTS ............................................4 GOLD 869 SYSTEM .................................................4 SYSTEM ARCHITECTURE AND COMPONENTS .....................................4 2.1.1 Programming devices ..........................................4 2.1.2 Wireless devices of the GOLD 869 series ....................................4 2.1.3 Devices on BUS ............................................6 2.1.4 GSM Dialer ..............................................6 SPECIFICATIONS ..............................................7...
  • Page 3 13 SYSTEM CONFIGURATION ............................................43 The information in this manual has been issued with care, but LINCE ITALIA S.p.A. will not be responsible for any errors or omissions. LINCE ITALIA S.p.A. reserves the right to improve or modify the products described in this manual at any time and without advance notice.Terms and conditions regarding assistance and the product warranty can be found at LINCE ITALIA’s website www.lince.net.
  • Page 4: Overview

    SYSTEM ARCHITECTURE AND COMPONENTS The system offers the option to store bidirectional wireless devices on LINCE proprietary BUS and the option of installing a GSM dialer card directly on the board of the control panel, inside its own case.
  • Page 5 LINCE ITALIA S.p.A. 9507-GOLD-TP Indoor wireless magnetic contact for signals when doors and windows are opened. Designed to provide maximum performance in terms of detection, immunity to false alarms and wireless transmission distance. Additional input for another magnetic contact or rope detector for window blinds or inertial contact with impulse discrimination that can be selected from the control panel.
  • Page 6: Devices On Bus

    The contactless keyreader allows the programs to be enabled and disabled without having to press selection buttons. Compatible with 4008TKC as well as the new LINCE customised RFID tags (4133RFIDCARD and 4135ROUND-KEYFOB). The keyreader is available in four versions: art. 4132CONTACTLESS/M (black) and 4137CONTACTLESS-B/M (white) which allow for arming/disarming according to the programming of the keys (“master keyreader”...
  • Page 7: Specifications

    9582-GOLD-MST-E-EN Power supply 230 Vac Battery compartment max 12 V 18 Ah (Lince item 476LI18-12 not supplied) max 12 V 7,2 Ah (Lince item 1112LI7,2-12 not supplied) Power supply 13,8 Vcc 3 A (Lince item 1699LMQ35) 13,8 Vcc; 2 A (Lince item 001505/00052AB-AC) Transmission frequencies 869.40 MHz-869.65 MHz 1 channel, 868.00 MHz-868.60 MHz 4 channels...
  • Page 8: 9583-Gold-Mst-En Power Supply

    LINCE ITALIA S.p.A. 2.3.2 9583-GOLD-MST-EN POWER SUPPLY The power supply is switching type and supplies power to both the motherboard and the entire system. To access it, it is necessary to disconnect the control panel from the mains supply paying the utmost attention to the danger of electric shock and unscrew the screw that secures the power supply to the bottom of the control unit to remove the power supply from its seat.
  • Page 9: 9582-Gold-Mst-E-En Power Supply

    LINCE ITALIA S.p.A. 2.3.4 9582-GOLD-MST-E-EN power supply The power supply is switching type and supplies power to both the motherboard and the entire system. To access it, it is necessary to disconnect the control panel from the mains supply paying the utmost attention to the danger of electric shock and unscrew the lateral screws that fix the cover and remove the feeder itself from its seat.
  • Page 10: Description Of The Terminal Blocks (Inputs And Outputs)

    LINCE ITALIA S.p.A. 2.3.6 Description of the terminal blocks (inputs and outputs) Below is a detailed description of the terminal blocks on the exposed side of the control panel. Tkeep in mind that the numbering of the terminals goes from top to bottom and from left to right (refer to the previous drawing).
  • Page 11: Anti-Tear And Anti-Opening Microswitch

    Battery The control unit can house a 12 V lead battery from 7.2 Ah to 18 Ah (not supplied, Lince codes: 1112LI7,2-12 for the 7.2 Ah and 476LI18-12 for the 18 Ah), which is used for supply power to the system independently of the mains supply. The battery must be chosen based on the size of the system and on the basis of the autonomy time you wish to have: for a correct sizing of the system refer to the relative section.
  • Page 12: Installation

    Then follow the information on the computer screen to complete the update. Otherwise, if you do not have an internet connection, you can check for new software in the section on the LINCE website www.LINCE. net. Download the relevant file and select “System” -> “Updating FW control panel” (fig. 10), then select the * .bin file downloaded (Fig.
  • Page 13: First Connection

    LINCE ITALIA S.p.A. FIRST CONNECTION Select the “Choose communication channel”, click on the menu bar under “System” -> “New” to set the proper serial port. On the first screen there is an example of a port choice with Macintosh system, while in the second case with a Windows system.
  • Page 14: Configuration And Programming

    LINCE ITALIA S.p.A. 4. CONFIGURATION AND PROGRAMMING SYSTEM Click on the icon for “System” -> “New” to download the configuration of the connected control panel. Then enter the information related to the system registry and click on “Save” giving a different name to the one proposed by default.
  • Page 15: Control Panel Status

    LINCE ITALIA S.p.A. CONTROL PANEL STATUS The “Control panel status” section allows you to view the current situation of the control panel, the firmware currently installed and any faults and alarm memories. The “system voltage” indicates the voltage with which the system is powered, while the “System current”...
  • Page 16: Input Type Setting

    LINCE ITALIA S.p.A. Clicking on the “input selection” item, the list of inputs currently connected to the control panel is displayed, if one or more (maximum 5) expansions are available, 4005EUROPLUS / IN will also show all the other available inputs.
  • Page 17: Bus Devices

    LINCE ITALIA S.p.A. BUS DEVICES 4.5.1 Devices storage on BUS The “Add New Bus Device” key allows to acquire the wired devices that communicate on BUS, such as input readers and expansions. When the message below appears, open the sabotage of the device you wish to store. Then enter the name in the next screen and click on “Apply”...
  • Page 18: Bus Devices Total Cancellation

    LINCE ITALIA S.p.A. 4.5.3 BUS devices total cancellation To delete all the devices on the BUS, press the “Erase BUS devices” button from the “Commands” section, then press “YES” to confirm the operation. This operation can only be performed by a user with “installer” privileges.
  • Page 19: Add New Wireless Device

    LINCE ITALIA S.p.A. ADD NEW WIRELESS DEVICE The “Add New Wireless Device” button allows you to acquire the radio devices. To proceed, press the anti-tamper button when prompted as indicated on the respective device manuals. Fig. 26 The subsequent screens show the settable parameters of the radio devices. The different screens are offered according to the device to be stored.
  • Page 20: Storage Of Window Sensor

    LINCE ITALIA S.p.A. Table 7 - Magnetic contact options Option Descritpion Excluded The input is excluded or excluded Silent If the input is violated, the alarm output is not activated but remains in memory. Test The control panel emits a sound whenever the entry is violated...
  • Page 21: Storing Wireless Sirens

    LINCE ITALIA S.p.A. Table 8 - Window sensor options Options Descriptions Excluded The input is excluded or excluded Silent If the input is violated, the alarm output is not activated but remains in memory. Test The control panel emits a sound whenever the entry is violated...
  • Page 22: Double Technology Motion Detector Storage

    LINCE ITALIA S.p.A. 4.7.4 Double technology motion detector storage The dual technology detector screen (volumetric, curtain, ceiling, etc.) allows you to set the sensitivity of the microwave, the PIR, the anti-masking and the operating logic. It also allows the association of the latter to one of the three programs or to all three, to set the operating parameters, times and various attributes, the details of which are shown in the next table.
  • Page 23: Baby Detector Storage

    LINCE ITALIA S.p.A. 4.7.5 BABY detector storage The BABY curtain detector screen allows you to set the sensitivity of the microwave, PIR, anti-masking, the presence or absence of CWS and the operating logic.It also allows the association of the latter to one of the three programs or to all three, to set the operating parameters, times and various attributes, the details of which are shown in the following table.
  • Page 24: Outdoor Bobby Detector Storage

    LINCE ITALIA S.p.A. 4.7.6 Outdoor BOBBY detector storage The detector screen with triple technology (volumetric or curtain, etc.) from outside allows you to set the sensitivity of the microwave, the two PIRs, the anti-masking and the operating logic. It also allows the association of the latter to one of the three programs or to all three, the operating parameters, the times and the various attributes, the details of which are shown in the following Table.
  • Page 25: Radio Control Storage

    LINCE ITALIA S.p.A. 4.7.7 Radio control storage The “radio control” section allows the association of the latter to one of the three programs or to all three and the various attributes, the details of which are shown in the following table.
  • Page 26: Radio Output Storage

    LINCE ITALIA S.p.A. 4.7.8 Radio output storage The “radio output” section allows you to configure the duration of the switching, whether it must be associated with a particular input or to all, the idle state of the output and the other parameters illustrated in the next table.
  • Page 27: Fogging Storage

    LINCE ITALIA S.p.A. 4.7.9 Fogging storage La schermata “nebbiogeno” radio permette di configurare il tempo di sparo e gli altri parametri illustrati nella Table successiva. Fig. 35 Table 15 - Fogging options Options Descriptions Monitoring Enable the device to send monitoring signals...
  • Page 28: Selective Erasure Of Radio Devices

    LINCE ITALIA S.p.A. The shot time must be set according to the volume of the area to be protected; The system can emit fog for a maximum duration of 20 seconds per shot. The maximum quantity of 13 ml/s therefore allows coverage of about 600 and 300 m .
  • Page 29: Total Erasure Of Radio Devices

    LINCE ITALIA S.p.A. TOTAL ERASURE OF RADIO DEVICES To delete all the radio devices stored in the control panel, go to the “Commands” section, and click on the “Erase Wireless Devices” button and click on “Yes” to confirm the operation.
  • Page 30: System Settings

    LINCE ITALIA S.p.A. 5. SYSTEM SETTINGS OPTIONS The “Options” menu allows the configuration of various functions of the control unit shown below. A user with “Administrator” privileges can only exclude the inputs and view their status. Fig. 39 • Tone arming/disarming: option to enable/disable the confirmation tones (of the control panel buzzer) of the arming/disarming steps (2 beeps ON, 3 beeps OFF).
  • Page 31: Superkeys

    LINCE ITALIA S.p.A. SUPERKEYS If the superkeys are enabled, they allow you to reach certain functions faster. Numeric keys 1, 2, 3 and 4 can be enabled to perform this function. To use these functions it is necessary that at least one TOUCH series keyboard is present on the system.
  • Page 32: Auto-Activation

    LINCE ITALIA S.p.A. AUTO-ACTIVATION In the “Auto-activation” section it is possible to set at which time you want the three programs, with the different combinations that derive from it, to switch on automatically. Each auto-activation must be enabled by checking the relevant entry to be effective. Press “Apply”...
  • Page 33: Codes Storage

    LINCE ITALIA S.p.A. The next screen that is proposed, allows to immediately set the parameters related to the key for which the memorization has been requested. Press the “Apply” button to confirm the options chosen. Once a key is stored, the software automatically returns to the first screen so that others can be acquired. When finished, press “Cancel”...
  • Page 34: Change Parameters Keys And Codes And Delete (Administrator)

    LINCE ITALIA S.p.A. The next screen that is proposed, allows to immediately set the parameters related to the code for which the memorization has been requested. Select the type of code from the drop-down menu, set the name you want to assign and the programs that the code can switch.
  • Page 35: Gsm Dialer Configuration (If Present)

    LINCE ITALIA S.p.A. 6. GSM DIALER CONFIGURATION ( IF PRESENT ) GSM OPTIONS Through the “GSM options” section it is possible to enable / disable the options related to the operation of the dialer inside the control panel (if present). In this screen, it is also possible to modify TTS messages related to customizable events.
  • Page 36: System Status

    LINCE ITALIA S.p.A. 7. STATO IMPIANTO STATO INGRESSI FILARI La sezione “Stato Ingressi Filari”, permette di visualizzare la situazione attuale degli ingressi filari e le eventuali memorie di allarme.. Fig. 50 WIRELESS INPUTS STATUS The “Wireless inputs status” section allows you to view the current status of the radio inputs, any alarm memories, exclusion, faults, etc.
  • Page 37: Gsm Status

    LINCE ITALIA S.p.A. GSM STATUS The “GSM status” section allows you to view information on the GSM card in use. Fig. 53 EVENTS LOG The “Events Log” section allows you to view events such as access, arming/disarming, alarms, etc. which can be filtered from the drop-down menu.
  • Page 38: Wireless Device Test

    LINCE ITALIA S.p.A. WIRELESS DEVICE TEST The “Wireless Devices Test” section allows you to receive information on the status of motion detectors and magnetic contacts. Press the “Wireless Devices Test” button and open an area of the device for which you wish to receive information. The latter are reported, as in the example below, on a screen that can be exported to a text file using the appropriate “Export”...
  • Page 39: System Initialization

    LINCE ITALIA S.p.A. SYSTEM INITIALIZATION Press the “Initialize system” button to return the control panel to the factory settings. On the next screen, enter the GoldSOFT password to make the changes effective. Fig. 57 SERVICE STATUS Press the “Activate service” button to activate the service status of the control panel. Press the button again to deactivate it.
  • Page 40: Alarm Memory Erasure

    LINCE ITALIA S.p.A. ALARM MEMORY ERASURE The “Clear alarm memory” button allows you to delete the alarm memories present. Press “YES” to confirm the operation. Fig. 59 9. MENÙ BAR The menu bar allows access to various settings and additional functions useful for better management of the software and the system.
  • Page 41 LINCE ITALIA S.p.A. 9.1.2 Info menù In the “Info” menu, the software revision and the direct link to the LINCE site are displayed. SYSTEM MENÙ Fig. 62 The “system” menu allows access to functions related to the reception of configurations from the control panel, to the list of systems and to the update of the control panel.
  • Page 42 LINCE ITALIA S.p.A. Fig. 63 At the end of sending the configuration, the system displays which changes have been detected between the configuration present in the control panel and the one being loaded. Fig. 64 10 COMPATIBLE OPERATING SYSTEMS The operating systems compatible with the GoldSOFT are: •...
  • Page 43 LINCE ITALIA S.p.A. 12. DISPOSAL AND SCRAPPING 1. Unscrew the screws that secure the front lid and remove it. 2. Disconnect the board: disconnect all terminal blocks on the terminal board (see Fig. 3). 3. Divide the parts according to their type and dispose of them according to the laws in force.
  • Page 44 Name Name number number number number INSTALLER INFO name and surname telephone number mobile email NOTES LINCE ITALIA S.p.A. Via Variante di Cancelliera, snc 00072 ARICCIA (Roma) Tel. +39 06 9301801 Fax +39 06 930180232 info@lince.net 001530/00954EC Rev 0 www.lince.net...
