DL-HD2A-RX Quick Install Guide

This guide is for quick installation only.

For complete owners manual go to www.libav.com or use a QR reader to access the

manual via QR code below.

Scan QR Code with your Smart-phone or Tablet

Rev 191028

11675 Ridgeline Drive

Phone: 719-260-0061

Colorado Springs, CO

Toll-Free: 800-530-8998

80921

Fax: 719-260-0075

Table of Contents

Need help?

Do you have a question about the LIBERTY AV SOLUTIONS DIGITALINX DL-HD2A-RX and is the answer not in the manual?

Questions and answers

Summary of Contents for Wesco LIBERTY AV SOLUTIONS DIGITALINX DL-HD2A-RX

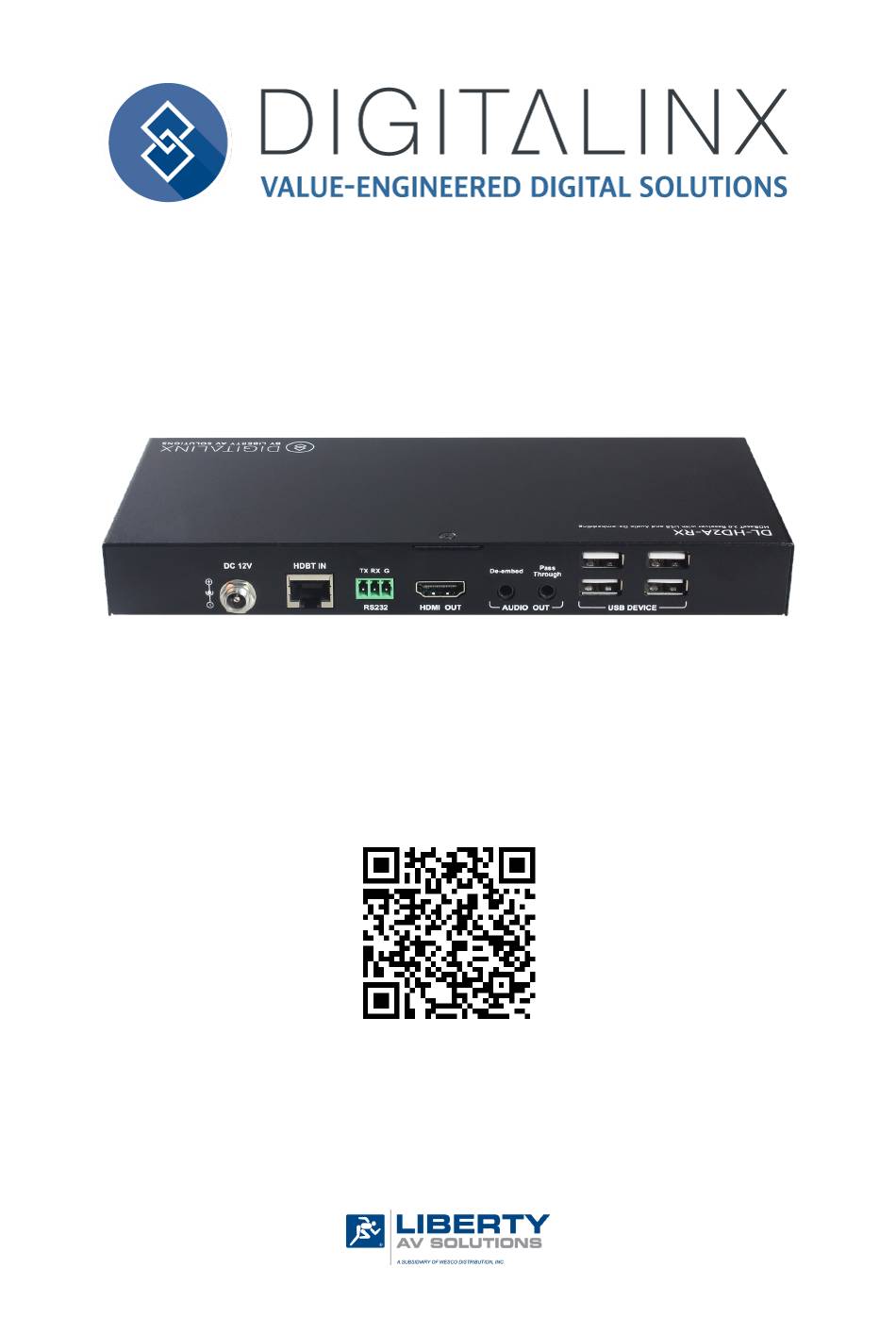

Page 1 DL-HD2A-RX Quick Install Guide This guide is for quick installation only. For complete owners manual go to www.libav.com or use a QR reader to access the manual via QR code below. Scan QR Code with your Smart-phone or Tablet Rev 191028 11675 Ridgeline Drive Phone: 719-260-0061 Colorado Springs, CO...
Page 2 DL-HD2A-RX Quick Guide Product Overview The DigitaLinx DL-HD2A-RX is an HDBaseT 2.0 receiver designed to work with the DL-1H1V1U-WP-W, DL-3H1U-WP-W and the DL-2H1V1U-WP-W wall plate transmitter (sold separately). The DL-HD2A-RX will reliably extend HDMI or VGA video, multichannel audio, USB 2.0 High Speed and RS232 up to 100m / 330’.
Page 3 DL-HD2A-RX Quick Guide Front / Back Panel View 9 10 1. DC12V Power Input 2. HDBaseT Input 3. RS232 Pass Through 4. HDMI Output 5. Audio Out • De-embed - De-embeds the embedded HDMI 2 channel stereo audio stream from selected HDMI input from the connected HDBaseT 2.0 transmitter •...
Page 4 DL-HD2A-RX Quick Guide Connectivity Instructions 1. Verify all components included with the extender set are present before installation. 2. Turn off power and disconnect the audio/video equipment by following the manufacturer’s instructions. 3. Connect Category 6 or greater twisted pair cable with RJ45 connectors between the transmitter (DL-1H1V1U-WP-W, DL-3H1U-WP-W or the DL-2H1V1U-WP-W sold separately) and the DL-HD2A-RX receivers HDBaseT ports.
Page 5 DL-HD2A-RX Quick Guide Cabling Wiring Requirements HDBaseT Cabling To ensure proper performance of the DL-HD2A-RX, it is recommended that you use solid core, shielded Category 6 F/UTP cabling at a minimum. Category 5e F/UTP may perform well but may not support power over HDBaseT reliably over longer distances. When using shielded category cabling ALWAYS...
Page 6 DL-HD2A-RX Quick Guide Technical Specifications Video Video Inputs (1) HDBaseT Video Input Connector (1) RJ45 Output Video Signal HDMI VESA: 1920 x 1200@60; 1680 x 1050@60; 1600 x 1200@60; 1600 Input / Output Resolutions Supported x 900@60; 1440 x 990@60; 1366 x 768@60; 1360 x 768; 1280 x 1024@60;...
Page 7 Thank you for your purchase. For Technical Support please call our toll free number at 800-530-8998 or email us at supportlibav@libav.com www.libav.com Digitalinx is a brand of: 11675 Ridgeline Drive Colorado Springs, Colorado 80921 USA Phone: 719-260-0061 Fax: 719-260-0075 Toll-Free: 800-530-8998...
