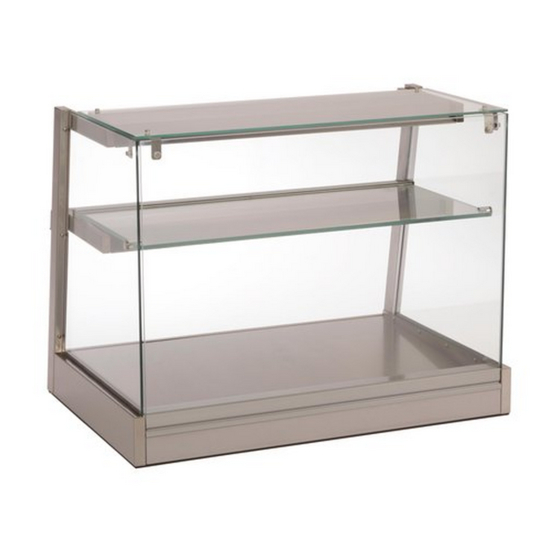

Antunes DCH-500 Owner's Manual

Heated display cabinet
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Heated Display
Cabinet
Models DCH-500, DCH-800, & DCH-1000
owner's manual
Manufacturing Numbers:
9500640, 9500650 & 9500720
www.antunes.com
P/N 1011306 Rev. D 12/17

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DCH-500 and is the answer not in the manual?

Questions and answers

Related Manuals for Antunes DCH-500

Summary of Contents for Antunes DCH-500

  • Page 1 Heated Display Cabinet Models DCH-500, DCH-800, & DCH-1000 owner’s manual Manufacturing Numbers: 9500640, 9500650 & 9500720 www.antunes.com P/N 1011306 Rev. D 12/17...

  • Page 2: Warranty Information

    IMPORTANT A.J. Antunes & Co. reserves the right to change specifications and product de- sign without notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions or replacements for previously purchased equipment.

  • Page 3: Important Safety Information

    IMPORTANT SAFETY WARNINGS The following tips are recommended for maintenance of your stainless steel INFORMATION Be advised of the following warnings when equipment: operating and performing maintenance on Always use soft, damp cloth for Use the following guidelines for safe opera- this unit.

  • Page 4: Specifications

    SPECIFICATIONS Dimensions Model & Mfg. No. Height Width Depth DCH-500 28” 23.75” 25” 9500720 (711 mm) (603.25 mm) (635 mm) DCH-800 28” 37.75” 25” 9500650 (711 mm) (958.8 mm) (635 mm) DCH-1000 28” 47.75” 25” 9500640 (711 mm) (1212.8 mm)

  • Page 5: Installation

    Open the large box. Remove all packing materials and protective coverings from the unit and parts. NOTE: If any parts are missing or dam- aged, contact A.J. Antunes & Co. IMMEDIATELY at 1-800-253-2991 (toll free in the U.S. and Canada) Power Cord or at 630-784-1000.

  • Page 6: Operations And Programming

    OPERATIONS AND Light Light Heat Rocker Switch Dimmer Knob Rocker Switch PROGRAMMING The DCH-800 andDCH-1000 is designed to temporarily slow the cooling of food. NOTE: This unit has an adjustable temperature range of 150-165° F (66-74° C). Figure 2. DCH-1000 Turning on Heat and Lights NOTE: The Setpoint temperature is the desired cabinet tempera-...
  • Page 7 Display Codes This section describes the different display codes and their meanings. “LO” flashes during the initial warm up period. The unit continues to display this code until the unit reaches the setpoint tempera- ture. When the unit reaches the setpoint temperature, it displays the setpoint temperature.

  • Page 8: Troubleshooting

    TROUBLESHOOTING WARNING To avoid possible personal injury and/or damage to the unit, inspection, test and repair of electrical equip- ment should be performed by qualified service personnel. The unit should be unplugged when servicing. Problem Possible Cause Corrective Action No heat, no display, and the power Power cord is not plugged in.
  • Page 9 REPLACEMENT PARTS DCH-500 (SHEET 1) Item Part No. Description Qty. 7001773 Top Glass 24 7001713 Front Glass Kit 0900320 Front Glass 5040282 Rail 48.68 LG 7001732 Glass Shelf Kit, 24” 7001380 Side Glass Kit, 0900319 2000253 Glass Shelf Mounting Hdwe...
  • Page 10 REPLACEMENT PARTS DCH-500 (SHEET 2) Item Part No. Description Qty. Item Part No. Description Qty. 7001717 Heat Plate Kit, 24” 0022270 Heat Sink Weldment 308P157* Scr,Tap #08-32 X 3/8 Phtrshd;”F”;410 S/S 1 7001148 Transformer, 120 VAC/12VAC 1001037 Label, Control Panel...
  • Page 11 REPLACEMENT PARTS DCH-800 (SHEET 1) Item Part No. Description Qty. 7001714 Top Glass Kit 36” 0900326 Front Glass Assy 5040284 36 Frame Hinge Middle Shelf - waiting on kit 7001380 Side Glass Kit, 0900319 7001435 Glass Shelf Support Kit 7001438 Corner Bracket 215P410 Spacer...
  • Page 12 REPLACEMENT PARTS DCH-800 (SHEET 2) Item Part No. Description Qty. Item Part No. Description Qty. 7001721 Heater Plate Kit 7000345 Control Board Kit 0022132 Heat Sink Bracket Weldment 0013161 Heater Assembly 7001148 Transformer, 120 VAC, 12 VAC 308P203* Scr,Tap #8-32 X 3/8 W Int. Tooth Washer 1 1001037 Label, Control Panel 7000370...
  • Page 13 REPLACEMENT PARTS DCH-1000 (SHEET 1) Item Part No. Description Qty. 7001715 Top Glass Kit, 48 7001869 Front Glass kit 0900320 Front Glass 5040282 Rail 48.68 LG 7001870 Glass Shelf Kit 7001380 Side Glass Kit, 0900319 7001435 Glass Shelf Support Kit 7001438 Corner Bracket 210P360...
  • Page 14 REPLACEMENT PARTS DCH-1000 (SHEET 2) Item Part No. Description Qty. Item Part No. Description Qty. 7001868 Heater Plate Kit 0022132 Heat Sink Weldment 308P157* Scr,Tap #08-32 X 3/8 Phtrshd;”F”;410 S/S 1 7001148 Transformer, 120VAC/12VAC 1001037 Label, Control Panel 7000370 Solid State Relay Kit 0400251 Strain Relief 1001593...
  • Page 15 NOTES P/N 1011306 Rev. D 12/17...
  • Page 16 P/N 1011306 Rev. D 12/17...

  • Page 17: Limited Warranty

    LIMITED WARRANTY Equipment manufactured by Roundup Food Equipment Division of A.J. Antunes & Co. has been constructed of the finest materials available and manufactured to high quality standards. These units are warranted to be free from electrical and mechanical defects for a period of one (1) year from date of purchase under normal use and service, and when installed in accordance with manufacturer’s recommendations.

This manual is also suitable for:

Dch-800Dch-1000
