Summary of Contents for STI SOLBOX

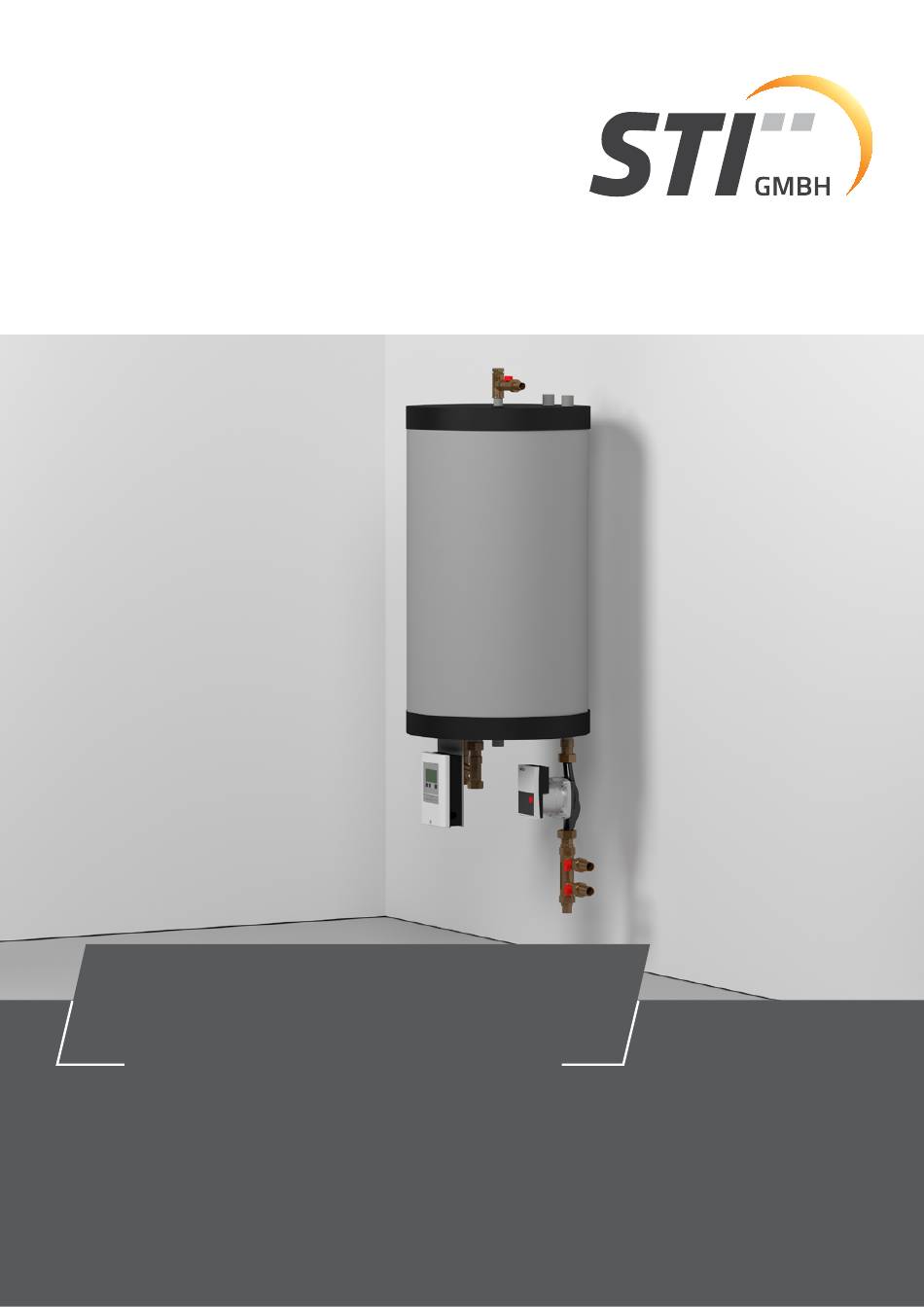

- Page 1 ASSEMBLY INSTRUCTION SOLBOX SOLARE KOMPETENZ AUS SACHSEN sti-solar.de sti-solar.de...
-
Page 2: Table Of Contents
Structure of the SolBox Installation scheme Assembly of the SolBox Hydraulic connection collector field Filling of the SolBox Initial operation of the SolBox Fast operation SolBox extension Connection of the SolBox with the extension module Capacities Initial operation Scheme of the installation Notes... -
Page 3: Technical Data
Technical data 400 mm SolBox Specifications Collector field size up to 25 m² Control unit High-efficiency pump for discharge heads up to 11 m, optionally expandable up to bis 22 m, according to the standard EU Norm 2015 Solar station... -
Page 4: Structure Of The Solbox
Structure of the SolBox Connections on top Collector connection hot Collector connection cold AG 3/4“ AG 3/4“ Venting unit // AG 3/4“ Illustration 1 Controller Control unit (4) Controller pump Power cable pump temperature sensor input Power cable/plug controller Illustration 2... - Page 5 Structure of the SolBox Connections at the bottom AG 3/4“ High-efficiency pump Heat exchanger connection hot (6) Illustration 3 Connection filling unit Ball valve filling unit 1/2“ connection pipe // AG 3/4“ AG 3/4“ Connection filling unit Heat exchanger connection...
- Page 6 Technical data Connections at the bottom Safety valve 6 bar (12) IG 3/4“ Manometer (11) Closure cap (13) Illustration 5...
-
Page 7: Installation Scheme
When assembling the SolBox, please note the distance which results from measure A: - bottom edge of the collector // upper edge of the SolBox - minimum distance of 100 mm - center pump SolBox // connection of the uppermost solar heat exchanger -... -
Page 8: Assembly Of The Solbox
Plug in the power plug of the solar collectors with the designated connections controller - see illustration 2. (1) and (2) at the SolBox - see illustration 1. Please pay attention that the pipelines have to be installed with downgrade from the... -
Page 9: Hydraulic Connection Collector Field
Illustration 7 For the combination with the SolBox, only self-draining collectors can be used. If you should have any questions, please contact your supplier! 1) Only applies for collectors of the STI GmbH. 2) Please consider the size of the collector field! For collector fields of more than 30 m², please ask for the... -
Page 10: Filling Of The Solbox
Filling of the SolBox General Now fill the system with a suitable glycol-water mixture via the filling unit on the SolBox using a filling station. First determine the filling quantity using the table on page 22. Filling quantity = collector content + content pipes + content heat exchanger + content SolBox... -
Page 11: Initial Operation Of The Solbox
Initial operation of the SolBox Step 1: Filling of the installation Now connect a hose, which pumps the glycol- water mixture from the filling station into the system, to the connection (9). The ball valve at connection (9) is opened - see figure 4 // 10. - Page 12 Initial operation of the SolBox Step 2: Venting the system Now partially empty the system to obtain the necessary air volume in the system. Now connect a hose to the breather unit (3) - see figure 1. The hose leads back into the container of the filling station.
- Page 13 Initial operation of the SolBox Step 3: Partial emptying of the system First, determine the draining volume by using the overview below. Draining volume = collector content + volume collection pipe + expansion volume Volumes Depending on the system content of the solar...
- Page 14 Initial operation of the SolBox Step 4: Enhancement of the pressure To prevent a negative pressure within the system it is recommended to run the system with approx. 0.5 bar pressure (above system pressure from static height). Option I - Enhancement of the pressure with compressor - Connect a compressor with the venting unit (3) and open the ball valve - see illustration 1.
- Page 15 Initial operation of the SolBox Option II - Enhancement of the pressure through additional draining and filling For that, first determine the installation volume by the overview below. installation volume = filling vol. - draining vol. - In dependency to the installation volume now a defined volume is released from the system - see table 2.
-
Page 16: Fast Operation
Assemble the system and install all pipelines - see “Installation scheme” at page 7. Specification of draining volume Calculate or specify the draining volume - see “Initial operation of the SolBox” at page 11. Filling and venting Fill and vent the system completely through the filling station - see “Draining volume” at page 13. -
Page 17: Solbox Extension
SolBox extension Technical data SolBox extension Specifications Collector field size up to 50 m² (in connection with the SolBox) Measures diameter: 400 mm, height: 800 mm Weight ca. 23 kg (without liquid) // ca. 65 kg (with liquid) Capacity 40 l... - Page 18 After placing the fastening material, the SolBox will be hooked into the fixtation Dimension and type of the fastening material points and fixed there. have to be adjusted hereon and will be...
-
Page 19: Connection Of The Solbox With The Extension Module
Connection of the SolBox with the extension module Remove the drain plug at the venting unit of the SolBox and install it into the lateral outflow of the upper T-piece of the SolBox. Install the double connection 1/2“ into the T-piece of the venting unit of the SolBox. - Page 20 Connection of the SolBox with the extension module Remove the end cap at the bottom of the SolBox. Install the stainless steel corrugated pipe DN20 at the bottom of the SolBox and connect it with the bottom of the SolBox extension module.
-
Page 21: Capacities
27 l 31 l 11 collectors 22 l 24 l 26 l 25 l 30 l 34 l (probably extension SolBox) 12 collectors 24 l 26 l 29 l 27 l 33 l 37 l (probably extension SolBox) 13 collectors... - Page 22 Capacities Draining volume for pressure boosting Filling quantity Draining volume bis 20 l 10 l 21 l bis 40 l 20 l 41 l bis 60 l 30 l 61 l bis 80 l 40 l 81 l bis 100 l 50 l Table 2 Leitungsvolumen...
- Page 23 LTDC – Default settings of the SolBox Settings - Settings: 4.1. - TminS1 30°C 4.4. - dTon 6K 4.4. - dToff 4K 4.5. - Tmax tank 60°C 5.1.2. - System protection: Tmax collector 120°C - Special functions 6.2. - Pump menu 6.2.1.
-
Page 24: Initial Operation
Initial operation After the installation of the system components, the filling of the system with fluid, the venting, and the adjusting of the installation pressure, the installation is prepared for initial operation. For initial operation use the factory-adjuted solar controller. Please take further information for the process of initial operation from the attached manual of the controller. -
Page 25: Scheme Of The Installation
Scheme of the installation... -
Page 26: Notes
Notes... - Page 27 Notes Signature Service Engineer Company Stamp...
- Page 28 STI Solar-Technologie-International GmbH STI Solar-Technologie-International GmbH Seiferitzer Allee 14 Seiferitzer Allee 14 sti-solar.de D-08393 Meerane D-08393 Meerane sti-solar.de Tel 0049 3764 795610 Tel 0049 3764 795610 info@sti-solar.de info@sti-solar.de © Copyright 2019 Version 02/19...
