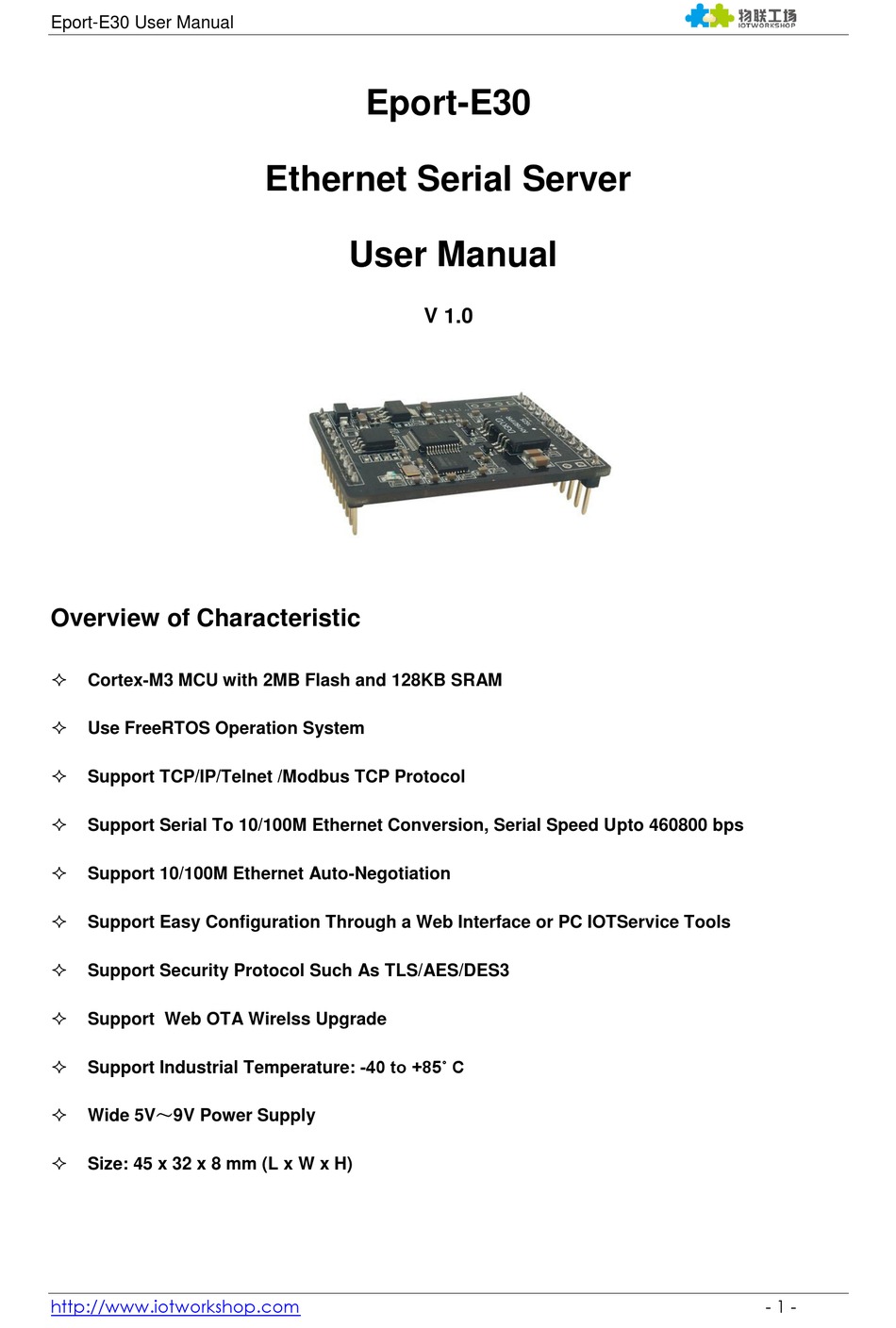

Eport-E30 User Manual
Overview of Characteristic
Cortex-M3 MCU with 2MB Flash and 128KB SRAM
Use FreeRTOS Operation System
Support TCP/IP/Telnet /Modbus TCP Protocol
Support Serial To 10/100M Ethernet Conversion, Serial Speed Upto 460800 bps
Support 10/100M Ethernet Auto-Negotiation
Support Easy Configuration Through a Web Interface or PC IOTService Tools
Support Security Protocol Such As TLS/AES/DES3
Support Web OTA Wirelss Upgrade
Support Industrial Temperature: -40 to +85˚ C
Wide 5V～9V Power Supply
Size: 45 x 32 x 8 mm (L x W x H)
http://www.iotworkshop.com
Eport-E30
Ethernet Serial Server
User Manual
V 1.0
- 1 -
Advertisement
Table of Contents
Related Manuals for Hi-flying Eport-E30
Summary of Contents for Hi-flying Eport-E30
- Page 1 Eport-E30 User Manual Eport-E30 Ethernet Serial Server User Manual V 1.0 Overview of Characteristic Cortex-M3 MCU with 2MB Flash and 128KB SRAM Use FreeRTOS Operation System Support TCP/IP/Telnet /Modbus TCP Protocol Support Serial To 10/100M Ethernet Conversion, Serial Speed Upto 460800 bps ...
-
Page 2: Table Of Contents
Eport-E30 User Manual TABLE OF CONTENTS TABLE OF CONTENTS TABLE OF CONTENTS TABLE OF CONTENTS ................2 LIST OF FIGURES ..........................3 LIST OF TABLES ..........................4 HISTORY ............................4 PRODUCT OVERVIEW ......................5 1.1. General Description ......................5 1.2. -
Page 3: List Of Figures
Eport-E30 User Manual LIST OF FIGURES Figure 1. Eport-E30 Appearance ........................8 Figure 2. Eport-E30 Pins Map ......................... 8 Figure 3. Eport-E30 Mechanical Dimension ....................11 Figure 4. Eport-E30 Product Number Defination ..................11 http://www.iotworkshop.com - 3 -... -
Page 4: List Of Tables
Eport-E30 User Manual LIST OF TABLES Table1. Eport-E30 Module Technical Specifications ................... 6 Table2. Eport-E30 Pins Definition ........................9 Table3. Absolute Maximum Ratings: ......................... 10 Table4. Power Supply & Power Consumption: ....................10 Table5. Ethernet Interface Definition ......................... 10 HISTORY Ed. -
Page 5: Product Overview
1. PRODUCT OVERVIEW 1.1. General Description The Eport-E30 is a fully self-contained integrated solution, which provide a serial interface to Ethernet connectivity to web enable any device. The Eport-E30 integrate TCP/IP controller, memory, 10/100M Ethernet transceiver, high-speed serial port and integrates a fully developed TCP/IP network stack and FreeRTOS OS.The Eport-E30 also includes an embedded web server used to remotely configure,... -
Page 6: Device Paremeters
Eport-E30 User Manual 1.3. Device Paremeters Table1. Eport-E30 Module Technical Specifications Item Parameters System Information Processor/Frequency Cortex-M3/96MHz Flash/SDRAM 2MB/128KB Operating System FreeRTOS Ethernet Port Port Number 1 RJ45 with LED Interface Standard 10/100 Base-T Auto-Negotiation Protection 2KV Isolation Transformer Integrated... -
Page 7: Key Application
Eport-E30 User Manual Power <400mW 1.4. Key Application The Eport-E30 device connects serial device to Ethernet networks using the TCP/IP protocol: Remote equipment monitoring Asset tracking and telemetry Security Application Industrial sensors and controls Medical devices ... -
Page 8: Hardware Introduction
Eport-E30 User Manual 2. HARDWARE INTRODUCTION The Eport-E30 unit is a complete solution for serial port device connecting to network. This powerful device supports a 10/100BASE-T Ethernet connection, a reliable and proven operating system stored in flash memory, an embedded web server, a full TCP/IP protocol stack,and standards-based (AES) encryption. -
Page 9: Eport-E30 Pins Definition
Eport-E30 User Manual Table2. Eport-E30 Pins Definition Description Net Name Signal Type Comments Ethernet TX+ Ethernet TX- Ethernet RX+ Ethernet RX- LED_ACTIVE ACTIVE Low Active UART1 U1_TX 3.3V TTL UART1 U1_RX 3.3V TTL 485_EN 485_EN Can be configured as 485 enable pin I，PU... -
Page 10: Electrical Characteristics
Table5. Ethernet Interface Definition Description Net Name Signal Type Transmit Data + Transmit Data - Receive Data + Receive Data - LED_Link LINK 2.4. Mechanical Size The dimensions of Eport-E30 are defined as following picture (mm): http://www.iotworkshop.com - 10 -... -
Page 11: Order Information
Eport-E30 User Manual Figure 3. Eport-E30 Mechanical Dimension 2.5. Order Information Base on customer detailed requirement, Eport-E30 provide different configuration version, Details as below: Figure 4. Eport-E30 Product Number Defination http://www.iotworkshop.com - 11 -... -
Page 12: Function
Eport-E30 User Manual 2.6. Function See Eport-E10 manual for detailed usage. This module hardware and software soluction is the same as E10. http://www.iotworkshop.com - 12 -...
